Neomounts by Newstar Newstar Desk Mount 1 screen (topfix clamp &grommet)
Neomounts- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
-
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025

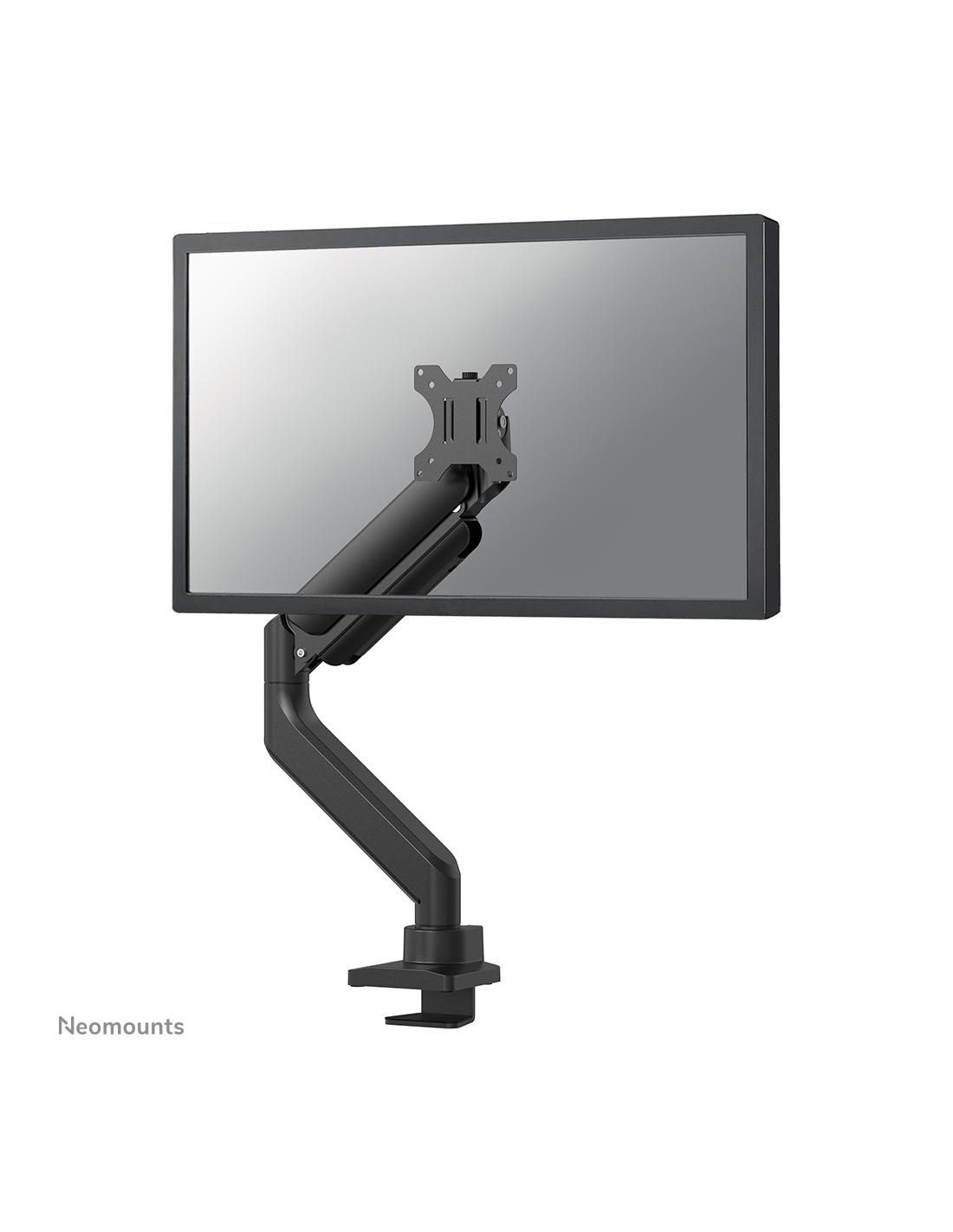

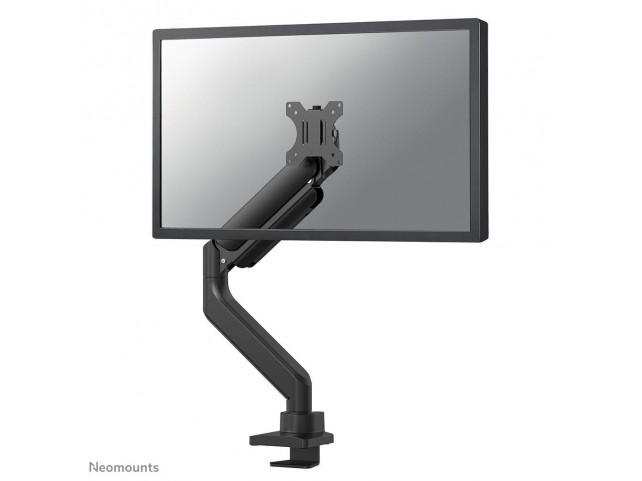

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.For wall installation, the AWL75-450BL wall adapter is optionally available.
Specifiche del prodotto
Design | |
Product colour | Black |
Ergonomics | |
Adjustable depth | Yes |
Angle of rotation | 360 ° |
Cable management | Yes |
Depth adjustment range | 0 - 514 mm |
Height adjustment | Yes |
Height adjustment range | 261 - 550 mm |
Height adjustment type | Gas spring |
Rotating | Yes |
Swivel angle | 180 ° |
Swivel angle range | -90 - 90 ° |
Tilt adjustment | Yes |
Tilt angle range | -35 - 45 ° |
Legal Information | |
UNSPSC Code | 43212002 |
Logistics data | |
Harmonized System (HS) code | 7326909890 |
Master (outer) case height | 58 cm |
Master (outer) case length | 27,5 cm |
Master (outer) case net weight | 18,4 kg |
Master (outer) case width | 46 cm |
Products per master (outer) case | 4 pz |
Products per pallet (EU) | 64 pz |
Mounting | |
Distance to the wall (max) | 56,8 cm |
Distance to the wall (min) | 10,8 cm |
Maximum screen size | 42 " |
Maximum VESA mount | 100 x 100 mm |
Maximum weight capacity | 15 kg |
Minimum screen size | 17 " |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Number of displays supported | 1 |
Panel mounting interface | 100 x 100 |
Package dimensions | |
Depth (package,cm) | 12,7 cm |
Gross Weight (Package, kg) | 5,41 kg |
Height (package,cm) | 44,5 cm |
Width (package,cm) | 28 cm |
Packaging content | |
Mounting kit | Yes |
Product dimensions | |
Net Weight (Product, kg) | 5,4 kg |
Product Depth | 12,7 cm |
Product Height | 44,5 cm |
Product Width | 28 cm |
Technical details | |
Doesn't contain | Plastic |
Warranty period | 5 anno/i |
Vendor information | |
Brand Name | Neomounts by Newstar |
Weight & dimensions | |
Package net weight | 5,4 kg |
