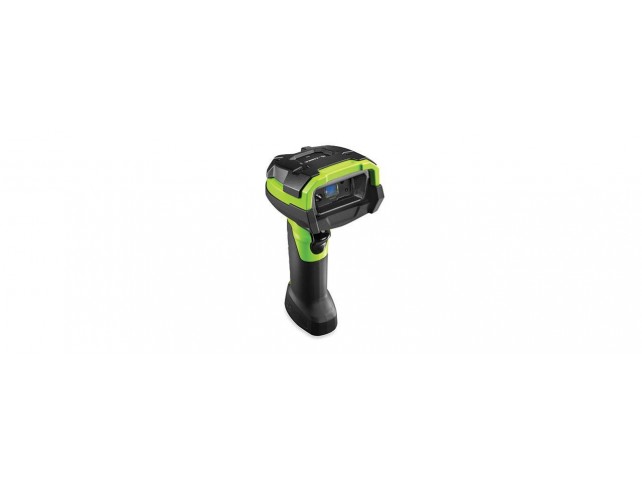

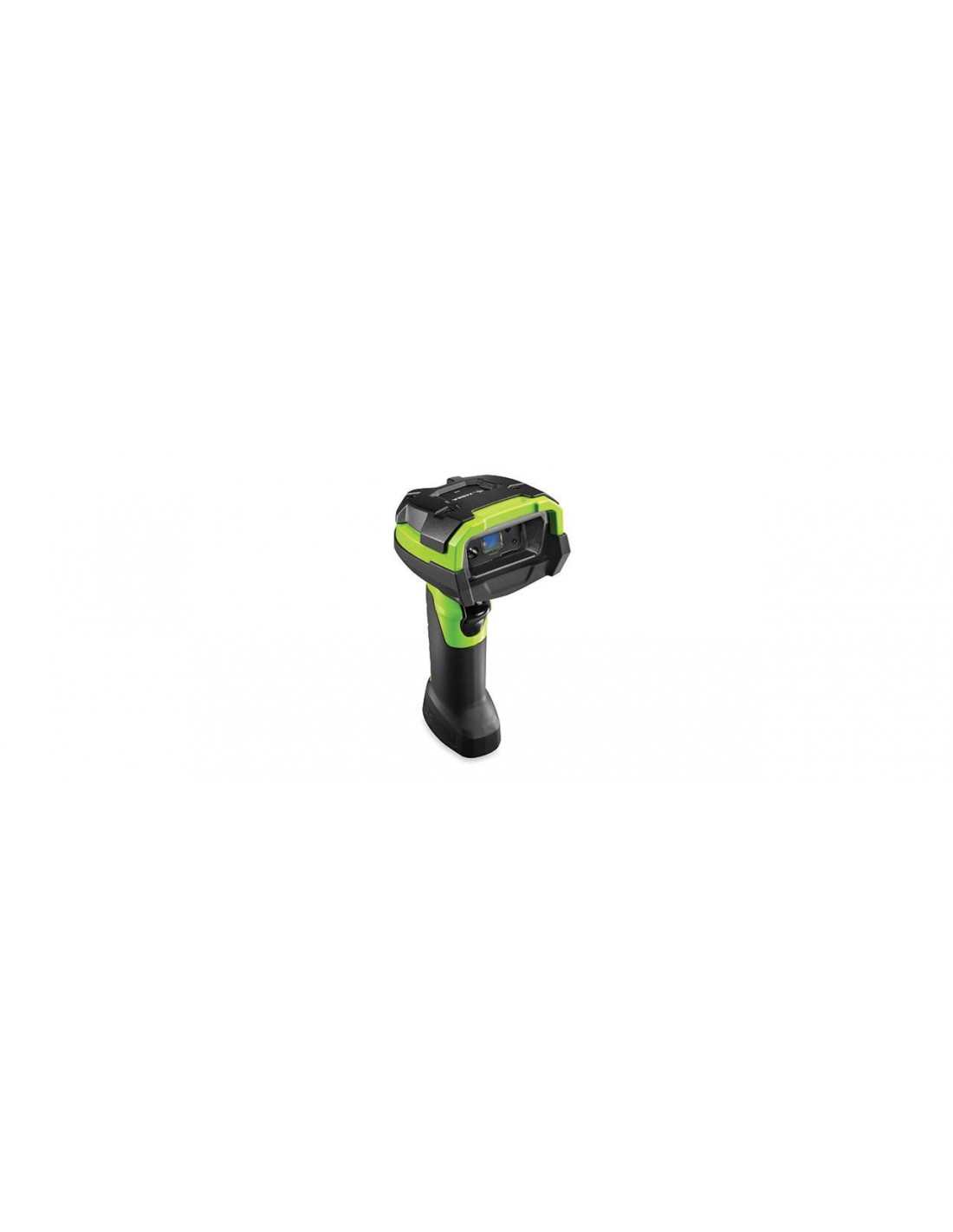

Zebra DS3678-ER RUGGED GREEN,VIBRATION,NO LINE CORD
Zebra- Data di consegna prevista:
-
Corriere Standard - Acquista entro e ricevilo Martedì 29 Aprile, 2025
DS3678-ER RUGGED GREEN,VIBRATION,NO LINE CORD KIT: SCANNER, USB CABLE, STANDARD CRADLE, PSU,DC CABLE
DS3678-ER RUGGED GREEN VIBRATION MOTOR STANDARD CRADLE USB NO LINE CORD KIT: DS3678-ER2F003VZWW SCANNER, CBA-U42-S07PAR SHIELDED USB CABLE SUPPORTS 12V P/S, STB3678-C100F3WW CRADLE, PWR-BGA12V50W0WW P/S, CBL-DC-451A1-01 DC CBLDS3678-ER, 1D/2D Imager, 655nm laser, 1280 x 800, One 660nm LED, Bluetooth 4.0 (LE)_________________________________________________UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D/2D BARCODE CAPTUREAs a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world?s toughest environments ? the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility ? workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.SUPERIOR PERFORMANCEYou get the ultimate in scanning performance ? period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem ? this intelligent scanner can handle it all.ULTRA-RUGGED DESIGNThe warehouse and manufacturing plant floor is as tough as its gets. That?s why we created a new product category ? the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.UNRIVALED MANAGEABILITYWith our complimentary industry-best tools, managing these scanners couldn?t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Specifiche del prodotto
Design | |
International Protection (IP) code | IP67 |
LED indicators | Yes |
Product colour | Black, Green |
Protection features | Dust resistant, Shock resistant, Water resistant |
RoHS compliance | Yes |
Logistics data | |
Harmonized System (HS) code | 84716070 |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | -20 - 50 °C |
Storage temperature (T-T) | -40 - 70 °C |
Package dimensions (verified) | |
Depth Verified | 21,7 cm |
Gross Weight Verified | 1,636 kg |
Height Verified | 17,4 cm |
Width Verified | 26,5 cm |
Performance | |
International Protection (IP) code | IP67 |
LED indicators | Yes |
Product colour | Black, Green |
Programming function | Yes |
Protection features | Dust resistant, Shock resistant, Water resistant |
RoHS compliance | Yes |
Ports & interfaces | |
Bluetooth Low Energy (BLE) | Yes |
Bluetooth version | 4.0 |
Connectivity technology | Wired & Wireless |
Ethernet LAN | Yes |
Standard interfaces | RS-232, USB, Keyboard wedge |
Wireless range | 100 m |
Power | |
Battery capacity | 3100 mAh |
Battery technology | Lithium-Ion (Li-Ion) |
Number of reads per charge | 70000 |
Power source type | Battery |
Product dimensions | |
Net Weight (Product, kg) | 0,436 kg |
Product Depth | 7,6 cm |
Product Height | 18,5 cm |
Product Width | 14,2 cm |
Scanning | |
2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
Optical sensor resolution | 1280 Pixels |
Pitch reading angle | -65 - 65 ° |
Scanner type | 1D/2D |
Sensor type | Laser |
Tilt reading angle | -65 - 65 ° |
Type | Handheld bar code reader |
Wavelength | 655 nm |
Yaw reading angle | -45 - 45 ° |
Technical details | |
Harmonized System (HS) code | 84716070 |
Sustainability certificates | RoHS |
Vendor information | |
Brand Name | Zebra |
Warranty | 3 Anno(i) |
Compatibilità
Zebra | |
Barcode Scanners | DS3678 Kit |
NB: La Lista potrebbe non comprendere tutti i modelli compatibili, per maggiori informazioni è possibile contattare il nostro customer care.
