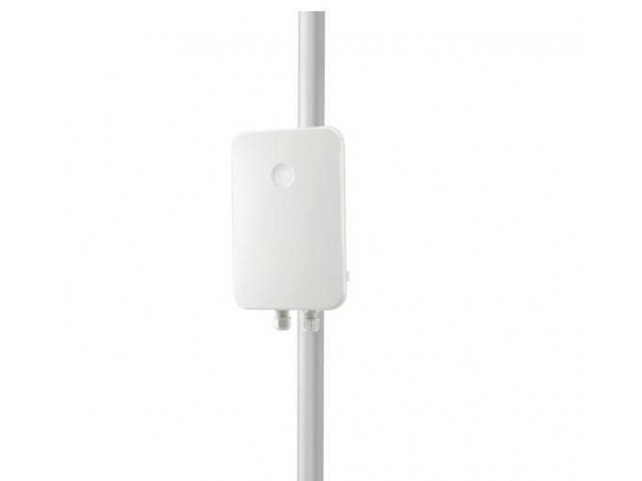

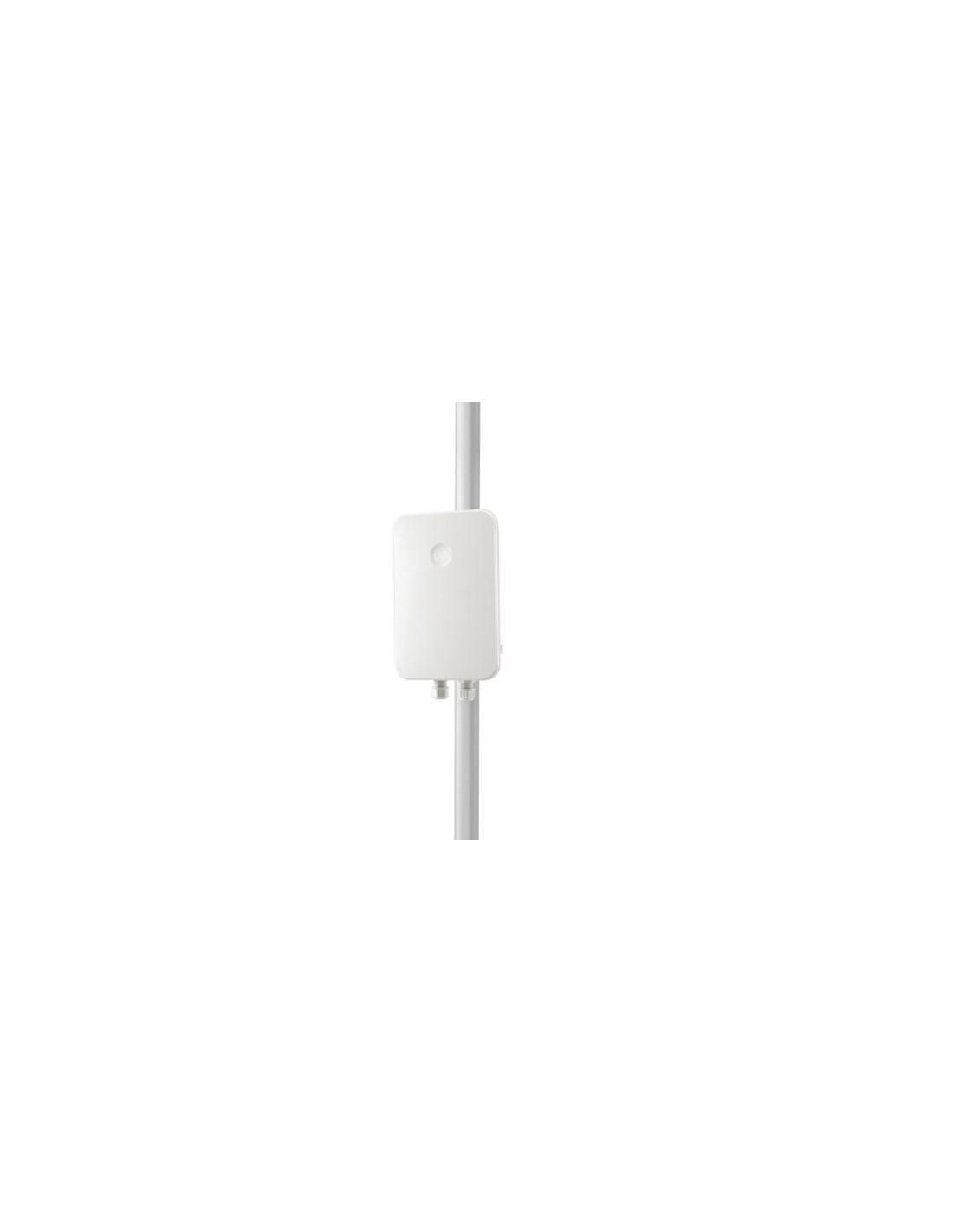

Cambium Networks cnPilot e700 Outdoor (EU) 802.11ac wave 2, 2x2/4x4, AP
Cambium Networks
DS1_PL-E700X00A-EU
Immediatamente Disponibile
1.301,01 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- 802.11 a/b/g/n/ac Wave 2
- Omni-directional antenna coverage
- IP67 rated housing, UV protection, -40ºC to 60ºC
- 5 GHz (4x4), 2.4 GHz (2x2)
- 5W power out on GE2
Specifiche del prodotto
| Antenna | |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC, CE, IC, UL, ETSI, RoHS, WEEE |
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
| Placement | Pole, Wall |
| Product colour | White |
| Reset button | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Channel bandwidth | 80 MHz |
| Cyclic Delay Diversity (CDD) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Ethernet LAN data rates | 10, 100, 1000 |
| Fast roaming | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Maximum data transfer rate | 2133 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Spread spectrum method | DSSS, OFDM |
| Transmitting power | 28 dBmW |
| Wi-Fi roaming | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43222640 |
| US ECCN Code | 5A992.c |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 65 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 2,7 kg |
| Packaging data | |
| Number of products included | 1 pz |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| Power | |
| Power consumption (max) | 24,6 Watt |
| Power consumption (typical) | 18 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 2,5 kg |
| Product Depth | 6,6 cm |
| Product Height | 31,5 cm |
| Product Width | 21,5 cm |
| Protocols | |
| DHCP server | Yes |
| Security | |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | AES, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, SNMP, SNMPv3, WPA-TKIP, WPA2, WPA2-Enterprise |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 3 Anno(i) |
