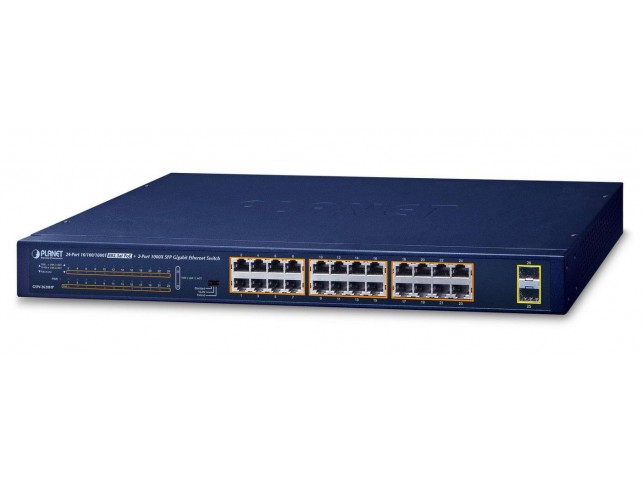

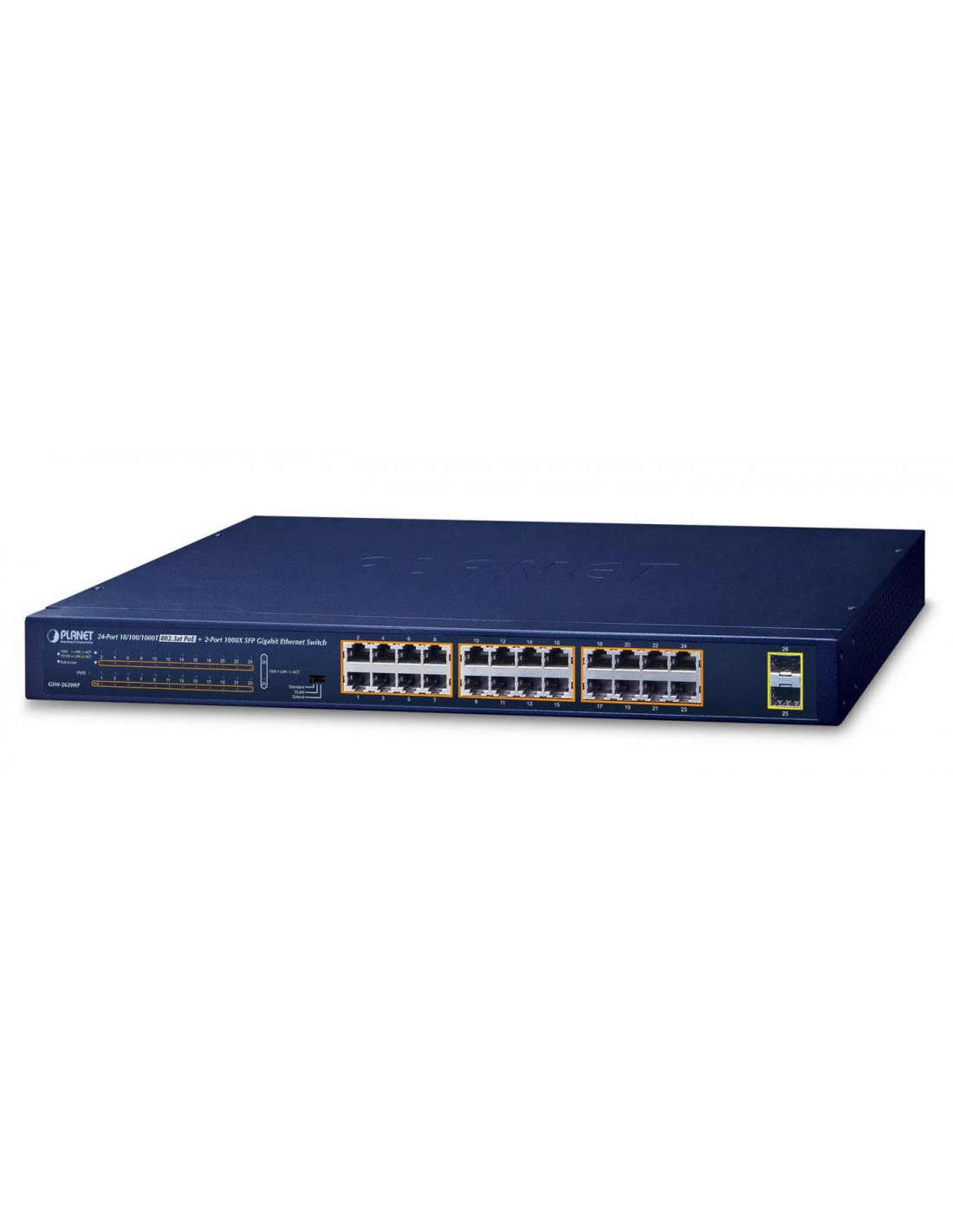

19" 24-Port 10/100/1000T 802.3at POE + 2-Port...
19" 24-Port 10/100/1000T 802.3at POE + 2-Port 1000X

19" 24-Port 10/100/1000T 802.3at POE + 2-Port 1000X

Planet
DS1_GSW-2620HP
Immediatamente Disponibile
358,25 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • Physical Port
  • 24-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
  • 2 1000BASE-X mini-GBIC/SFP slots
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 24 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30.8 watts for each PoE port
  • Each port supports 52V DC power to PoE powered device
  • 240-watt PoE budget
  • Auto detects powered device (PD)

Specifiche del prodotto

Data transmission
MAC address table8000 voci
Switching capacity52 Gbit/s
Throughput38,7 Mpps
Design
Form factor1U
Housing materialMetal
LED indicatorsYes
Product colourBlue
SafetyFCC Part 15 Class A, CE
StackableNo
Legal Information
UNSPSC Code43222612
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeUnmanaged
Network
10G supportNo
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-10 - 70 °C
Package dimensions (verified)
Depth Verified57 cm
Gross Weight Verified3,7 kg
Height Verified10 cm
Width Verified30 cm
Performance
Harmonized System (HS) code85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity2
SFP module slots quantity2
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current5 A
Output current4 A
Power consumption (max)275 Watt
Power consumption (typical)220 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) power per port30 Watt
Total Power over Ethernet (PoE) budget240 Watt
Product dimensions
Net Weight (Product, kg)2,78 kg
Product Depth20,7 cm
Product Height4,5 cm
Product Width44,5 cm
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
