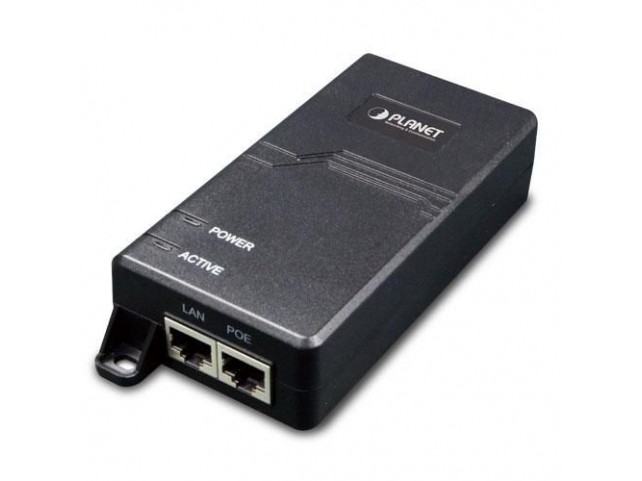

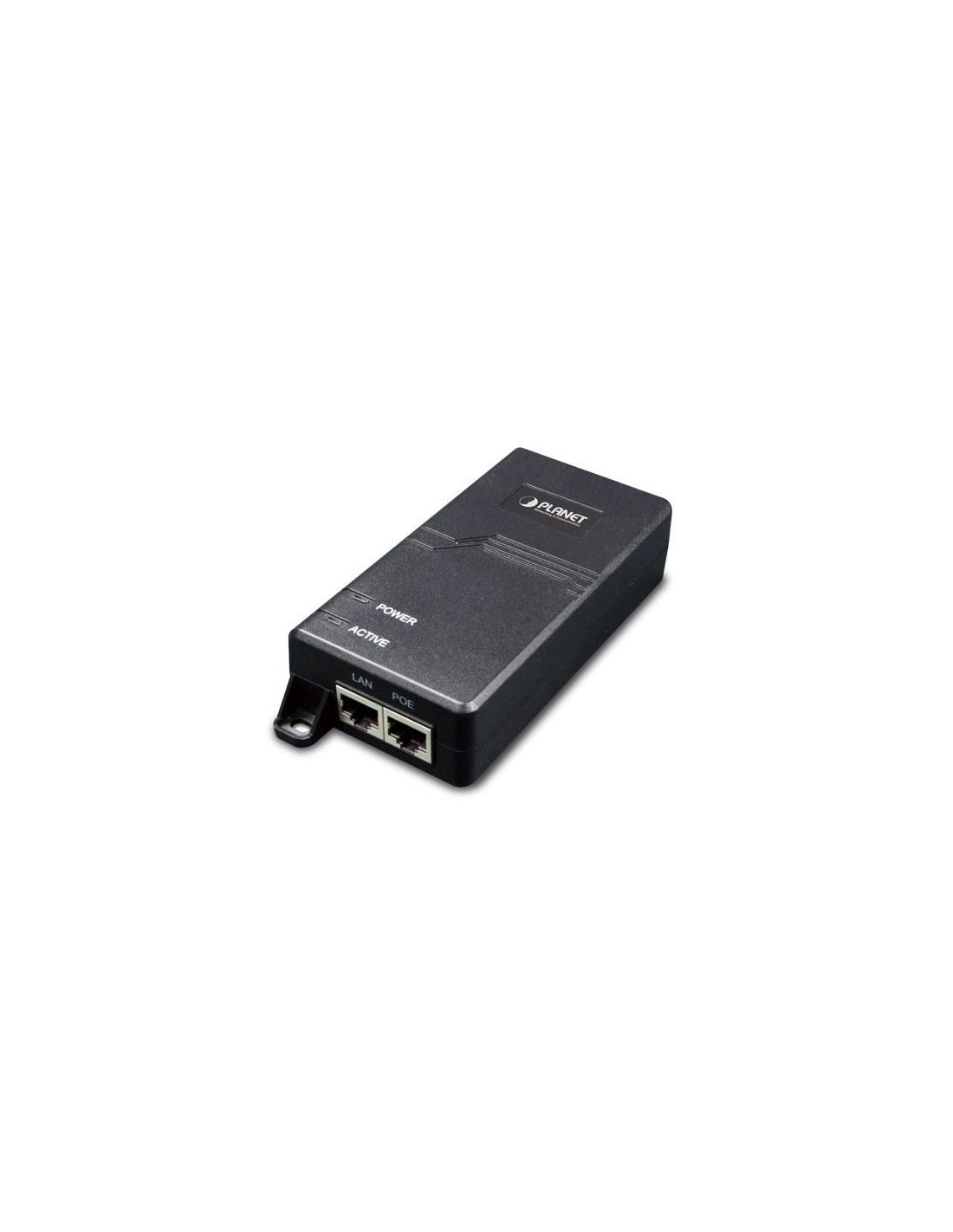

Single Port 10/100/1000Mbps Ultra POE Injector (60 Watts)

Single Port 10/100/1000Mbps Ultra POE Injector (60 Watts)

Planet
DS1_POE-172
Immediatamente Disponibile
114,74 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • Interface
  • 2 x RJ45 interfaces
  • 1-port 10/100/1000Mbps Data + Power output
  • 1-port 10/100/1000Mbps Data input
  • 1 x AC 100-240V input power socket
  • Power over Ethernet
  • Ultra Power over Ethernet PSE
  • Up to 60 watts of power on 4-pair UTP
  • Backward compatible with IEEE 802.3at/af PD device
  • Auto-detection of PoE IEEE 802.3at/af equipment and devices to check whether there?s any damage done via incorrect installation

Specifiche del prodotto

Design
CertificationFCC Part 15 Class B, CE
LED indicatorsPoE, Power
Product colourBlack
Rack mountingNo
Features
CertificationFCC Part 15 Class B, CE
LED indicatorsPoE, Power
Maximum operating distance100 m
Plug and PlayYes
Product colourBlack
Legal Information
EU ECCN CodeN/A
UNSPSC Code43222612
US ECCN Code5A992
Network
10G supportNo
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10, 100, 1000
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)Yes
Operational conditions
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-10 - 70 °F
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-10 - 70 °C
Other features
Ethernet interface typeGigabit Ethernet
Package dimensions (verified)
Depth Verified10,2 cm
Gross Weight Verified0,414 kg
Height Verified9,1 cm
Width Verified16,1 cm
Performance
Harmonized System (HS) code85176990
Plug and PlayYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Ethernet LAN (RJ-45) ports2
Power
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
Power consumption (max)60 Watt
Power over Ethernet (PoE) voltage56 V
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage56 V
Product dimensions
Net Weight (Product, kg)0,24 kg
Product Depth6,25 cm
Product Height3,1 cm
Product Width11,5 cm
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
Weight & dimensions
Dimensions (WxDxH)115 x 62.5 x 31 mm
