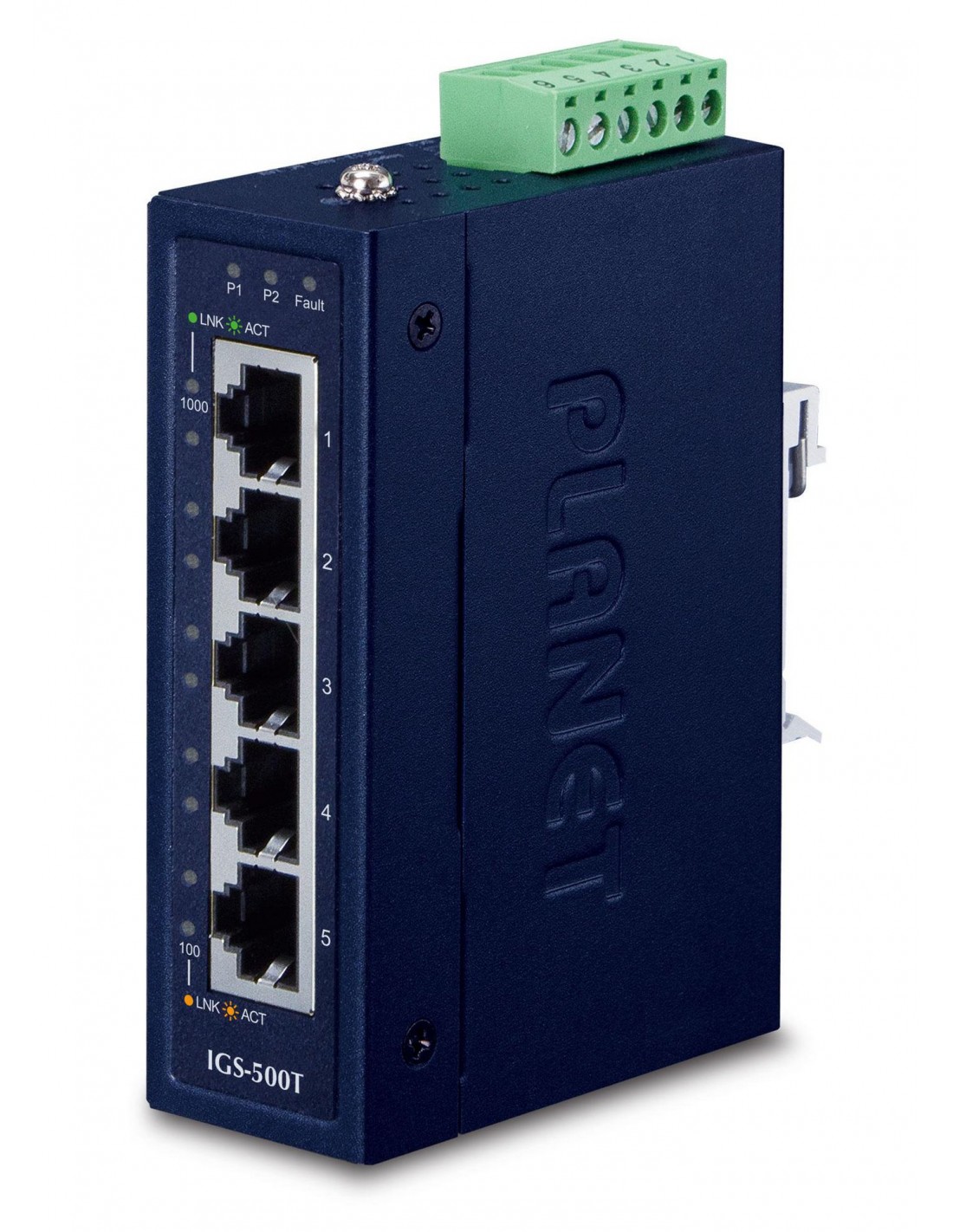

IP30 Compact size 5-Port 10/100/1000T Gigabit Ethernet
Planet
DS1_IGS-500T
Immediatamente Disponibile
146,45 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Physical Port
- 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- 9K jumbo packet size
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 voci |
| Packet buffer memory | 1 MB |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| Throughput | 7,4 Mpps |
| Design | |
| Certification | FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Blue |
| Wall mountable | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management features | |
| Switch layer | L2+ |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Operational conditions | |
| Heat dissipation | 12,35 BTU/h |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 75 °C |
| Package dimensions (verified) | |
| Depth Verified | 14,9 cm |
| Gross Weight Verified | 0,388 kg |
| Height Verified | 4,9 cm |
| Width Verified | 20,9 cm |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power | |
| DC input voltage | 24 V |
| Power consumption (typical) | 3,6 Watt |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 0,28 kg |
| Product Depth | 7 cm |
| Product Height | 10,4 cm |
| Product Width | 3 cm |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 5 Anno(i) |
