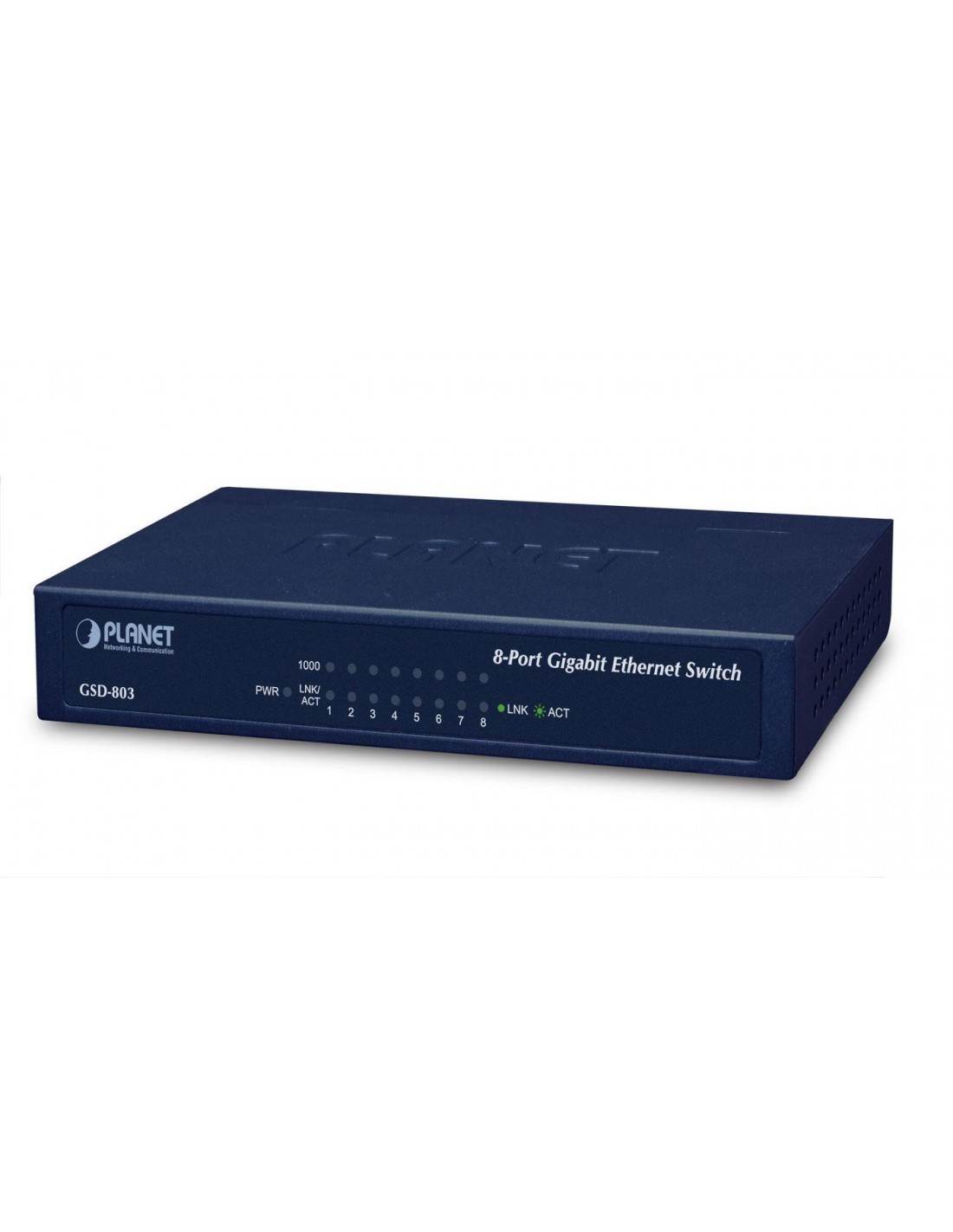

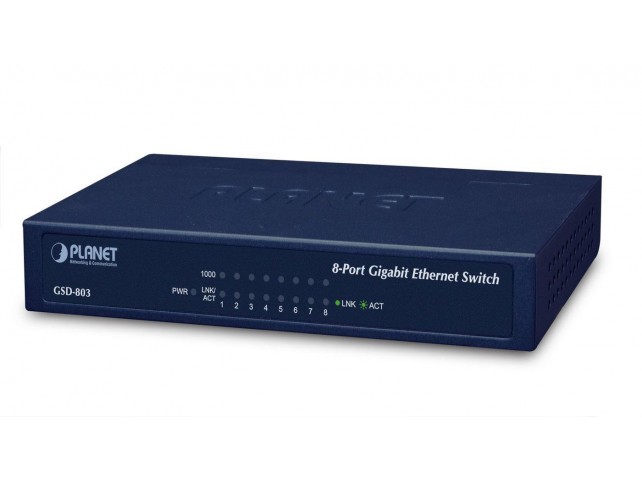

8-P 10/100/1000Mbps Gigabit Ethernet Switch...
8-P 10/100/1000Mbps Gigabit Ethernet Switch (External

8-P 10/100/1000Mbps Gigabit Ethernet Switch (External

Planet
DS1_GSD-803
Immediatamente Disponibile
54,35 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • RJ-45 Interface
  • 8 10/100/1000Mbps Gigabit Ethernet ports
  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • Supports auto MDI/MDI-X function
  • Switching
  • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 4K absolute MAC addresses
  • 9K Jumbo packet size

Specifiche del prodotto

Data transmission
Jumbo frames9000
Jumbo frames supportYes
MAC address table4000 voci
Store-and-forwardYes
Switching capacity16 Gbit/s
Throughput11,9 Mpps
Design
CertificationFCC Part 15 Class B, CE
LED indicatorsActivity, Link, Power
Product colourBlue
Wall mountableYes
Legal Information
EU ECCN CodeN/A
UNSPSC Code43222612
US ECCN Code5A992
Logistics data
Harmonized System (HS) code85176990
Network
10G supportNo
Auto MDI/MDI-XYes
Flow control supportYes
Full duplexYes
Half duplexYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions
Heat dissipation16 BTU/h
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-10 - 70 °C
Package dimensions (verified)
Depth Verified14,8 cm
Gross Weight Verified0,55 kg
Height Verified8,7 cm
Width Verified20,3 cm
Performance
Harmonized System (HS) code85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack
Power
AC input voltage5 V
DC input voltage5 V
Input current1 A
Power consumption (typical)3,4 Watt
Power supply includedNo
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Product dimensions
Net Weight (Product, kg)0,36 kg
Product Depth8,6 cm
Product Height2,6 cm
Product Width15,5 cm
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
