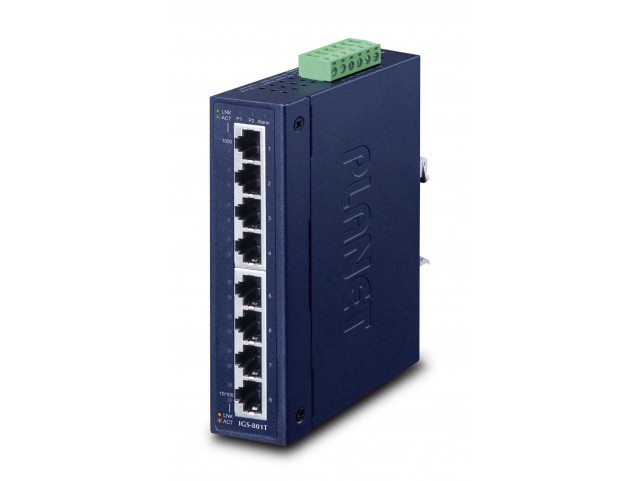

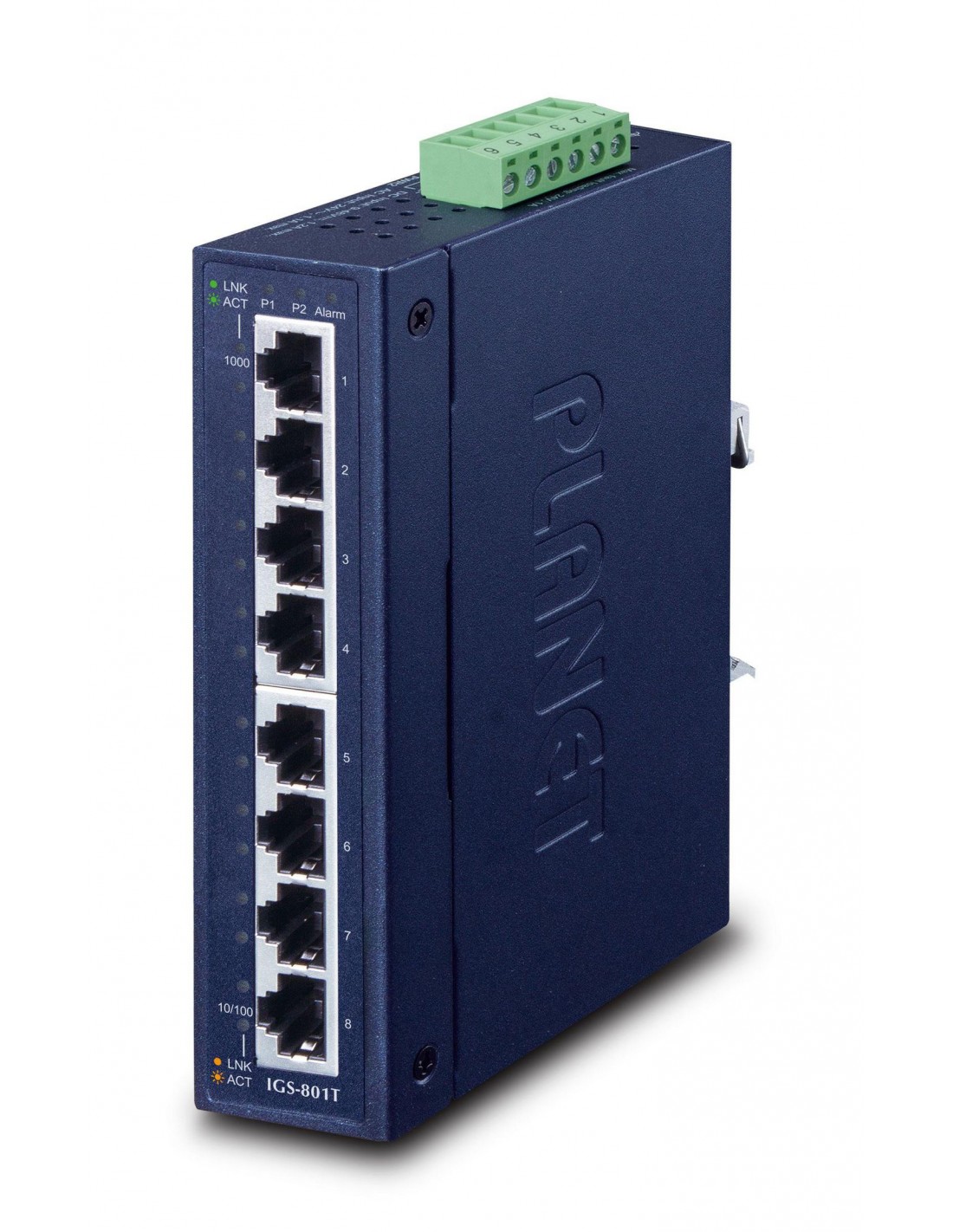

IP30 Slim type 8-P Industrial Gigabit Ethernet Switch (-40
Planet
DS1_IGS-801T
Immediatamente Disponibile
200,84 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Physical Port
- ?8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
- Layer 2 Features
- ?Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- ?Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
- ?High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- ?Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- ?4K absolute MAC address and 16Gbps switching fabric support
- ?1.5Mbits SRAM packet buffer
- ?9K jumbo packet size support
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 voci |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 11,9 Mpps |
| Design | |
| Certification | FCC, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| Product colour | Blue |
| Rack mounting | No |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43222612 |
| US ECCN Code | 5A992 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Operational conditions | |
| Heat dissipation | 23 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 75 °C |
| Other features | |
| Terminal block port | Yes |
| Package dimensions (verified) | |
| Depth Verified | 15,2 cm |
| Gross Weight Verified | 0,596 kg |
| Height Verified | 4,7 cm |
| Width Verified | 20,9 cm |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power | |
| Power consumption (typical) | 6,72 Watt |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 0,5 kg |
| Product Depth | 8,7 cm |
| Product Height | 13,5 cm |
| Product Width | 3,2 cm |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 5 Anno(i) |
