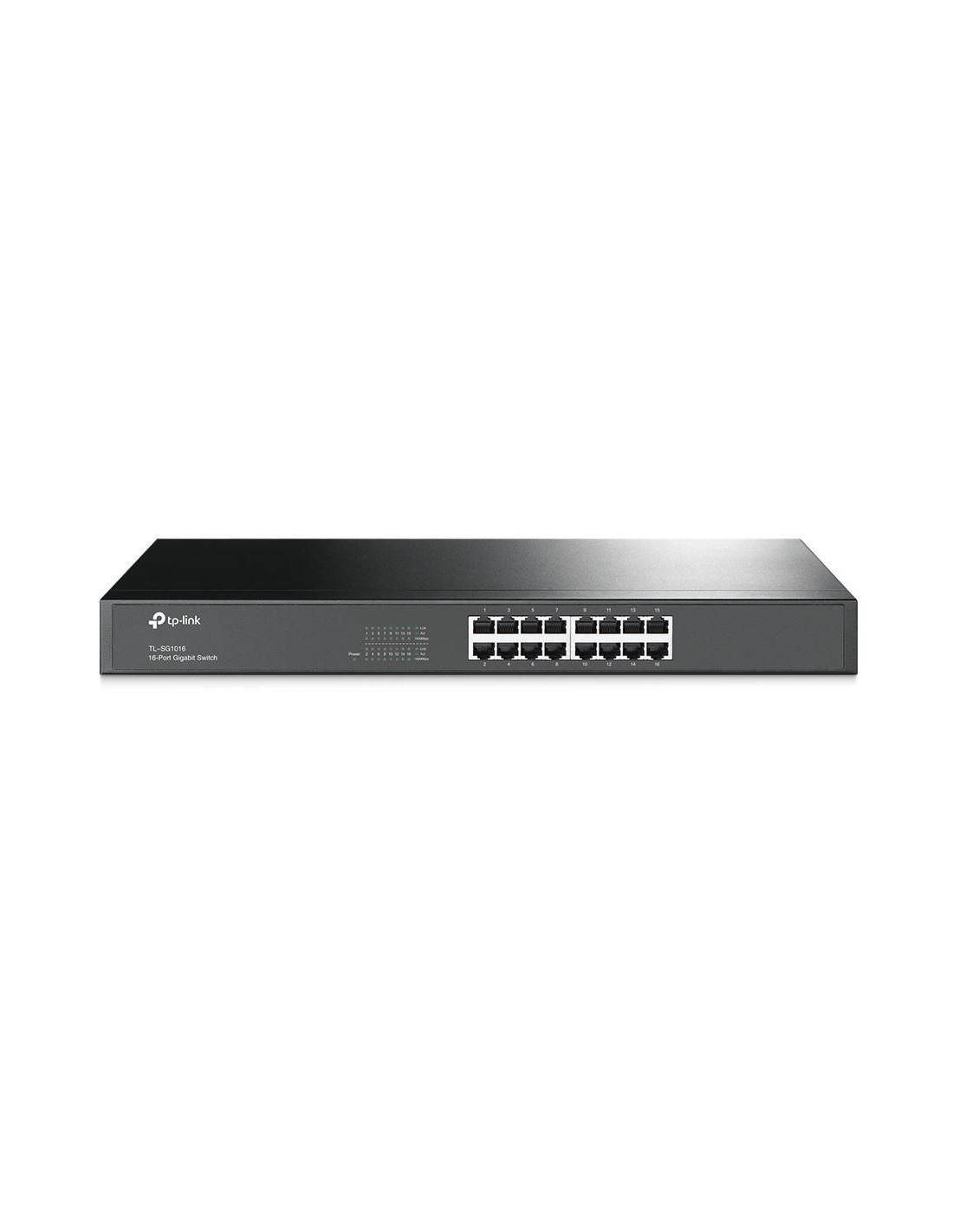

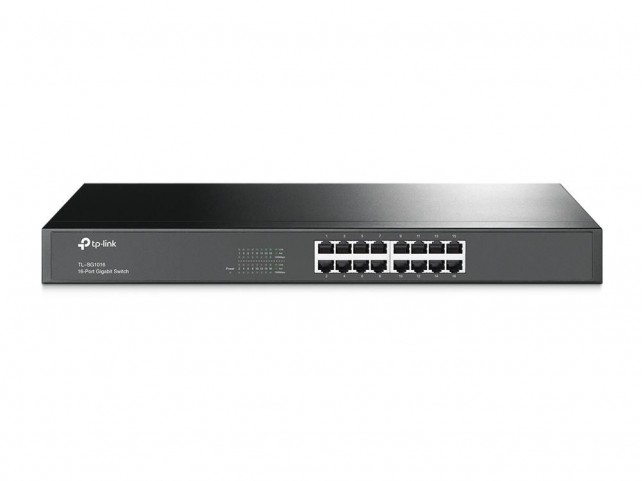

TP-Link 16 port Gigabit Switch,1U Rack Steel
Omada
DS1_TL-SG1016
Immediatamente Disponibile
147,45 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
16 10/100/1000Mbps RJ45 ports
What This Product DoesThe TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.TP-Link Green TechnologyThis new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU?S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It?s a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
- 16 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Specifiche del prodotto
| Data transmission | |
| Forwarding rate | 23,8 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 voci |
| Maximum data transfer rate | 32 Gbit/s |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| Design | |
| Certification | FCC, CE, RoHS |
| Form factor | 1U |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | No |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| User operation log | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10, 100, 480, 800, 1000 |
| Flow control support | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 35,6 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Connectivity LEDs | Y |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 440 x 180 x 44 mm |
| Input frequency | 50/60 Hz |
| Power requirements | AC 100 - 240 V |
| Package dimensions (verified) | |
| Depth Verified | 54 cm |
| Gross Weight Verified | 2,384 kg |
| Height Verified | 9 cm |
| Width Verified | 25 cm |
| Packaging data | |
| Cables included | AC |
| Rack mount kit | Yes |
| Performance | |
| Fanless | Yes |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 10,44 Watt |
| Power consumption (typical) | 9,26 Watt |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 2,284 kg |
| Product Depth | 18 cm |
| Product Height | 4,4 cm |
| Product Width | 44 cm |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS |
| SSH/SSL support | Yes |
| Vendor information | |
| Brand Name | TP-Link |
| Homepage | |
| Warranty | 3 Anno(i) |
