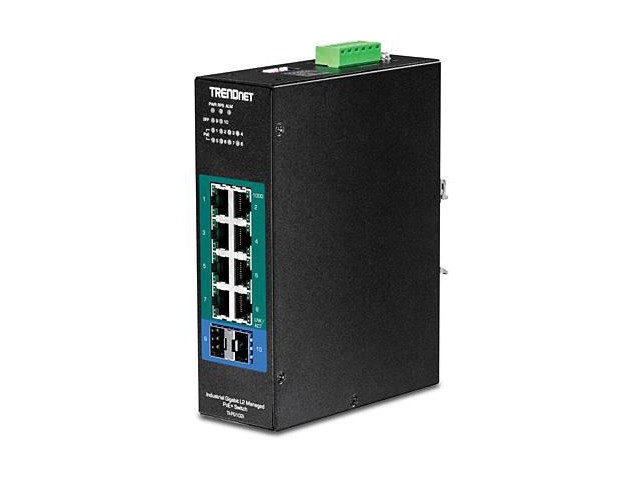

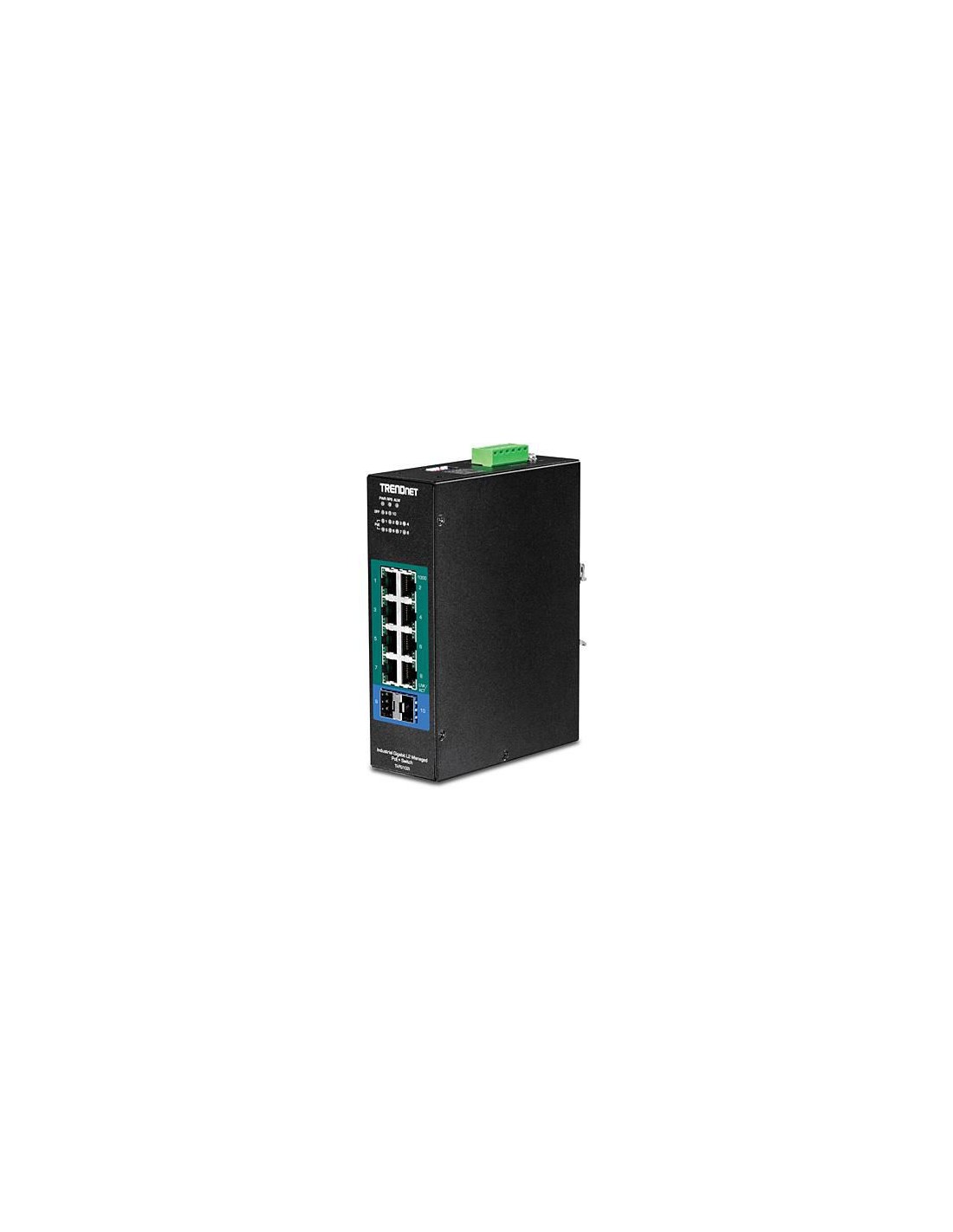

TRENDnet 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch
TRENDnet
DS1_TI-PG102I
Immediatamente Disponibile
700,16 €
Tasse incluse
- Data di consegna prevista:
-
Corriere Standard - Acquista entro e ricevilo Mercoledì 7 Maggio, 2025
- 8 x Gigabit PoE+ ports
- 2 x SFP slots
- Supports 100/1000Base-FX fiber SFP modules
- PoE power budget: 240W@48VDC or 124W@24VDC
- PoE alive check restarts unresponsive PoE powered devices
- 20Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-rail mounting bracket
- Operating temperature range of -40° ? 75° C (-40° ? 167° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
Specifiche del prodotto
| Data transmission | |
| Forwarding rate | 14,88 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 voci |
| Packet buffer memory | 128 MB |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
| Design | |
| Certification | CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6) |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Black |
| Reset button | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43222612 |
| US ECCN Code | 5A991 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| ARP inspection | Yes |
| MIB support | MIB II RFC 1213, MIB RFC 1493, RMON (1,2,3,9) RFC 2819 RFC 1757 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Network | |
| 10G support | No |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN, MAC address-based VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Package dimensions | |
| Depth (package,cm) | 24 cm |
| Gross Weight (Package, kg) | 10 kg |
| Height (package,cm) | 7 cm |
| Width (package,cm) | 19 cm |
| Packaging data | |
| DIN rail included | Yes |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 562234 Hour |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| DC input voltage | 24 - 57 V |
| Power consumption (max) | 253 Watt |
| Surge protection | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Product dimensions | |
| Net Weight (Product, kg) | 9,9 kg |
| Product Depth | 12 cm |
| Product Height | 5 cm |
| Product Width | 16 cm |
| Security | |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP server, DHCP relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SNMP, SNMPv3, SSH |
| Vendor information | |
| Brand Name | TRENDnet |
| Warranty | 1 Anno(i) |
