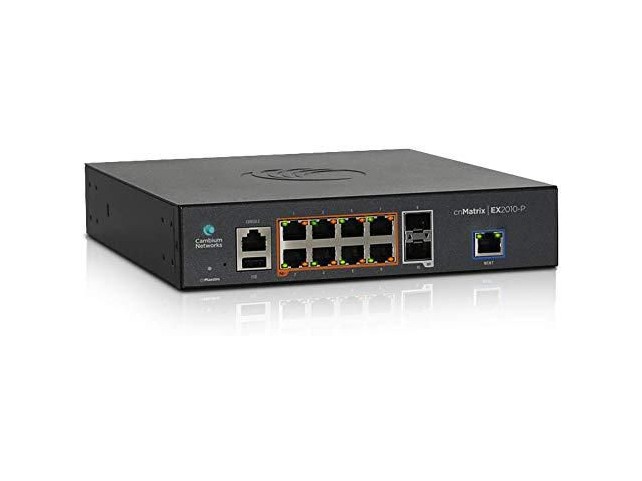

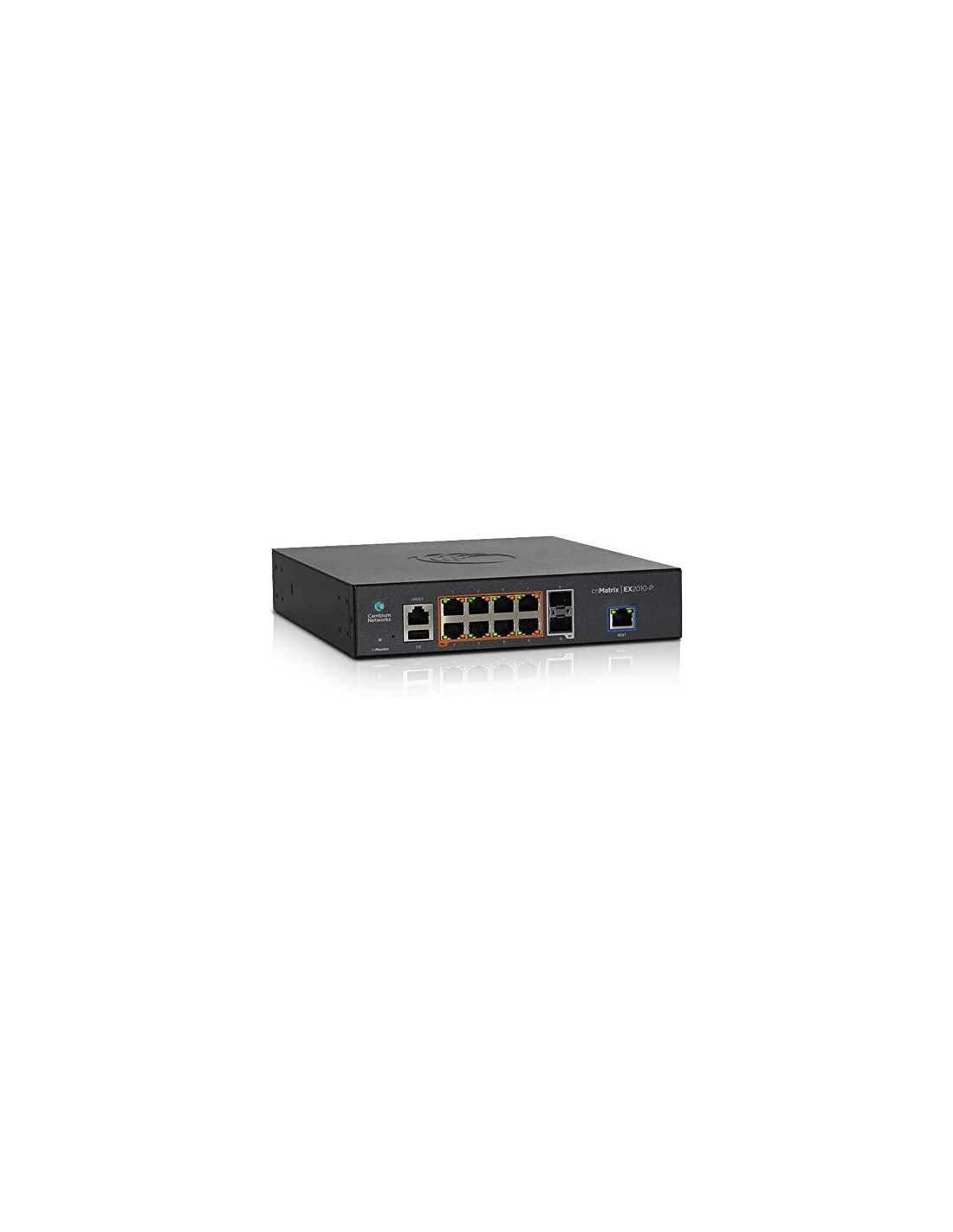

Cambium Networks cnMatrix EX2010-P Intelligent Ethernt PoE Switch
Cambium Networks
DS1_MX-EX2010PXA-E
Immediatamente Disponibile
1.201,36 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 voci |
| Number of queues | 8 |
| Number of static routes | 64 |
| Static route | Yes |
| Switching capacity | 20 Gbit/s |
| Throughput | 120 Mpps |
| Design | |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |
| Legal Information | |
| EU ECCN Code | 5A002 |
| UNSPSC Code | 43222612 |
| US ECCN Code | 5A002 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 55 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 2 kg |
| Performance | |
| Built-in processor | Yes |
| Fanless | Yes |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 338917 Hour |
| Processor frequency | 800 MHz |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RS-232 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 10,54 Watt |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 Watt |
| Power over Ethernet (PoE) voltage | 54 V |
| Total Power over Ethernet (PoE) budget | 100 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 1,8 kg |
| Product Depth | 25 cm |
| Product Height | 4,4 cm |
| Product Width | 21 cm |
| Protocols | |
| Management protocols | SNMP v1/v2/v3, Telnet |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Security algorithms | HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 5 Anno(i) |
