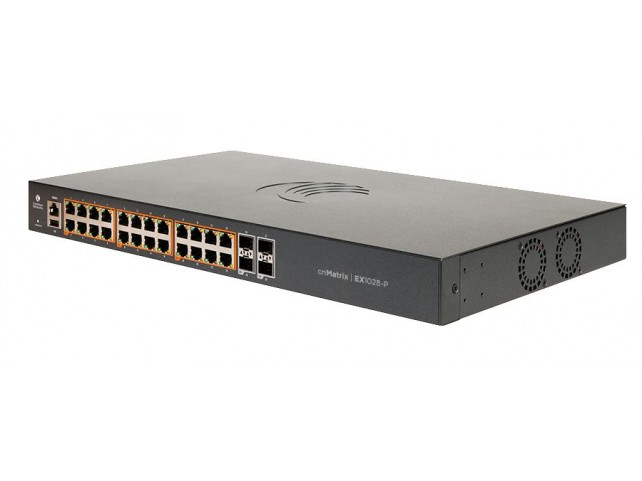

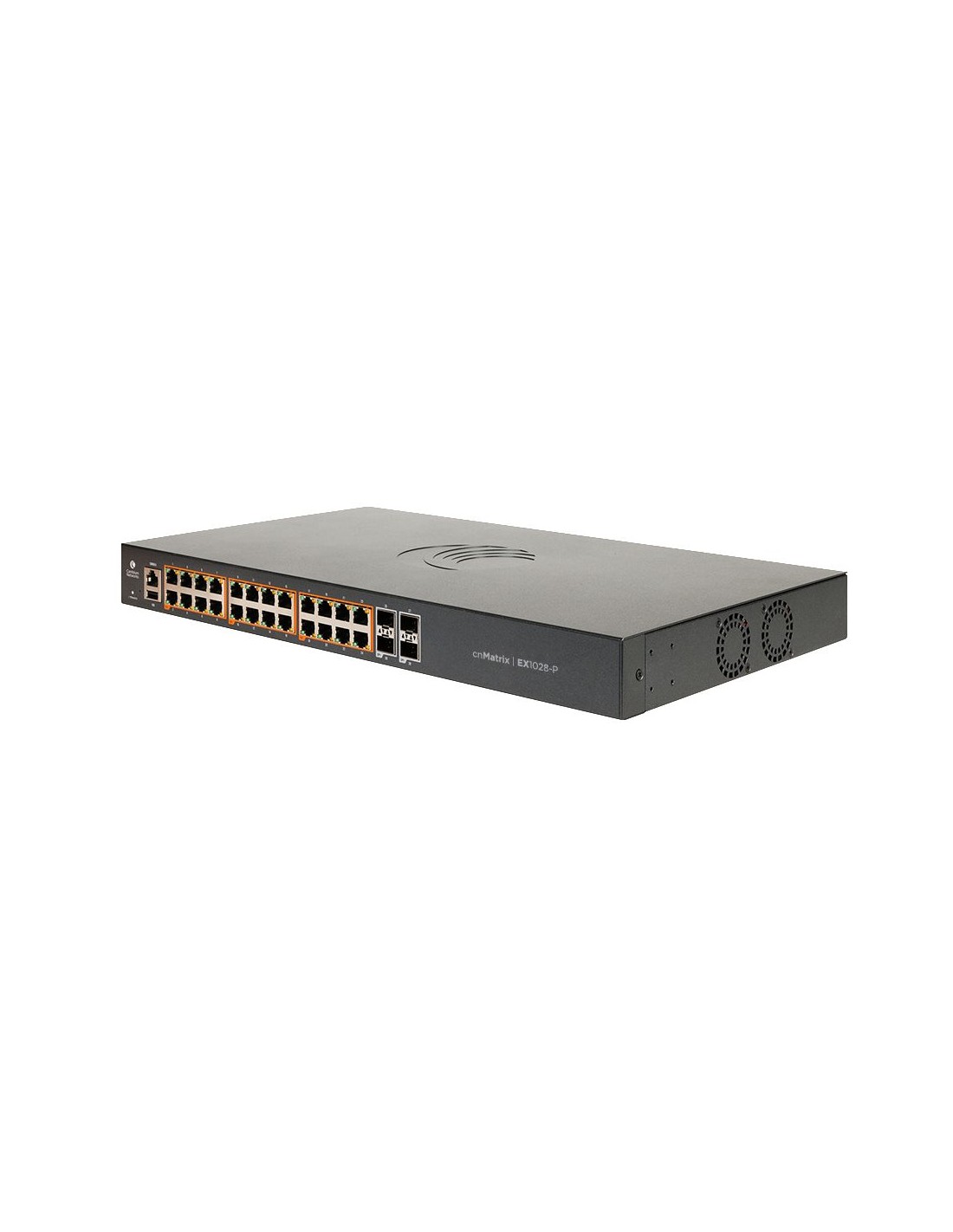

Cambium Networks cnMatrix EX1028, Intelligent Ethernet Switch, 24 1G and 4
Cambium Networks
DS1_MX-EX1028XXA-E
Immediatamente Disponibile
584,51 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 voci |
| Static route | Yes |
| Throughput | 56 Gbit/s |
| Design | |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management features | |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10, 1000, 100 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 55 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 3 kg |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 19,5 Watt |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 2 kg |
| Product Depth | 4,4 cm |
| Product Height | 20,9 cm |
| Product Width | 44 cm |
| Protocols | |
| Management protocols | SNMP v1/v2/v3 |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| IGMP snooping | Yes |
| Security algorithms | SSH, SSH-2 |
| SSH/SSL support | Yes |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 5 Anno(i) |
