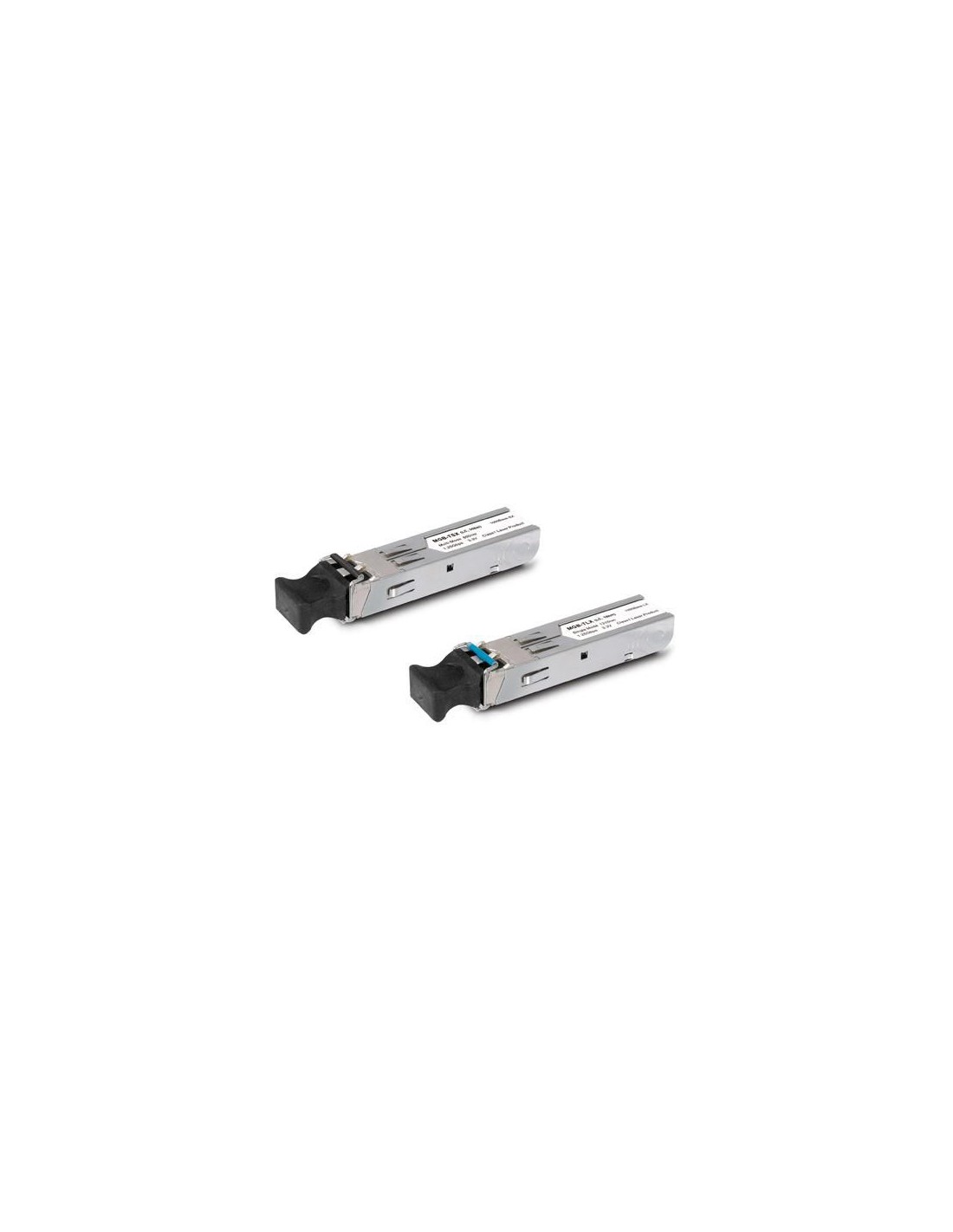

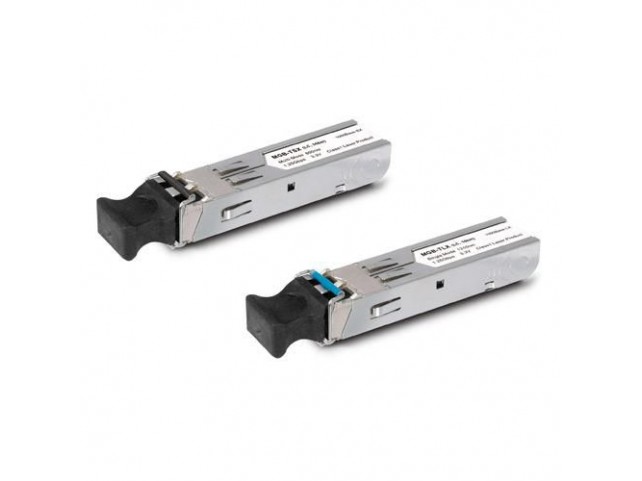

Planet Mini GBIC SX Module - up to 2KM, DDM Supported

Planet Mini GBIC SX Module - up to 2KM, DDM Supported

Planet
DS1_MGB-SX2
Immediatamente Disponibile
37,27 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
  • One 1000Mbps TP/LC fiber port
  • Duplex/Single LC connector
  • Differential PECL inputs and outputs
  • Single power supply 3.3V
  • TTL signal detection indicator
  • Hot pluggable
  • Class 1 laser product complies with EN 60825-1
  • Plug and Play Installation

Specifiche del prodotto

Features
Hot-Plug supportYes
Legal Information
EU ECCN CodeN/A
UNSPSC Code43201553
US ECCN Code5A992
Operational conditions
Operating temperature (T-T)0 - 60 °C
Package dimensions (verified)
Depth Verified7,3 cm
Gross Weight Verified0,052 kg
Height Verified2,9 cm
Width Verified12,9 cm
Packaging data
Number of products included1 pz
Performance
Fiber optic connectorLC
Harmonized System (HS) code85369010
Interface typeSFP
Maximum data transfer rate1000 Mbit/s
Maximum transfer distance2000 m
Multi-mode fiber (MMF) supportedYes
Networking standardsIEEE 802.3z
SFP transceiver standardSX
SFP transceiver typeFiber optic
Single-mode fiber (SMF) supportedNo
Wavelength1310 nm
Product dimensions
Net Weight (Product, kg)0,02 kg
Product Depth1,34 cm
Product Height1,5 cm
Product Width7 cm
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
