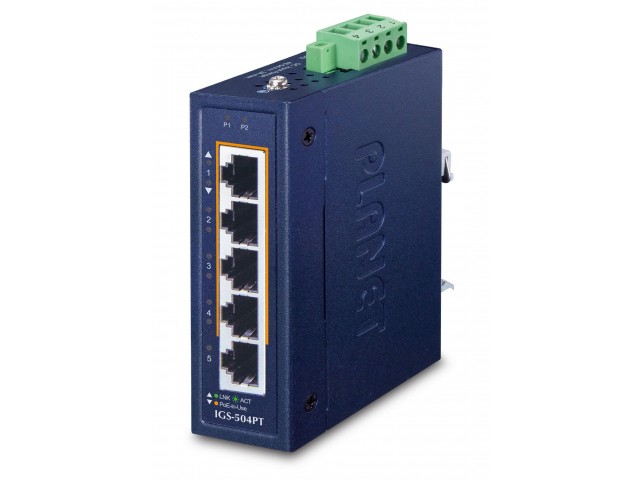

Planet IP30 Compact size 4-Port 10/100/1000T 802.3at PoE +
Planet
DS1_IGS-504PT
Immediatamente Disponibile
236,53 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Mercoledì 30 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Mercoledì 7 Maggio, 2025
- Interface
- 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
- Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/at devices powered
- Up to 120-watt PoE budget
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 2000 voci |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| Throughput | 7,4 Mpps |
| Design | |
| Certification | FCC Part 15 Class A, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| Product colour | Blue |
| Rack mounting | No |
| Wall mountable | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 75 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 0,26 kg |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| Input current | 3 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 120 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,16 kg |
| Product Depth | 7 cm |
| Product Height | 10,4 cm |
| Product Width | 3 cm |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 3 Anno(i) |
