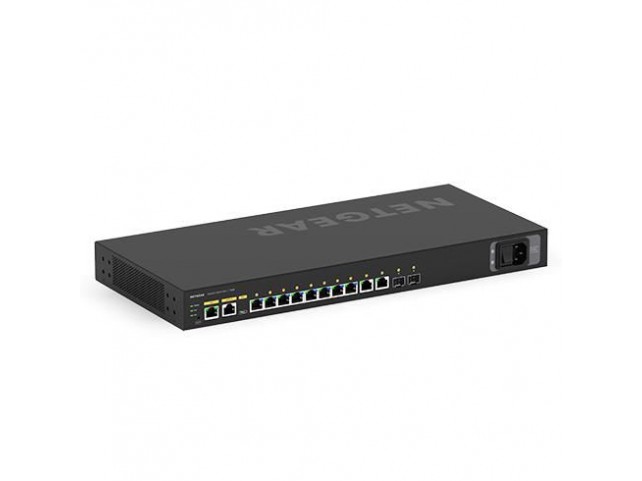

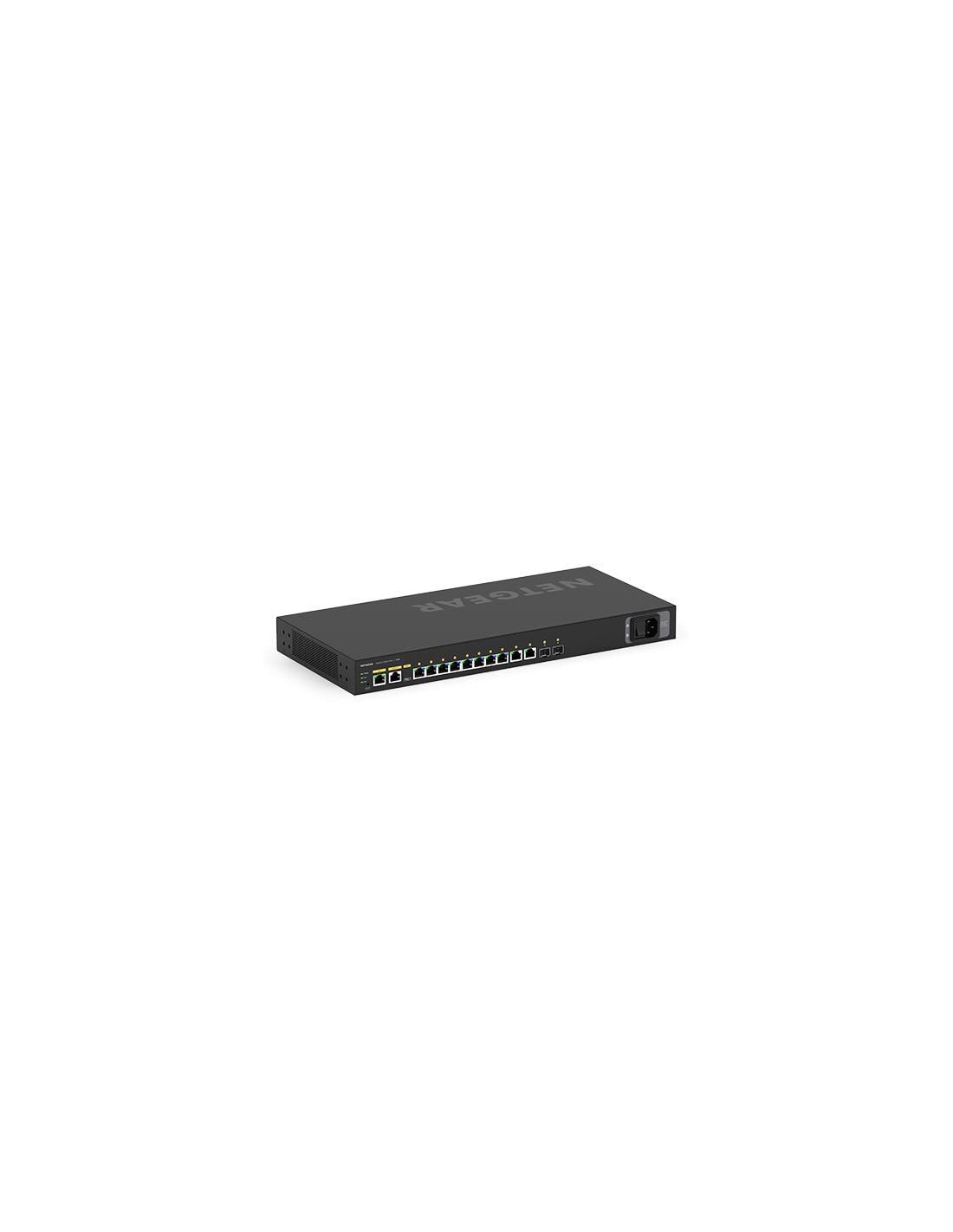

Netgear M4250 12-Port AV Line PoE+ M4250-10G2F, Managed, L2/L3,
NETGEAR
DS1_GSM4212P-100EUS
Immediatamente Disponibile
972,28 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
24 Gbps, 8x 1G PoE+ RJ-45, 2x 1G RJ-45, 2x SFP, 440x200x43.2 mm
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.M4250 Support for Audio Video Bridging (AVB)One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Specifiche del prodotto
| Data transmission | |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2,27 µs |
| MAC address table | 16000 voci |
| Number of queues | 8 |
| Packet buffer memory | 16 MB |
| Store-and-forward | Yes |
| Switching capacity | 24 Gbit/s |
| Throughput | 17,86 Mpps |
| Design | |
| Form factor | 1U |
| LED indicators | PoE, Power, Status |
| Product colour | Black |
| Rack mounting | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Multicast features | |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Number of VLANs | 4093 |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 559,555 BTU/h |
| Non-operating altitude | 0 - 3000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Package dimensions | |
| Depth (package,cm) | 53 cm |
| Gross Weight (Package, kg) | 4,515 kg |
| Height (package,cm) | 12 cm |
| Width (package,cm) | 26,5 cm |
| Performance | |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Internal memory | 2048 MB |
| Mean time between failures (MTBF) | 778769 Hour |
| Noise level | 30,06 dB |
| Processor frequency | 1250 MHz |
| Processor model | ARM Cortex-A9 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| Power consumption (typical) | 163,9 Watt |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 Watt |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 150 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 2,85 kg |
| Product Depth | 20 cm |
| Product Height | 4,32 cm |
| Product Width | 44 cm |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Vendor information | |
| Brand Name | Netgear |
| Warranty | 1 Anno(i) |
