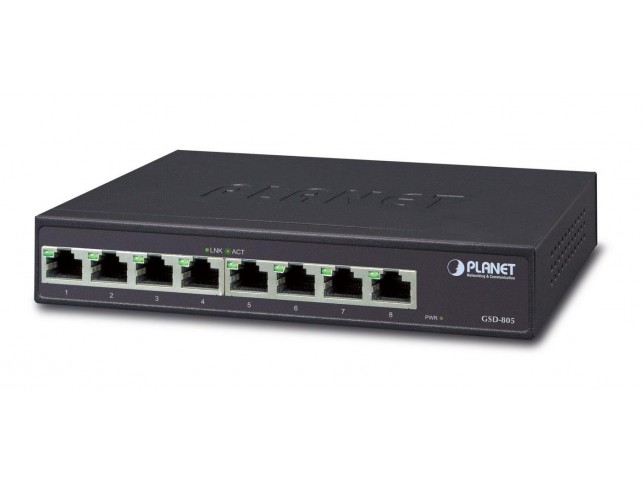

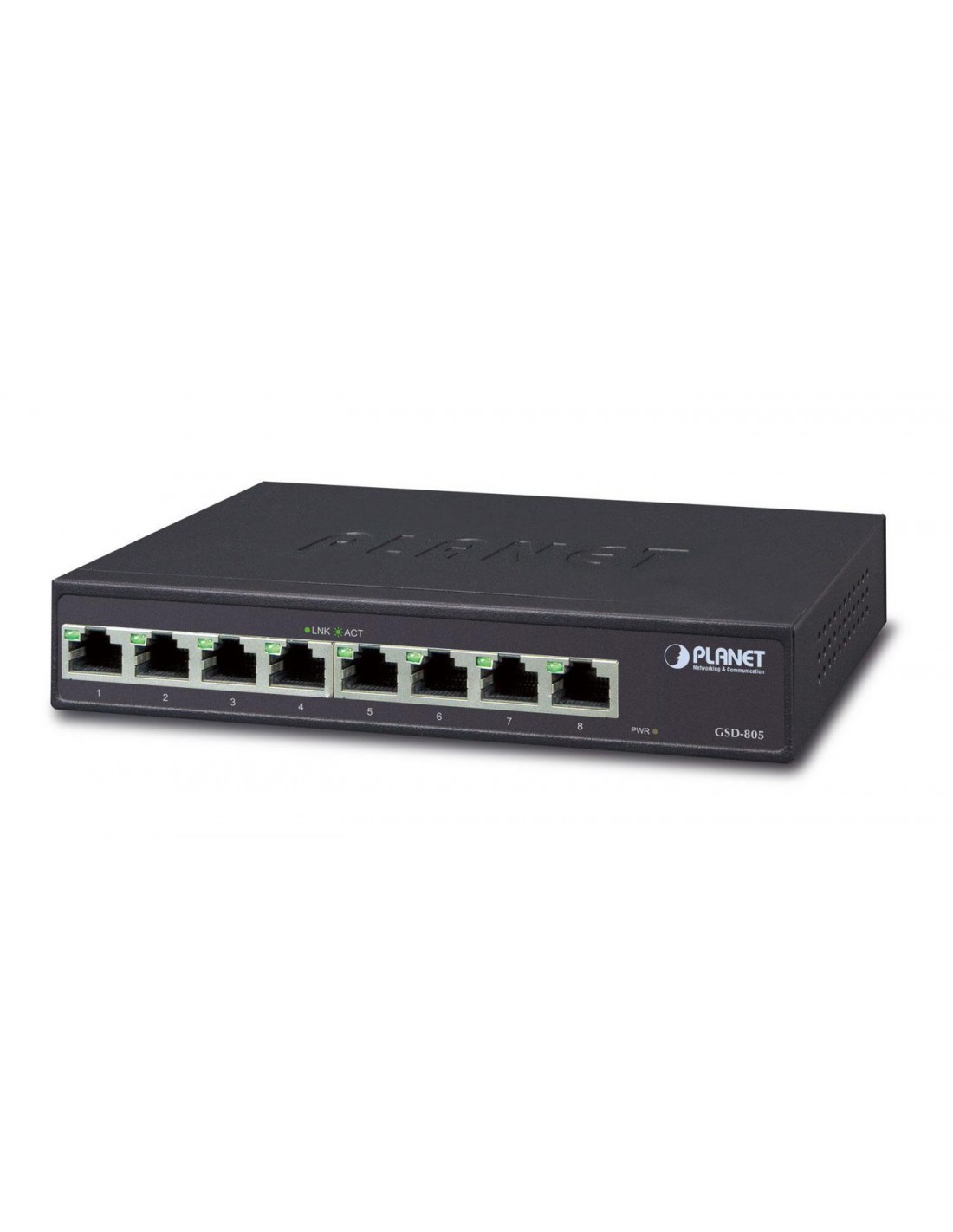

Planet 8-Port 1000Base-T Desktop Gigabit Ethernet Switch -
Planet
DS1_GSD-805
Immediatamente Disponibile
94,18 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- RJ45 Interface
- 8 10/100/1000Mbps Gigabit Ethernet ports
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- Supports auto MDI/MDI-X function
- Switching
- Hardware-based 10/100Mbps in half / full duplex mode and 1000Mbps in full duplex mode, flow control, and auto-negotiation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
- Integrated address look-up engine, supporting 8K absolute MAC addresses
- 9K jumbo packet size
Specifiche del prodotto
| Data transmission | |
| MAC address table | 8000 voci |
| Packet buffer memory | 1 MB |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 11,9 Mpps |
| Design | |
| Certification | FCC Part 15 Class A, CE |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | No |
| Wall mountable | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 18,41 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Package dimensions (verified) | |
| Depth Verified | 19,1 cm |
| Gross Weight Verified | 0,872 kg |
| Height Verified | 9,1 cm |
| Width Verified | 24,5 cm |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.2 A |
| Power consumption (typical) | 5,4 Watt |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Product dimensions | |
| Net Weight (Product, kg) | 0,43 kg |
| Product Depth | 8,57 cm |
| Product Height | 2,63 cm |
| Product Width | 19,1 cm |
| Protocols | |
| Supported network protocols | CSMA / CD |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 3 Anno(i) |
