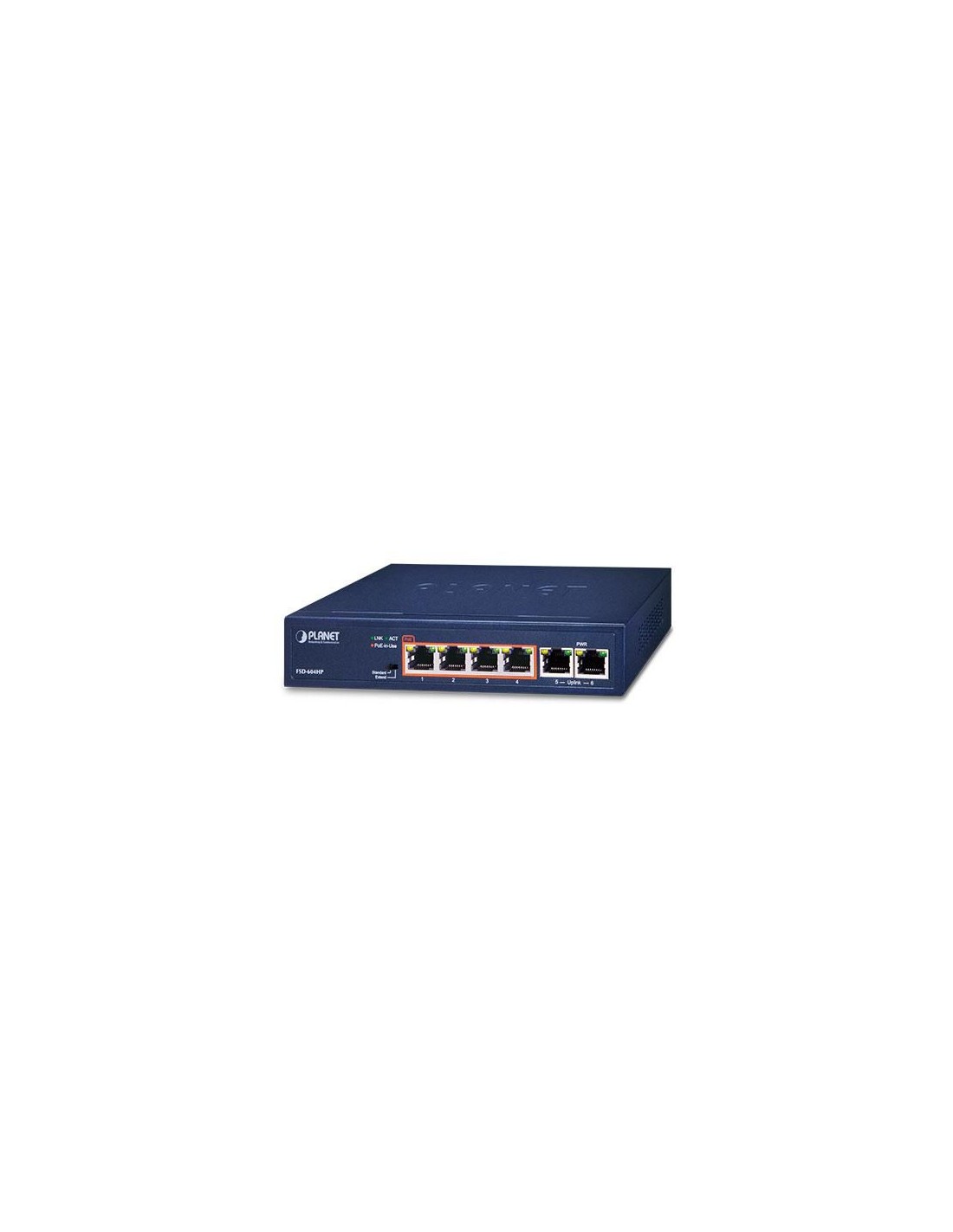

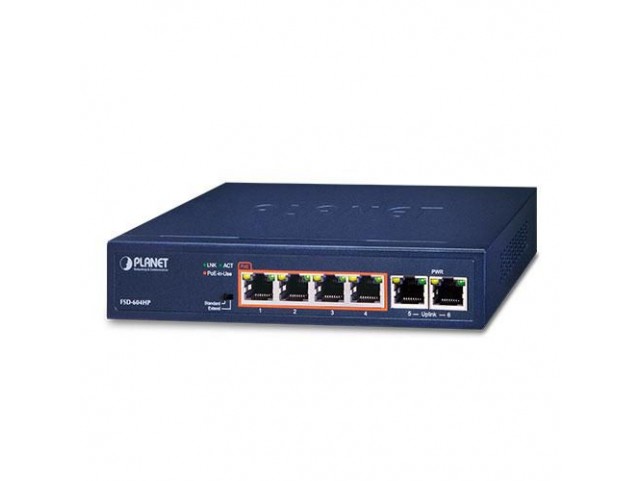

Planet 4-Port 10/100TX 802.3at POE + 2-Port 10/100TX Desktop
Planet
DS1_FSD-604HP-SD
Immediatamente Disponibile
57,97 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- RJ45 Interface
- 6 10/100Mbps Fast Ethernet ports
- 4 ports supporting 52V DC power to PoE powered device
- Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span
- Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- 60-watt PoE budget
- Hardware DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- Auto detects powered device (PD)
Specifiche del prodotto
| Data transmission | |
| MAC address table | 2000 voci |
| Switching capacity | 1,2 Gbit/s |
| Throughput | 0,89 Mpps |
| Design | |
| Certification | CE, FCC |
| LED indicators | Yes |
| Product colour | Blue |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Operational conditions | |
| Heat dissipation | 214 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 0,96 kg |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Power consumption (max) | 63 Watt |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,49 kg |
| Product Depth | 3,2 cm |
| Product Height | 16,8 cm |
| Product Width | 9,3 cm |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 3 Anno(i) |
