D-Link 12 Port L2 Industrial Smart Managed...

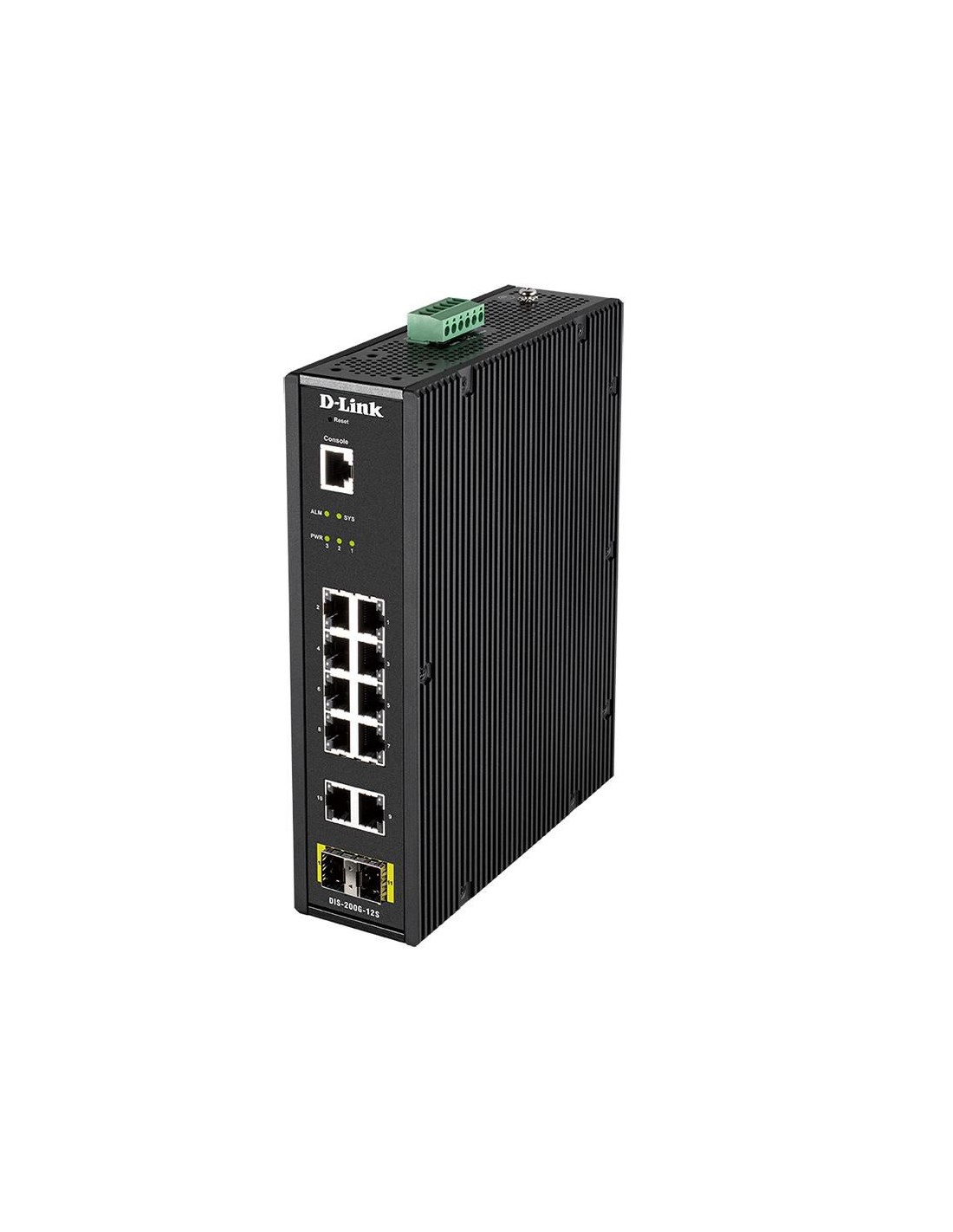

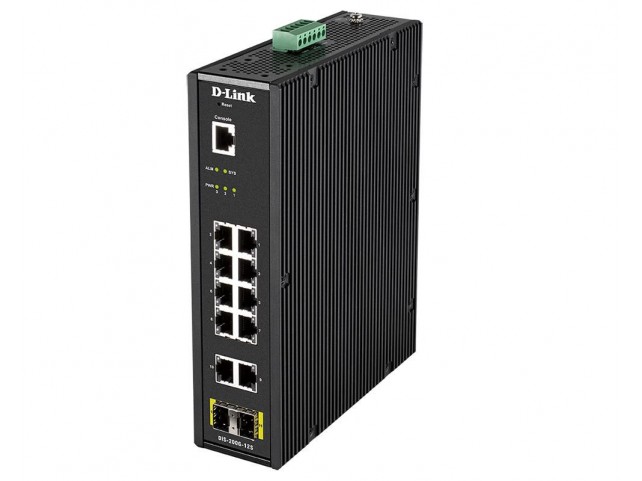

D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x

D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x

D-LINK
DS1_DIS-200G-12S
Immediatamente Disponibile
937,08 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


Specifiche del prodotto

Data transmission
Forwarding rate17,85 Mpps
Jumbo frames9216
Jumbo frames supportYes
MAC address table8000 voci
Store-and-forwardYes
Switching capacity24 Gbit/s
Design
CertificationCE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
DIN rail mountingYes
Electromagnetic compatibilityCISPR 22, FCC Part 15B Class A
Housing materialMetal
International Protection (IP) codeIP30
LED indicatorsYes
Product colourBlack
Rack mountingYes
SafetyUL60950-1
Wall mountableYes
Legal Information
EU ECCN Code5A002
UNSPSC Code43222612
US ECCN Code5A002
Logistics data
Harmonized System (HS) code85176990
Management features
Configuring Location Settings (CLI)Yes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
System event logYes
Web-based managementYes
Multicast features
Multicast supportYes
Network
10G supportNo
Active link detectionYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Flow control supportYes
Full duplexYes
Link aggregationYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs4094
Port mirroringYes
Spanning tree protocolYes
Virtual LAN featuresVoice VLAN, Tagged VLAN, Port-based VLAN
VLAN supportYes
Operational conditions
Heat dissipation35,01 BTU/h
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-40 - 65 °C
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 85 °C
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Package dimensions (verified)
Depth Verified22,7 cm
Gross Weight Verified2,076 kg
Height Verified8,2 cm
Width Verified35,1 cm
Performance
Harmonized System (HS) code85176990
Mean time between failures (MTBF)276773 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Gigabit Ethernet (copper) ports quantity10
Installed SFP modules quantity2
SFP module slots quantity2
Power
DC input voltage12 - 48 V
Power consumption (max)10,26 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Product dimensions
Net Weight (Product, kg)2,07 kg
Product Depth4,8 cm
Product Height21 cm
Product Width17,12 cm
Protocols
Management protocolsSNMP v1/v2c/v3, SNTP, Telnet
Security
AuthenticationPort-based authentication
Authentication typeRADIUS
DHCP featuresDHCP client
DoS attack preventionYes
IGMP snoopingYes
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
Security algorithms802.1x RADIUS, SSL/TLS
Technical details
Master (outer) cases per pallet (air)24 pz
Master (outer) cases per pallet (sea)42 pz
Pallet gross length110 cm
Pallet gross weight (air)268,8 kg
Pallet gross weight (sea)470,4 kg
Pallet gross width120 cm
Pallet height (air)114,3 cm
Pallet height (sea)189,9 cm
Products per pallet (air)120 pz
Products per pallet (sea)210 pz
Products per shipping (inner) case5 pz
Shipping (inner) case gross weight11,2 kg
Shipping (inner) case gross weight11,2 kg
Shipping (inner) case height25,2 cm
Shipping (inner) case length40,9 cm
Shipping (inner) case net weight10,37 kg
Shipping (inner) case width37,2 cm
Vendor information
Brand NameD-Link
Warranty5 Anno(i)
