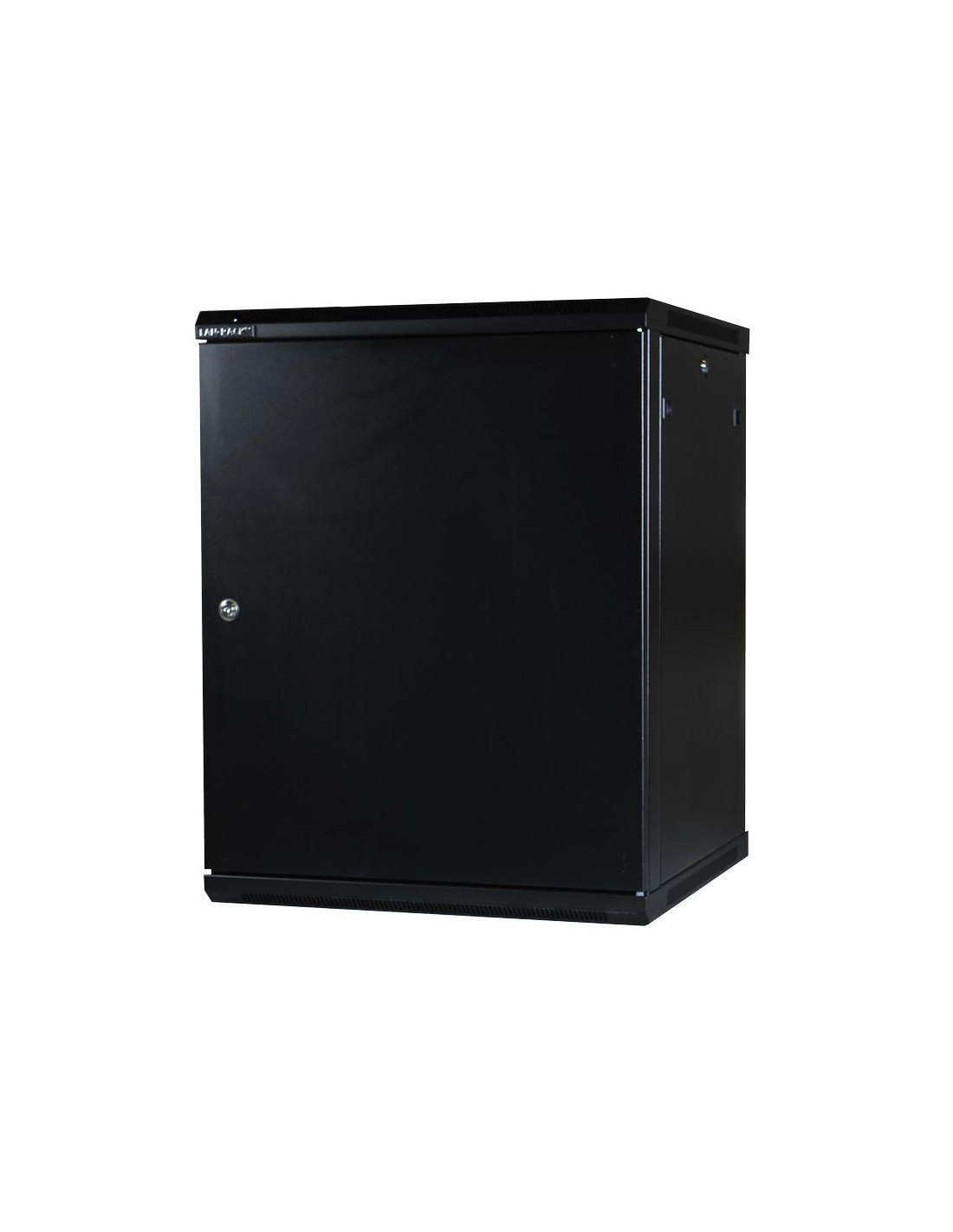

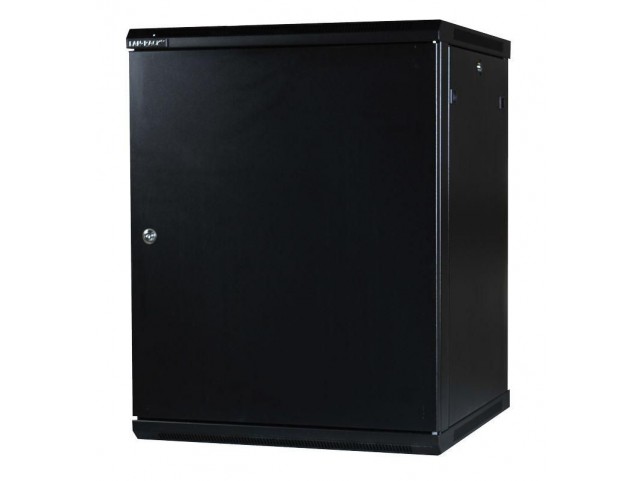

Lanview Flatpack 19" Wall Mounting Cabinet 27U H1300 x W600 x
Lanview
DS1_LVR242060
Immediatamente Disponibile
373,13 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Plate door
- Max weight 60 kg
- Electrosteel rails with grounding connector
- cable entry exit cut outs
- The side panels are removable, and the cabinet is prepared for installation of fan tray, shelves and power.
Specifiche del prodotto
| Features | |
| Certification | ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 |
| Cooling type | Passive |
| Fan | Possibility to install 2 fans |
| Frame type | Closed |
| Front door construction | Steel |
| Front door key lock | Yes |
| International Protection (IP) code | IP20 |
| Key lock | Yes |
| Material | Steel |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (rolling) | 60 kg |
| Preassembled | No |
| Product colour | Black |
| Rack capacity | 27U |
| Rack rail thickness | 1,5 mm |
| Rack rails | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| RoHS compliance | Yes |
| Side panel construction | Steel |
| Side panels included | Yes |
| Type | Wall mounted rack |
| Legal Information | |
| UNSPSC Code | 24102001 |
| Other features | |
| Chassis type | Wall mount |
| Compliance industry standards | Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric, ETSI and 19? international standard |
| Dimensions (WxDxH) | 600x600x1300 mm |
| Package dimensions | |
| Depth (package,cm) | 211 cm |
| Gross Weight (Package, kg) | 52,9 kg |
| Height (package,cm) | 130 cm |
| Width (package,cm) | 24 cm |
| Packaging data | |
| Mounting hardware included in set | Wall mount |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Wall mounting kit | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 48,4 kg |
| Product Depth | 60 cm |
| Product Height | 130 cm |
| Product Width | 60 cm |
| Technical details | |
| Harmonized System (HS) code | 85381000 |
| Sustainability certificates | RoHS |
| Vendor information | |
| Brand Name | Lanview |
| Warranty | 5 Anno(i) |
| Weight & dimensions | |
| Size (imperial) | 19 " |
| Width (imperial) | 19 " |
