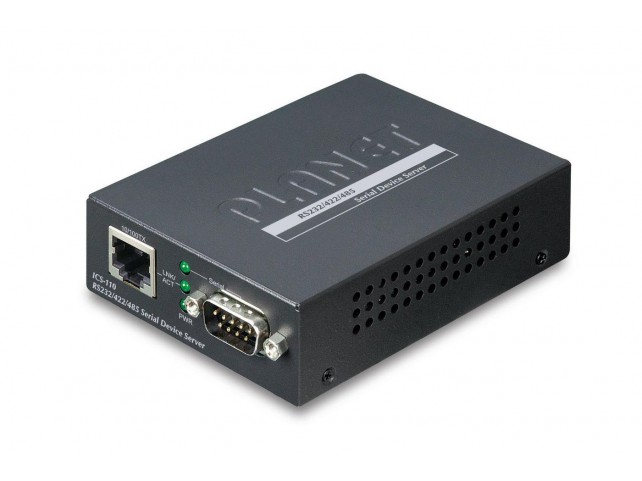

RS232/RS-422/RS485 to Ethernet...
RS232/RS-422/RS485 to Ethernet RS232/RS-422/RS485 to

RS232/RS-422/RS485 to Ethernet RS232/RS-422/RS485 to

Planet
DS1_ICS-110
Immediatamente Disponibile
166,07 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • Serial Interface
  • One DB9 interface supports RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
  • Asynchronous serial data rates up to 921600bps
  • Data mode includes VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
  • Ethernet Interface
  • 1-port 10/100BASE-TX RJ45 interface with auto MDI/MDI-X function
  • Management
  • IPv4 and IPv6 dual stack management
  • Remote Management Interfaces
  • IP-based Web management

Specifiche del prodotto

Design
CertificationFCC Part 15 Class A, CE Certification Class A
Product colourBlack
Indication
LED indicatorsSystem
Link/Act LEDYes
Operational conditions
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Package dimensions
Depth (package,cm)58 cm
Gross Weight (Package, kg)0,5 kg
Height (package,cm)31 cm
Width (package,cm)36 cm
Ports & interfaces
Cabling technology10/100Base-T(X)
Ethernet LAN (RJ-45) ports1
Product dimensions
Net Weight (Product, kg)0,16 kg
Technical details
CertificationFCC Part 15 Class A, CE Certification Class A
Data bits5, 6, 7, 8
Flow control supportYes
Flow Control typeDTR/DSR, RTS/CTS, XON/XOFF
Networking standardsIEEE 802.3, IEEE 802.3u
Parity bitEven, Mark, No, Odd, Space
Serial ports quantity1
Stop bits1, 1.5, 2
Vendor information
Brand NamePlanet
Warranty3 Anno(i)
Weight & dimensions
Dimensions (WxDxH)97 x 70 x 26 mm
