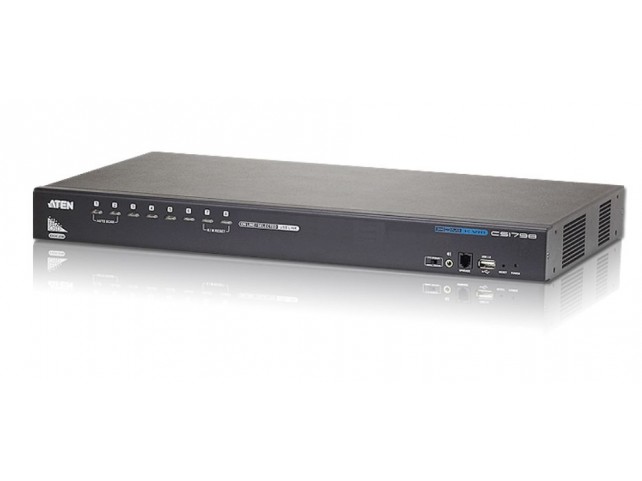

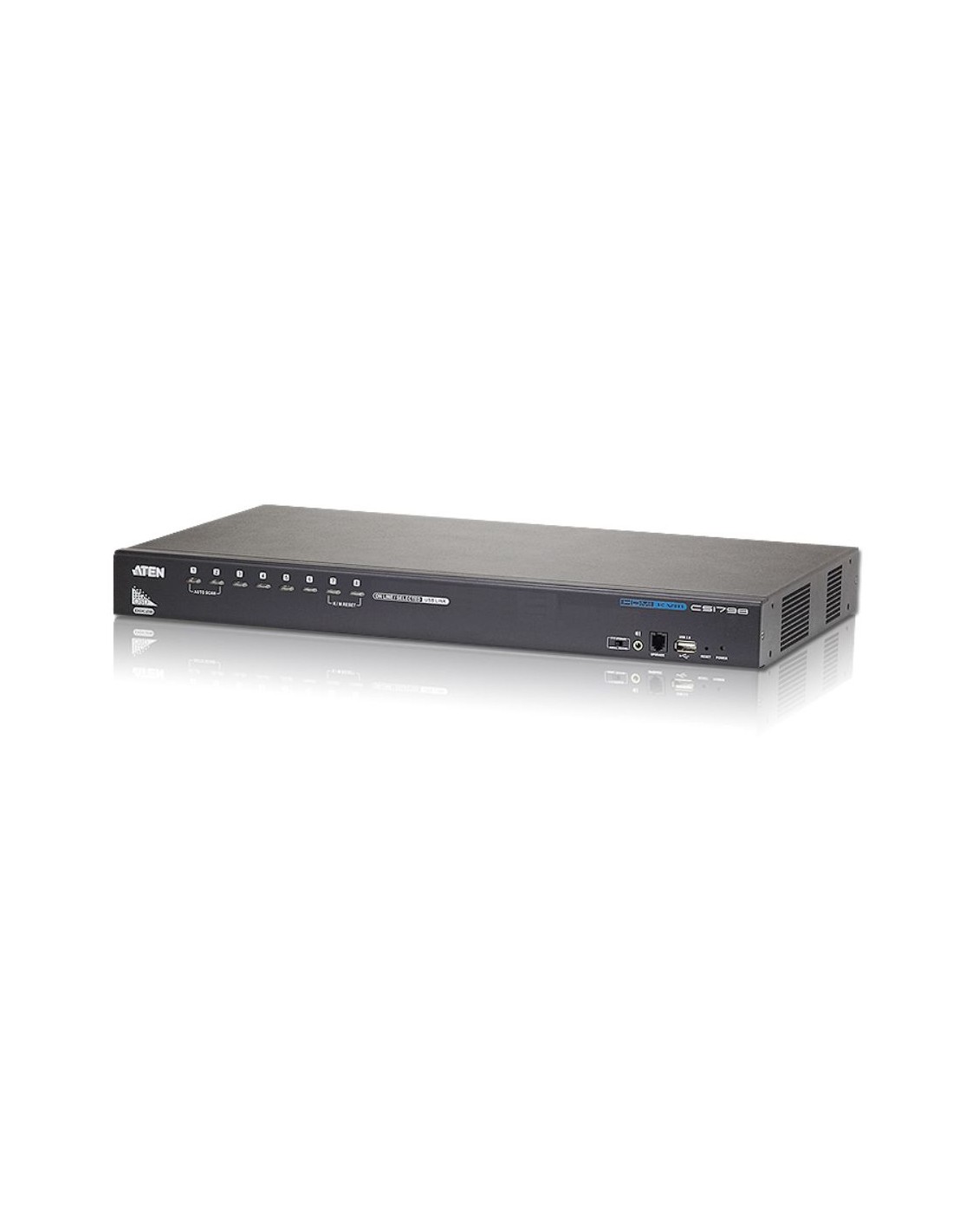

8-Port USB - HDMI KVM Switch w/USB Peripheral port
Aten
DS1_CS1798-AT-G
Immediatamente Disponibile
535,06 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Cascadable to three levels?control up to 512 computers
- Multi-Display feature ? stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- Video DynaSync? ? exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
Specifiche del prodotto
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Display | |
| Built-in display | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 16,68 kg |
| Master (outer) case height | 34,8 cm |
| Master (outer) case length | 51,9 cm |
| Master (outer) case net weight | 13,899 kg |
| Master (outer) case width | 42,7 cm |
| Products per master (outer) case | 3 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 51 cm |
| Gross Weight Verified | 5,2 kg |
| Height Verified | 15 cm |
| Width Verified | 33 cm |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 Pixels |
| Scan interval | 1, 5, 255 |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Audio connections | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Yes |
| HDMI ports quantity | 8 |
| Headphone outputs | 9 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| Number of microphone inputs | 1 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 8 |
| USB connector type | USB Type-A, USB Type-B |
| USB hub | Yes |
| Video port type | HDMI |
| Power | |
| DC input voltage | 5 V |
| Power consumption (typical) | 8,56 Watt |
| Power source | DC |
| Product dimensions | |
| Net Weight (Product, kg) | 4,63 kg |
| Product Depth | 49,9 cm |
| Product Height | 32,4 cm |
| Product Width | 13,3 cm |
| System requirements | |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
