Aten 4 Port PS2/USB KVM, Console & PC PS2/USB support, Video
Aten
DS1_CS84U-AT
Immediatamente Disponibile
186,74 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025

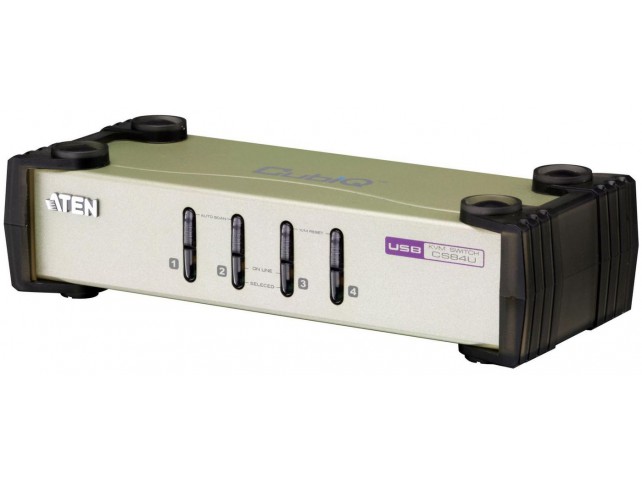

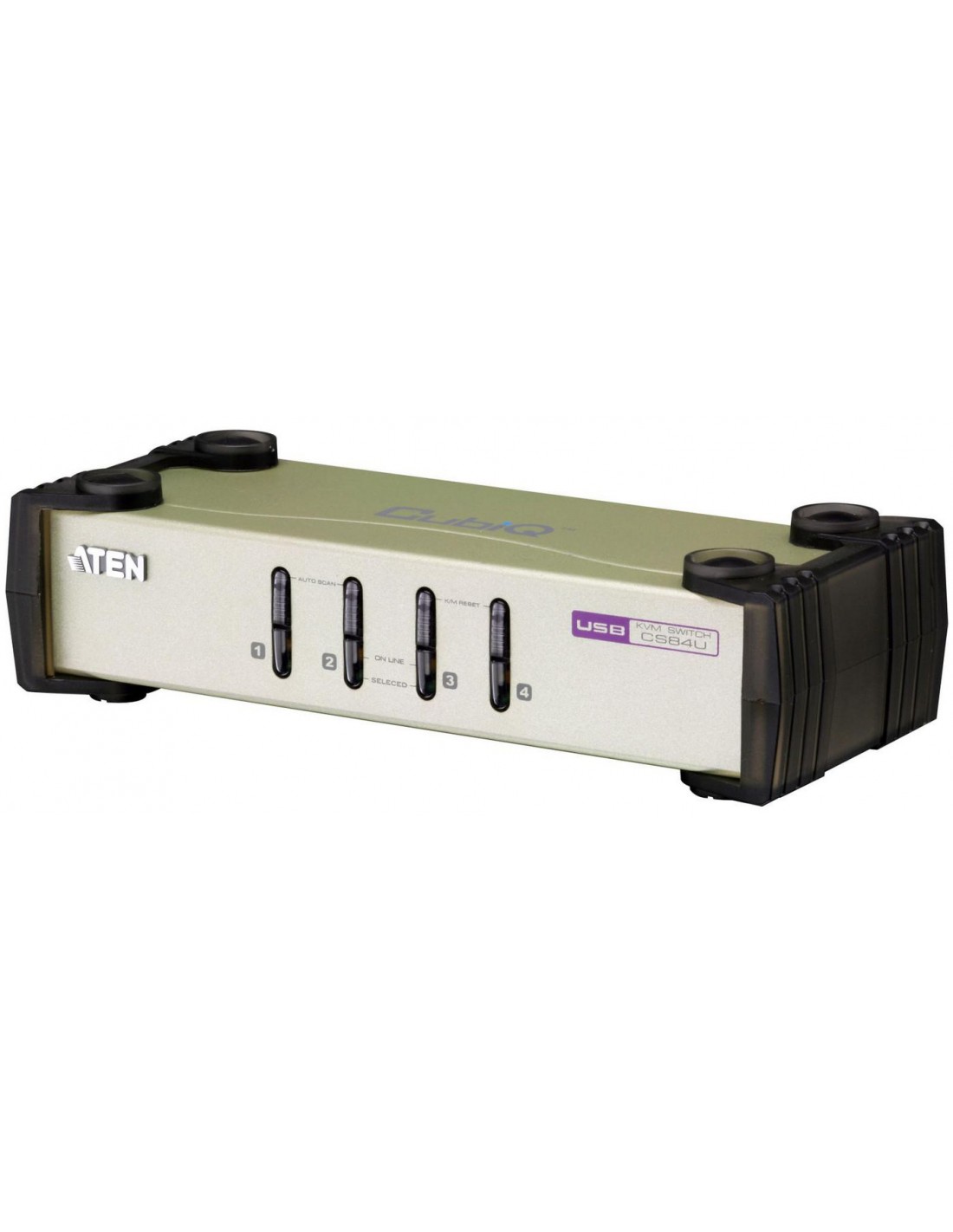

4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync? technology, which eliminates boot-up display problems and optimizes resolution.1x CS84U PS/2-USB KVM Switch2x 2L-5301UP PS/2-USB KVM Cables 2x 2L-5302UP PS/2-USB KVM Cables1x User Instructions
- Superior video quality - 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Video DynaSync? - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Specifiche del prodotto
| Design | |
| Hot keys | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Push button | Yes |
| Rack mounting | No |
| Display | |
| Built-in display | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 8,98 kg |
| Master (outer) case height | 19,4 cm |
| Master (outer) case length | 51,7 cm |
| Master (outer) case net weight | 7,565 kg |
| Master (outer) case width | 29,2 cm |
| Products per master (outer) case | 5 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 17,6 cm |
| Gross Weight Verified | 1,682 kg |
| Height Verified | 10,4 cm |
| Width Verified | 28,5 cm |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Performance | |
| DDC2B support | Yes |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 Pixels |
| Scan interval | 3, 5, 10, 20 |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Console ports | USB A, VGA (D-Sub) |
| DC-in jack | Yes |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 4 |
| Video port type | VGA |
| Power | |
| DC input voltage | 5 V |
| Power consumption (typical) | 0,45 Watt |
| Power source | DC |
| Product dimensions | |
| Net Weight (Product, kg) | 1,51 kg |
| Product Depth | 28,3 cm |
| Product Height | 17,3 cm |
| Product Width | 10 cm |
| Vendor information | |
| Brand Name | Aten |
| Homepage | |
| Warranty | 2 Anno(i) |
