Aten 2-port USB 3.0 4K displayPort Dual display KVMP Switch
Aten
DS1_CS1942DP-AT-G
Immediatamente Disponibile
502,06 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
4096x2160, USB 3.1, DP, 3.5mm, RJ-45, HDCP, 335x156.6x44 mm

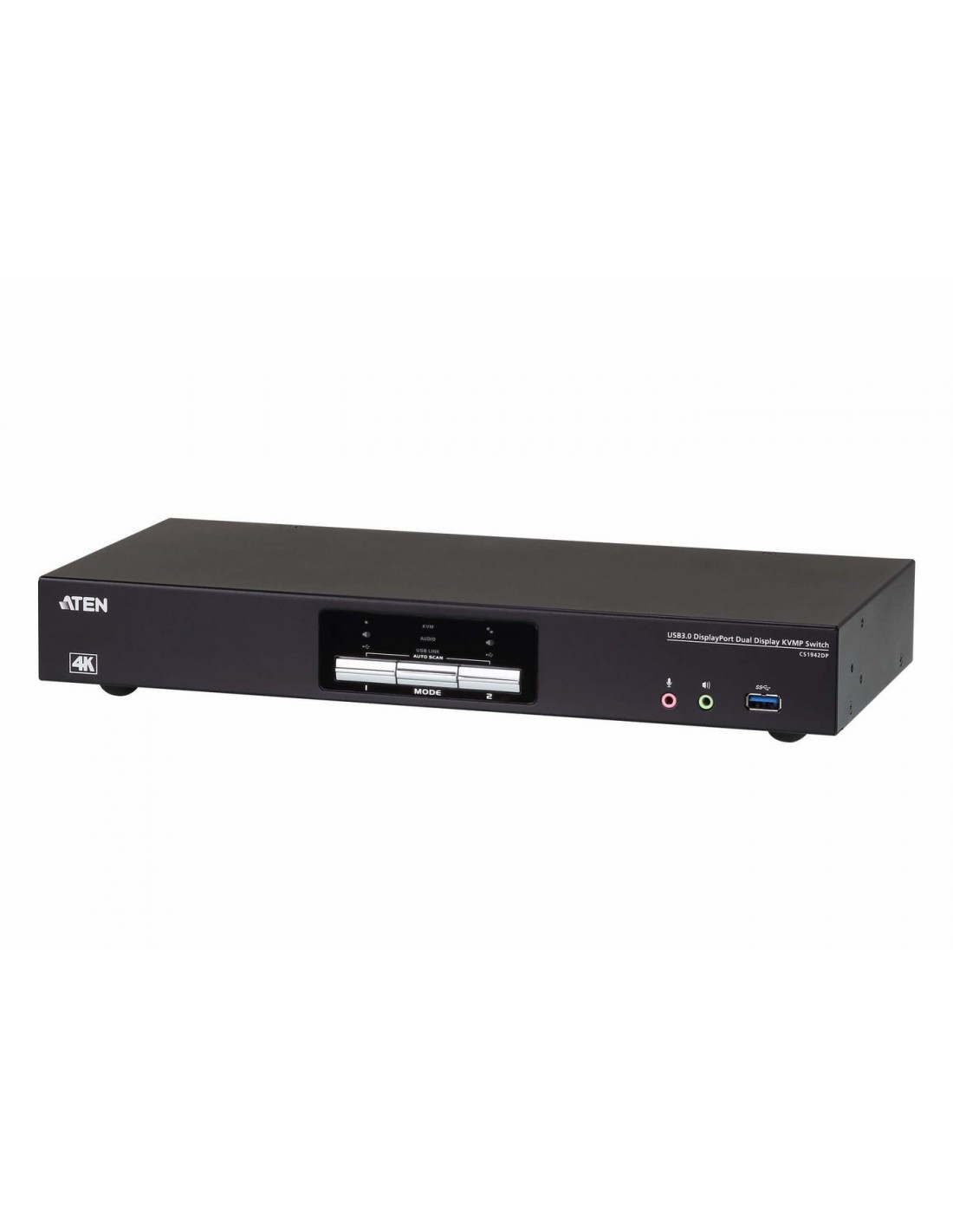

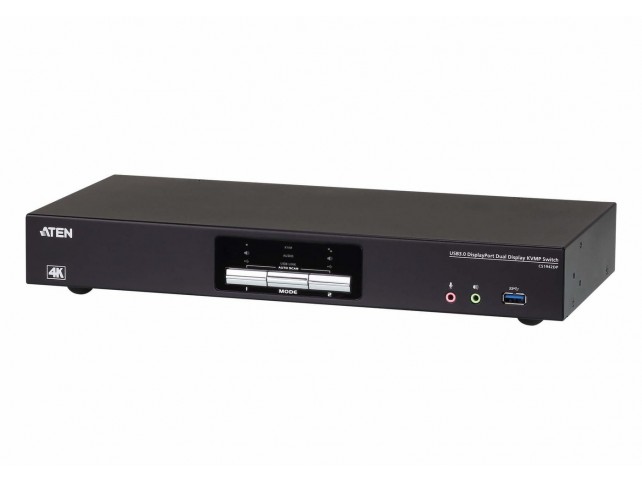

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP? Switch4x LIN5-20K1-K13G DisplayPort 1.2 Cables2x LIN6-11C1-E12G USB 3.0 Cables4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables1x LIN2-418K-E12G Power Adapter1x User Instructions
- Superior video quality ? 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Quad-Display ? Easily connect two CS1942DP units for a second dual-screen setup controlled through a single connection
- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector2
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter1
Specifiche del prodotto
| Design | |
| Hot keys | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | No |
| Display | |
| Built-in display | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 11,16 kg |
| Master (outer) case height | 25,8 cm |
| Master (outer) case length | 56,5 cm |
| Master (outer) case net weight | 8,22 kg |
| Master (outer) case width | 37,5 cm |
| Products per master (outer) case | 3 pz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 55 cm |
| Gross Weight Verified | 3,4 kg |
| Height Verified | 12 cm |
| Width Verified | 24 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| Manual | Yes |
| Performance | |
| Auto scan delay (max) | 99 Second |
| Auto scan delay (min) | 1 Second |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 Pixels |
| Scan interval | 1, 99 |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 6 |
| HDCP | Yes |
| Headphone outputs | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Number of microphone inputs | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB hub | Yes |
| Video port type | DisplayPort |
| Power | |
| DC input voltage | 12 V |
| Power consumption (typical) | 3,48 Watt |
| Power source | DC |
| Product dimensions | |
| Net Weight (Product, kg) | 2,74 kg |
| Product Depth | 54 cm |
| Product Height | 23,3 cm |
| Product Width | 11,6 cm |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
