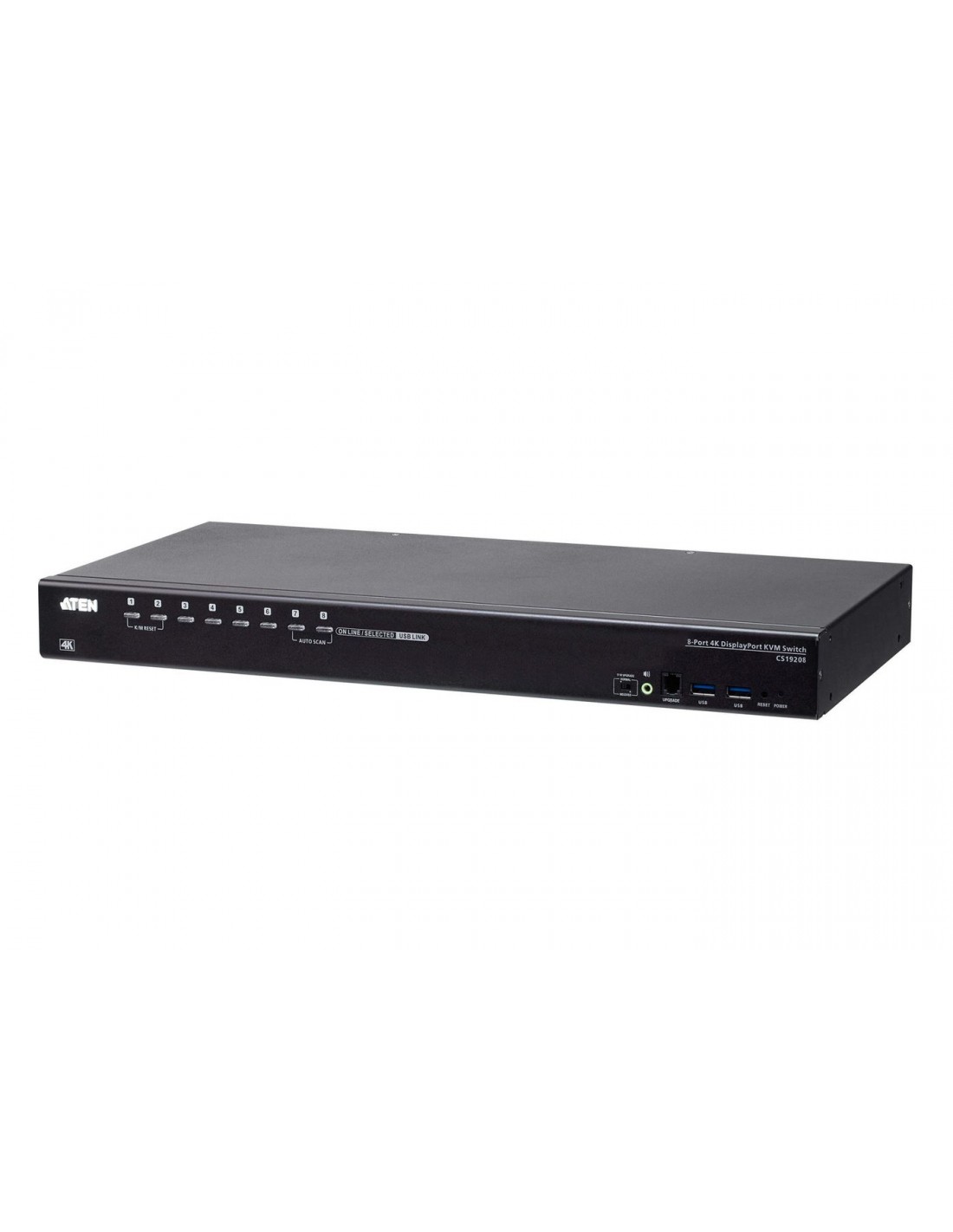

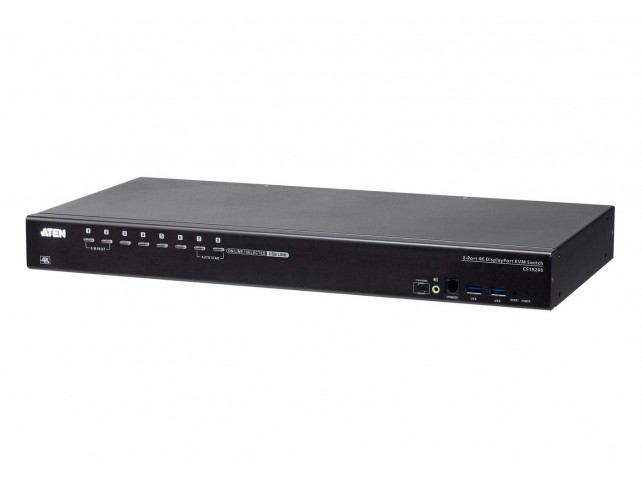

Aten 8-Port USB True 4K DisplayPort KVM Switch with
Aten
DS1_CS19208-AT-G
Immediatamente Disponibile
1.395,39 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Superior video quality ? up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Cascadable to two levels ? controls up to 128 computers
- Multi-Display feature ? stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync? ? an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Specifiche del prodotto
| Design | |
| Hot keys | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 43211601 |
| US ECCN Code | 5A992 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 15,57 kg |
| Master (outer) case height | 34,8 cm |
| Master (outer) case length | 51,9 cm |
| Master (outer) case net weight | 11,25 kg |
| Master (outer) case width | 42,7 cm |
| Products per master (outer) case | 3 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions | |
| Depth (package,cm) | 49,9 cm |
| Gross Weight (Package, kg) | 4,83 kg |
| Height (package,cm) | 32,4 cm |
| Width (package,cm) | 13,3 cm |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 Pixels |
| Scan interval | 1, 5, 255 |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Audio connections | Yes |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| DC-in jack | Yes |
| DisplayPorts quantity | 8 |
| Headphone outputs | 9 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| Number of microphone inputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| USB connector type | USB Type-A, USB Type-B |
| USB hub | Yes |
| Video port type | DisplayPort |
| Power | |
| DC input voltage | 12 V |
| Power consumption (typical) | 18,44 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 3,75 kg |
| Product Depth | 49,9 cm |
| Product Height | 32,4 cm |
| Product Width | 13,3 cm |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
