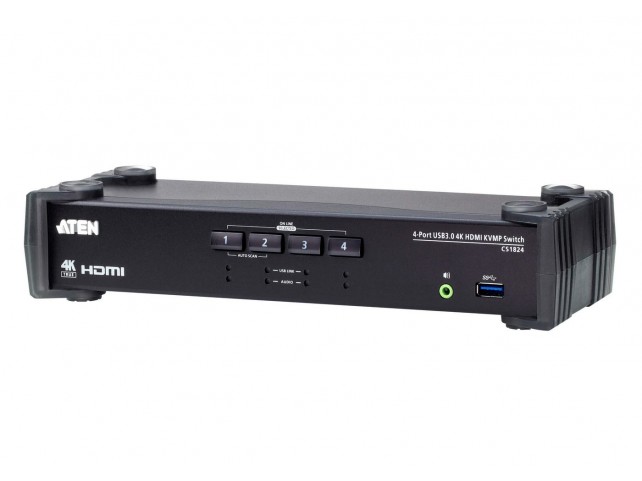

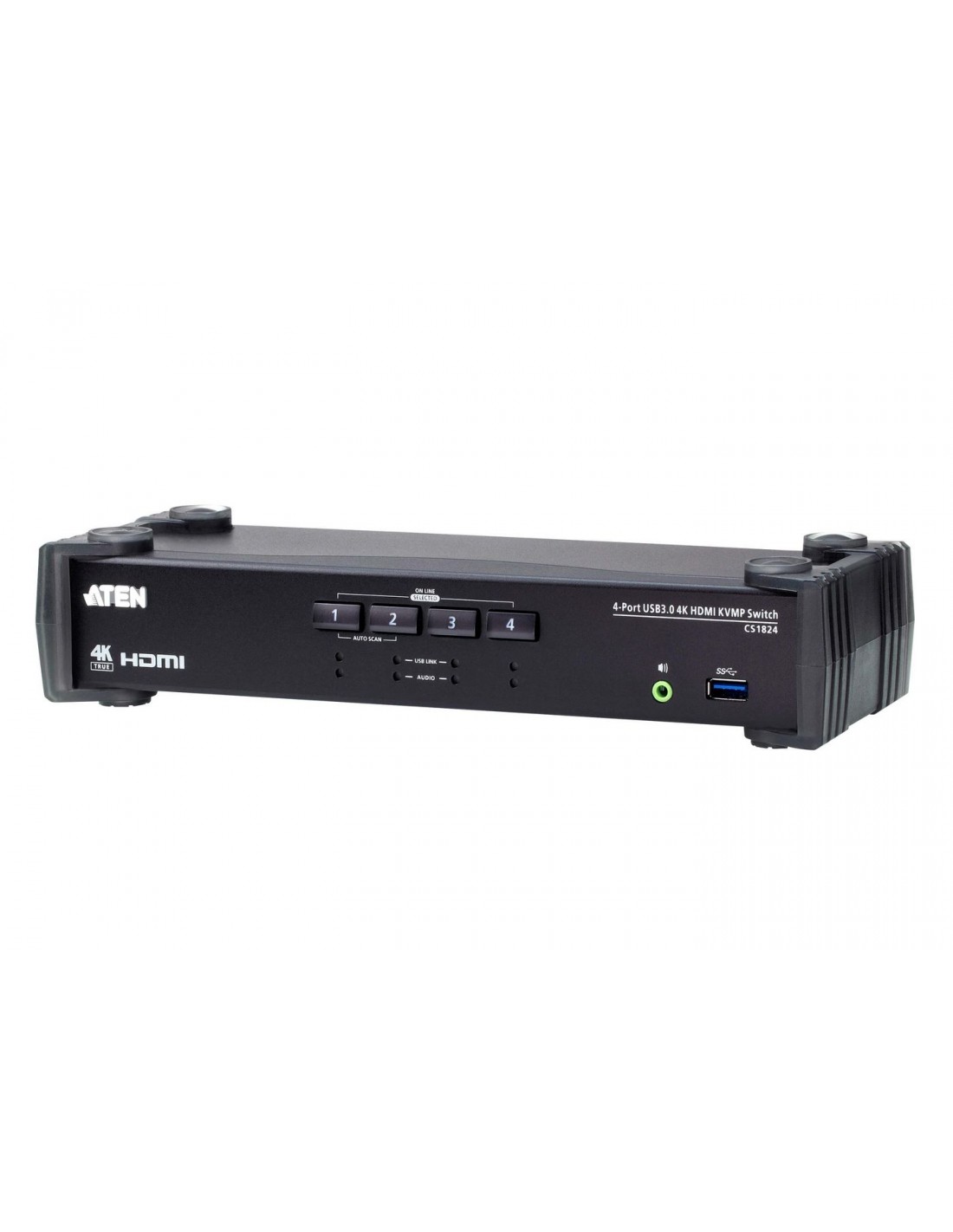

Aten 4-Port USB 3.0 4K HDMI KVMPT Switch CS1824-AT-G, 4096 x
Aten
DS1_CS1824-AT-G
Immediatamente Disponibile
493,61 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Venerdì 2 Maggio, 2025 -
Corriere Standard - Acquista entro e ricevilo Giovedì 8 Maggio, 2025
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
- Supports superior video quality ? 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync? ? an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes ? mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID mode ? smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD Audio2
Specifiche del prodotto
| Design | |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| RoHS compliance | Yes |
| Display | |
| Built-in display | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 13,23 kg |
| Master (outer) case height | 23,2 cm |
| Master (outer) case length | 51,2 cm |
| Master (outer) case net weight | 11,2 kg |
| Master (outer) case width | 34,2 cm |
| Products per master (outer) case | 5 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions | |
| Depth (package,cm) | 51,2 cm |
| Gross Weight (Package, kg) | 2,5 kg |
| Height (package,cm) | 23,2 cm |
| Width (package,cm) | 34,2 cm |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 Pixels |
| Scan interval | 1, 99 |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Audio connections | Yes |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| DC-in jack | Yes |
| HDCP | Yes |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| Headphone outputs | 6 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 4 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| USB hub | Yes |
| Video port type | HDMI |
| Power | |
| DC input voltage | 5 V |
| Power consumption (typical) | 2,535 Watt |
| Power source | DC |
| Product dimensions | |
| Net Weight (Product, kg) | 2,24 kg |
| Product Depth | 32,5 cm |
| Product Height | 21 cm |
| Product Width | 9,8 cm |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Sustainability certificates | RoHS |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
