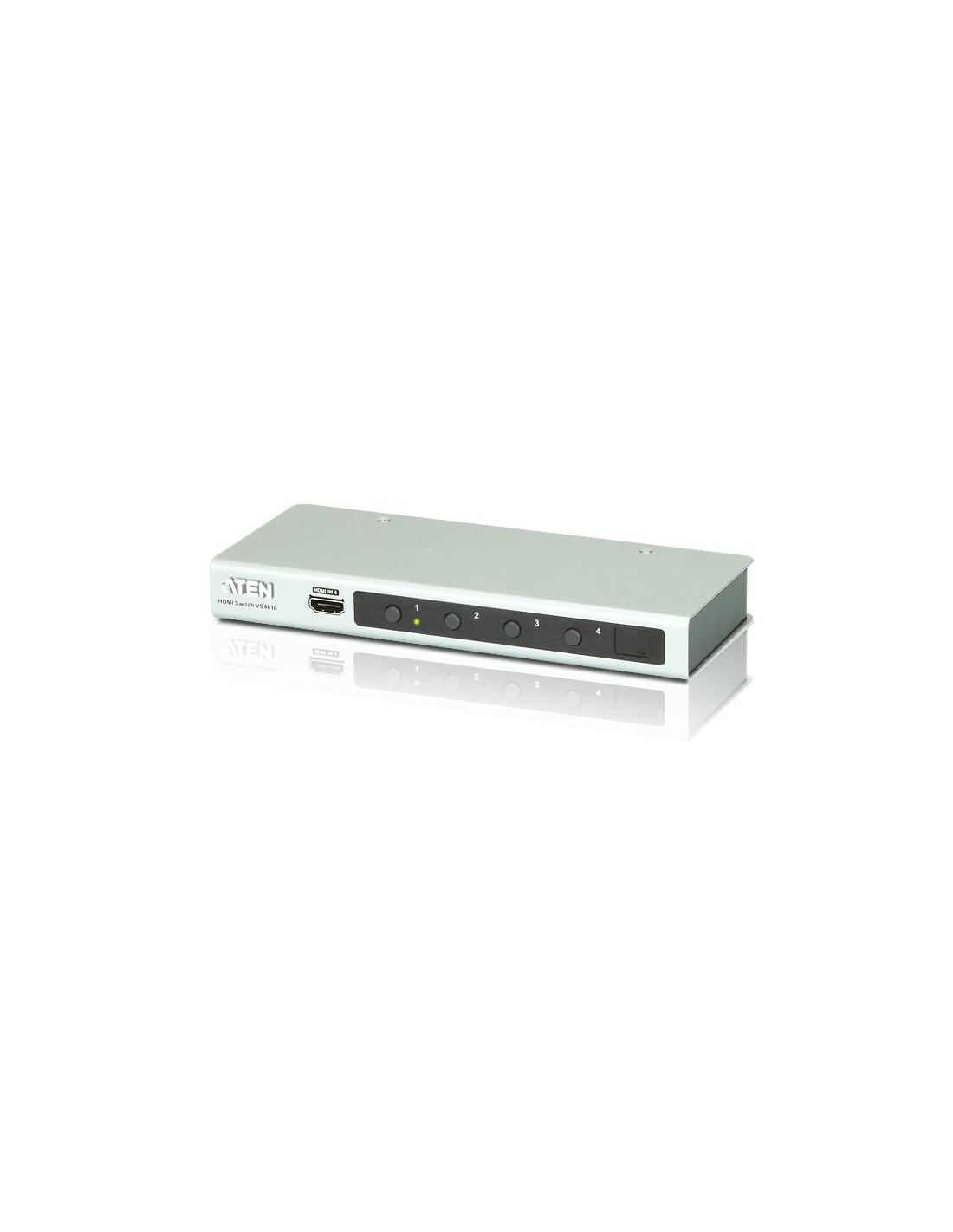

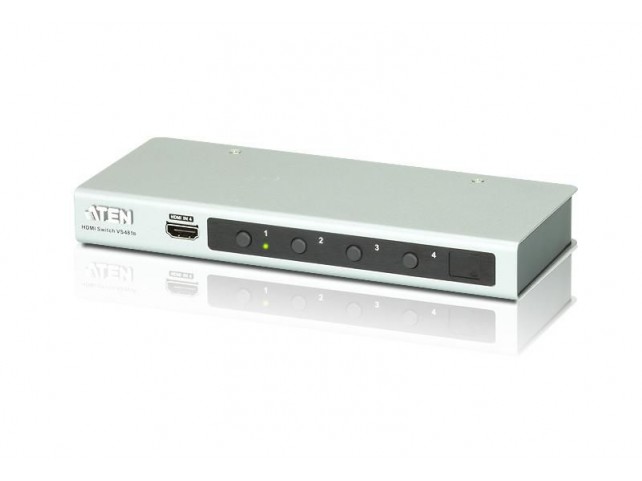

Aten 4 Port HDMI aud/vid Switch with IR Remote Control
Aten
DS1_VS481B-AT-G
Immediatamente Disponibile
101,15 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Auto switching modes for auto port selection
- Long distance transmission ? up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
Specifiche del prodotto
| Features | |
| 3D | Yes |
| Bandwidth | 340 MHz |
| Bandwidth | 10,2 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Input impedance | 100 ? |
| LED indicators | Yes |
| Material | Metal |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 Pixels |
| Output impedance | 100 ? |
| Product colour | Silver |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 8,96 kg |
| Master (outer) case height | 17,8 cm |
| Master (outer) case length | 49 cm |
| Master (outer) case net weight | 6,59 kg |
| Master (outer) case width | 31,5 cm |
| Products per master (outer) case | 10 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 16,2 cm |
| Gross Weight Verified | 0,796 kg |
| Height Verified | 6,3 cm |
| Width Verified | 23,8 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI |
| Number of products included | 1 pz |
| Quantity per pack | 1 pz |
| Remote control included | Yes |
| User guide | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| HDMI in | 4 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| Video port type | HDMI |
| Power | |
| Power consumption (typical) | 1,76 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,66 kg |
| Product Depth | 23,9 cm |
| Product Height | 16 cm |
| Product Width | 5,9 cm |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
