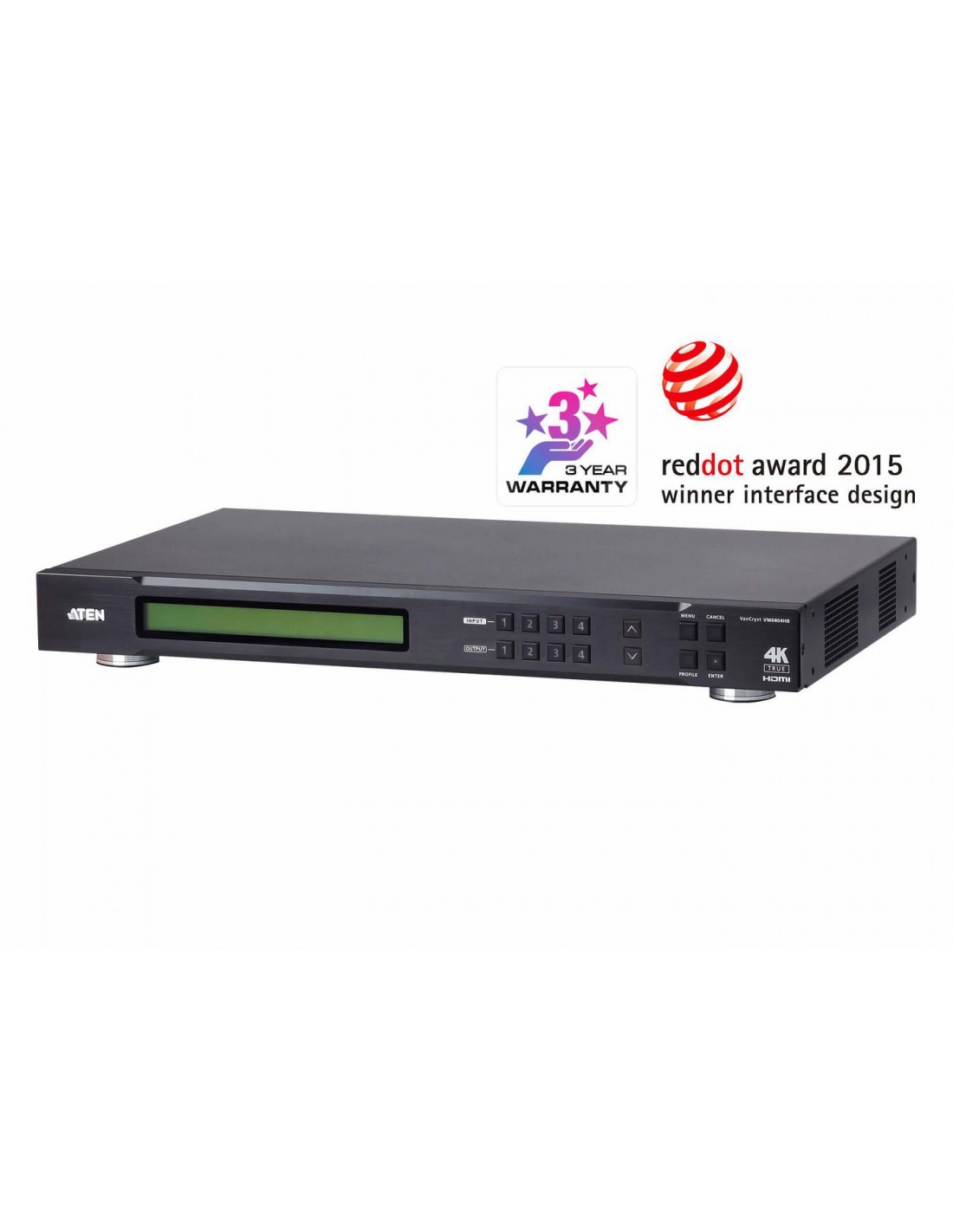

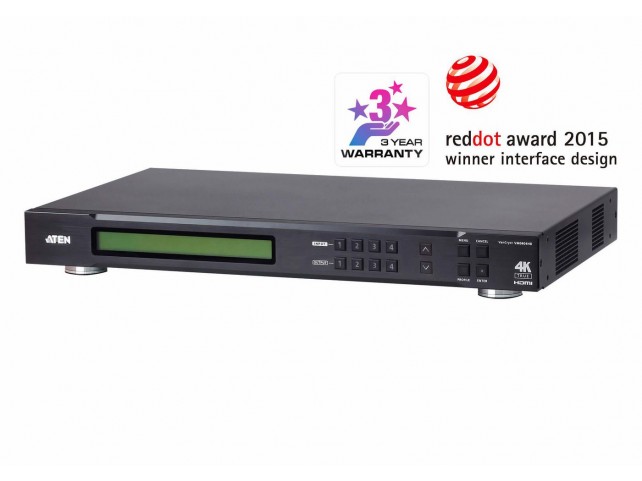

Aten HDMI Martrix Switch 4X4 True 4K
Aten
DS1_VM0404HB-AT-G
Immediatamente Disponibile
884,96 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Multiple Control Methods ? system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Specifiche del prodotto
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 1U |
| Remote control included | Yes |
| Display | |
| Built-in display | Yes |
| Features | |
| 3D | Yes |
| Bandwidth | 600 MHz |
| Data transfer rate | 18 Gbit/s |
| EDID management | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Input impedance | 100 ? |
| Material | Metal |
| Maximum operating distance | 15 m |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 Pixels |
| Output impedance | 100 ? |
| Product colour | Black |
| Product type | AV matrix switcher |
| Rack capacity | 1U |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 3,76 kg |
| Master (outer) case height | 15,3 cm |
| Master (outer) case length | 55,6 cm |
| Master (outer) case net weight | 2,75 kg |
| Master (outer) case width | 24,7 cm |
| Products per master (outer) case | 1 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions | |
| Depth (package,cm) | 55,6 cm |
| Gross Weight (Package, kg) | 3,76 kg |
| Height (package,cm) | 15,3 cm |
| Width (package,cm) | 24,7 cm |
| Packaging content | |
| Cables included | AC |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| User guide | Yes |
| Ports & interfaces | |
| HDMI in | 4 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI ports quantity | 8 |
| Number of HDMI outputs | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Video port type | HDMI |
| Power | |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| AC adapter input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (max) | 17,8 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 2,75 kg |
| Product Depth | 55,6 cm |
| Product Height | 15,3 cm |
| Product Width | 24,7 cm |
| Technical details | |
| Harmonized System (HS) code | 85299097 |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
