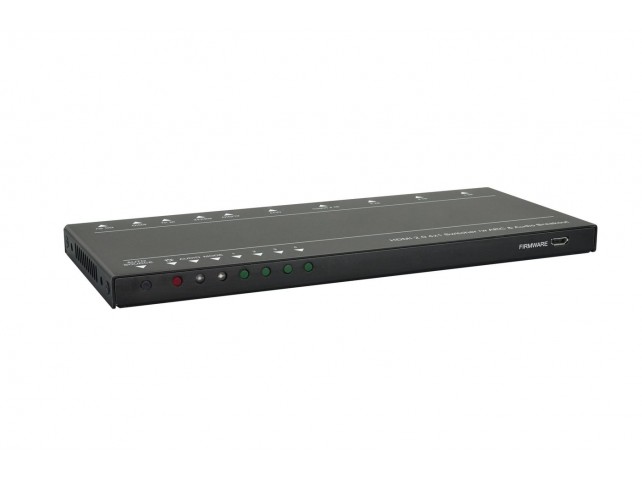

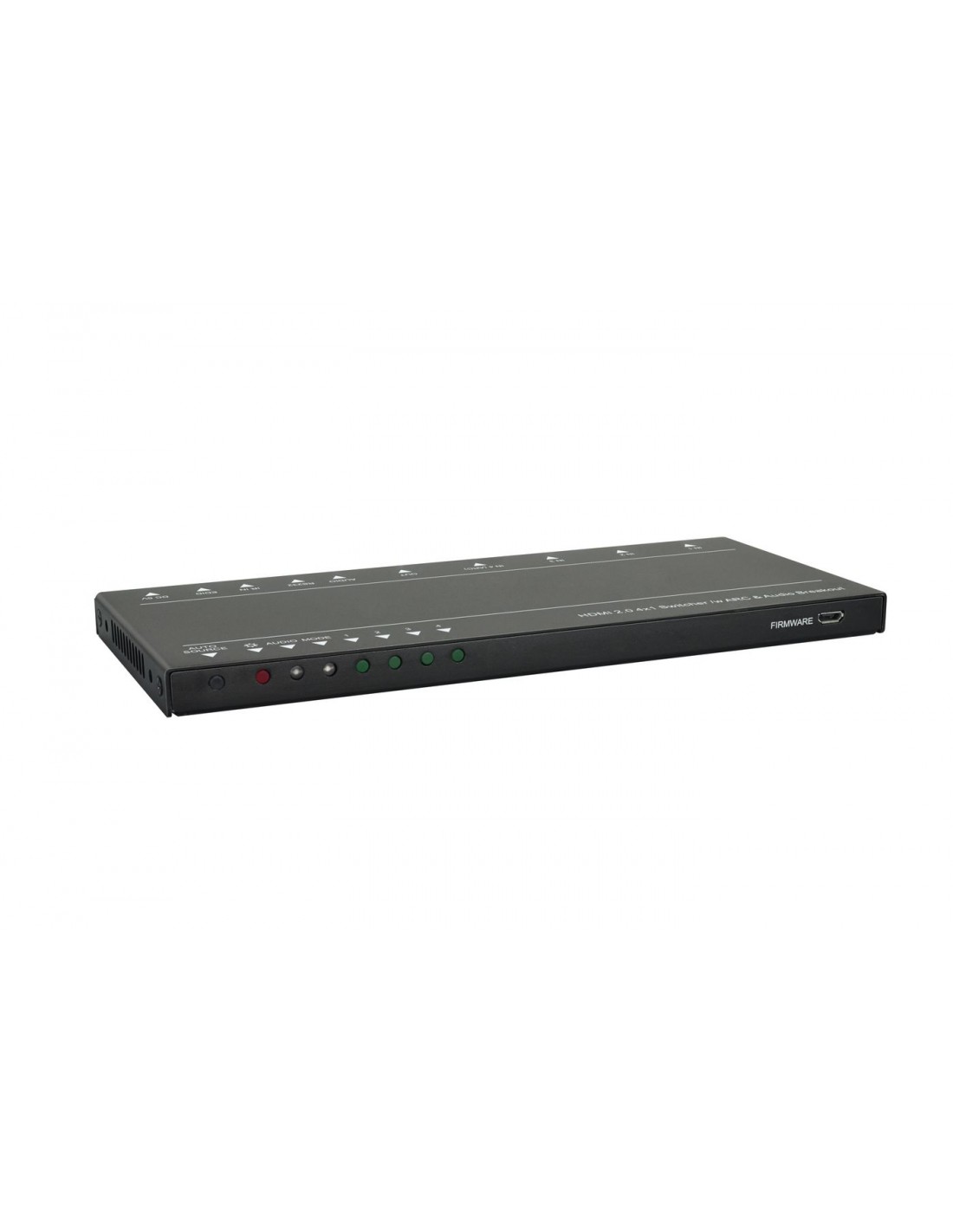

Vivolink HDMI switcher 4x1 4K@60Hz with RS232 control, ARC and
Vivolink
DS1_VLSW141H
Immediatamente Disponibile
210,45 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- HDMI switcher with 4 HDMI inputs and one HDMI out
- Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
- 18Gbps high bandwidth
- Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
- Supports audio return channel (ARC).
- Advanced EDID management: multiple preset and user defined allowed.
- Controllable via RS232 and IR
- Supports CEC
- Seven LEDs to indicate the current operating status and to assist troubleshooting an installation
- RS232 control and audio line out to active speakers
Specifiche del prodotto
| Features | |
| Audio formats supported | PCM |
| Audio output channels | 2.0 canali |
| Bandwidth | 18 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum frame rate | 60 fps |
| Maximum resolution | 3840 x 2160 Pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Remote control type | IR + RS232 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Package dimensions (verified) | |
| Depth Verified | 13,4 cm |
| Gross Weight Verified | 0,564 kg |
| Height Verified | 12,4 cm |
| Width Verified | 23,9 cm |
| Packaging content | |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| HDMI in | 4 |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| S/PDIF out port | No |
| Video port type | HDMI |
| Power | |
| AC input voltage | 100 - 240 V |
| Product dimensions | |
| Net Weight (Product, kg) | 0,18 kg |
| Product Depth | 8,1 cm |
| Product Height | 1,2 cm |
| Product Width | 19,4 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Anno(i) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 194mm x 81mm x 12mm mm |
