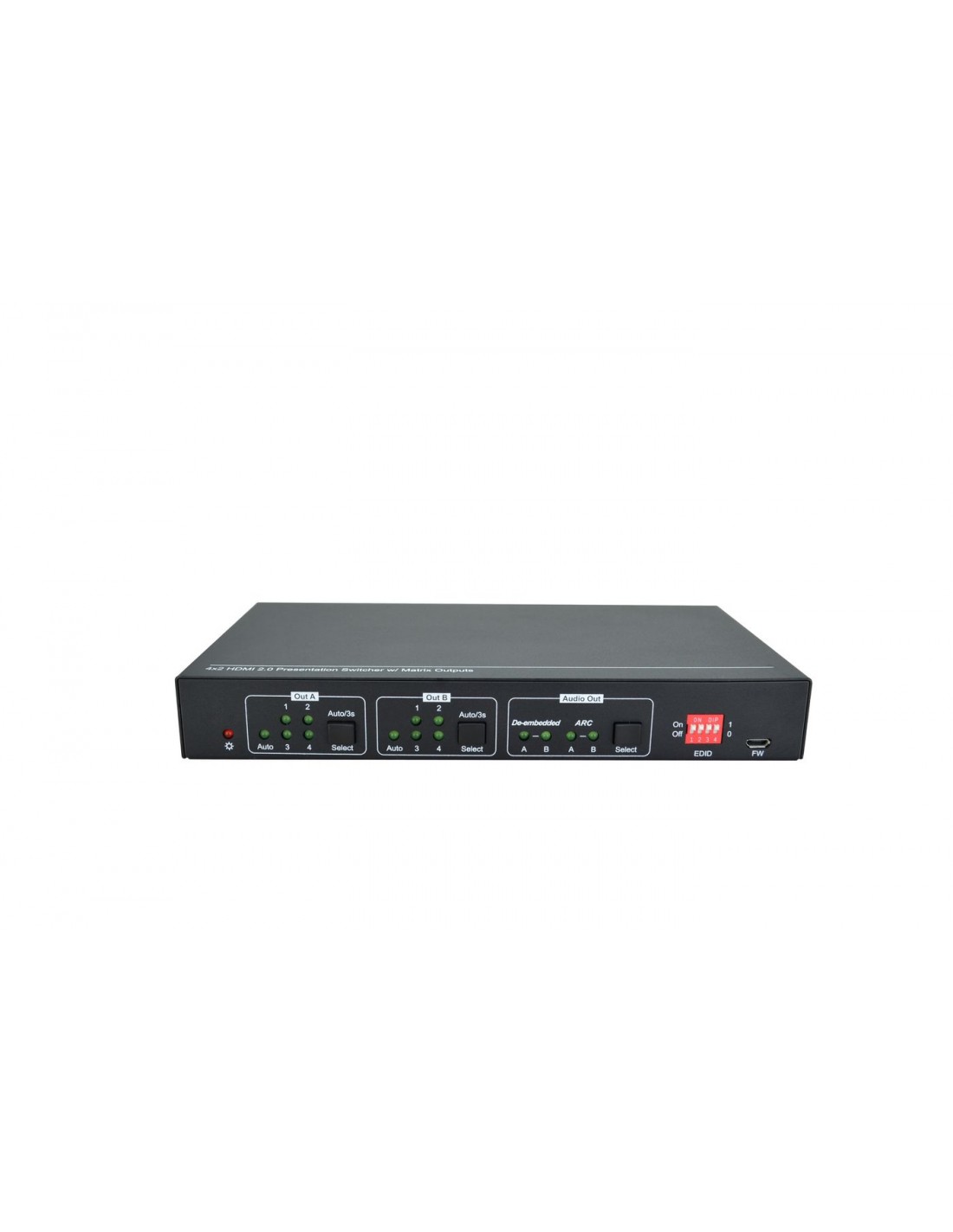

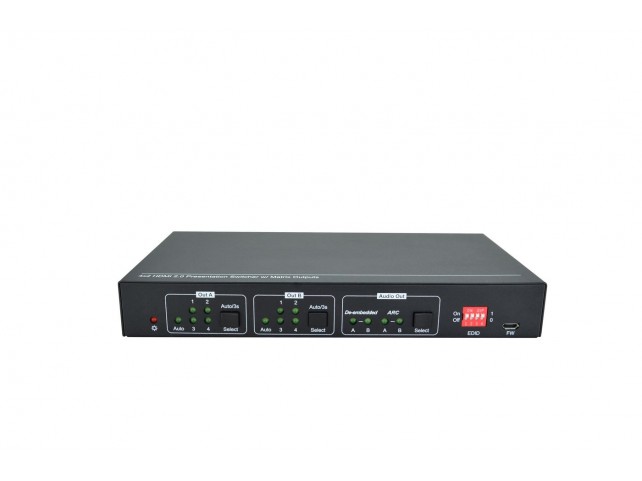

Vivolink HDMI 2.0 4x2, Matrix switcher, .
Vivolink
DS1_VLHDMIMAT4X2RS
Immediatamente Disponibile
328,58 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- 4x2 HDMI presentation switcher with matrix outputs
- HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2
- RS232, IR and WEB GUI control (not telnet)
- 4K to 1080p down-scaling
- SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC
- Smart EDID management
- True 4K matrix switcher that can be controlled via WEB GUI
Specifiche del prodotto
| Design | |
| Control type | Buttons |
| Housing colour | Black |
| Display | |
| Built-in display | No |
| Features | |
| Audio formats supported | PCM |
| Audio output channels | 2.0 canali |
| Bandwidth | 18 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| LED indicators | Yes |
| Maximum frame rate | 60 fps |
| Maximum resolution | 3840 x 2160 Pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Product type | Scaling matrix switcher |
| Remote control type | IR + RS232 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Package dimensions (verified) | |
| Depth Verified | 23,3 cm |
| Gross Weight Verified | 1,05 kg |
| Height Verified | 8,4 cm |
| Width Verified | 26,4 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR sensor |
| Mounting brackets included | No |
| Remote control included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI in | 4 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| HDMI ports quantity | 6 |
| HDMI version | 2.0b |
| Number of HDMI outputs | 2 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| S/PDIF out port | Yes |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 1000 mA |
| Output voltage | 12 V |
| Power consumption (max) | 7,5 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,86 kg |
| Product Depth | 10 cm |
| Product Height | 2,85 cm |
| Product Width | 20 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Anno(i) |
