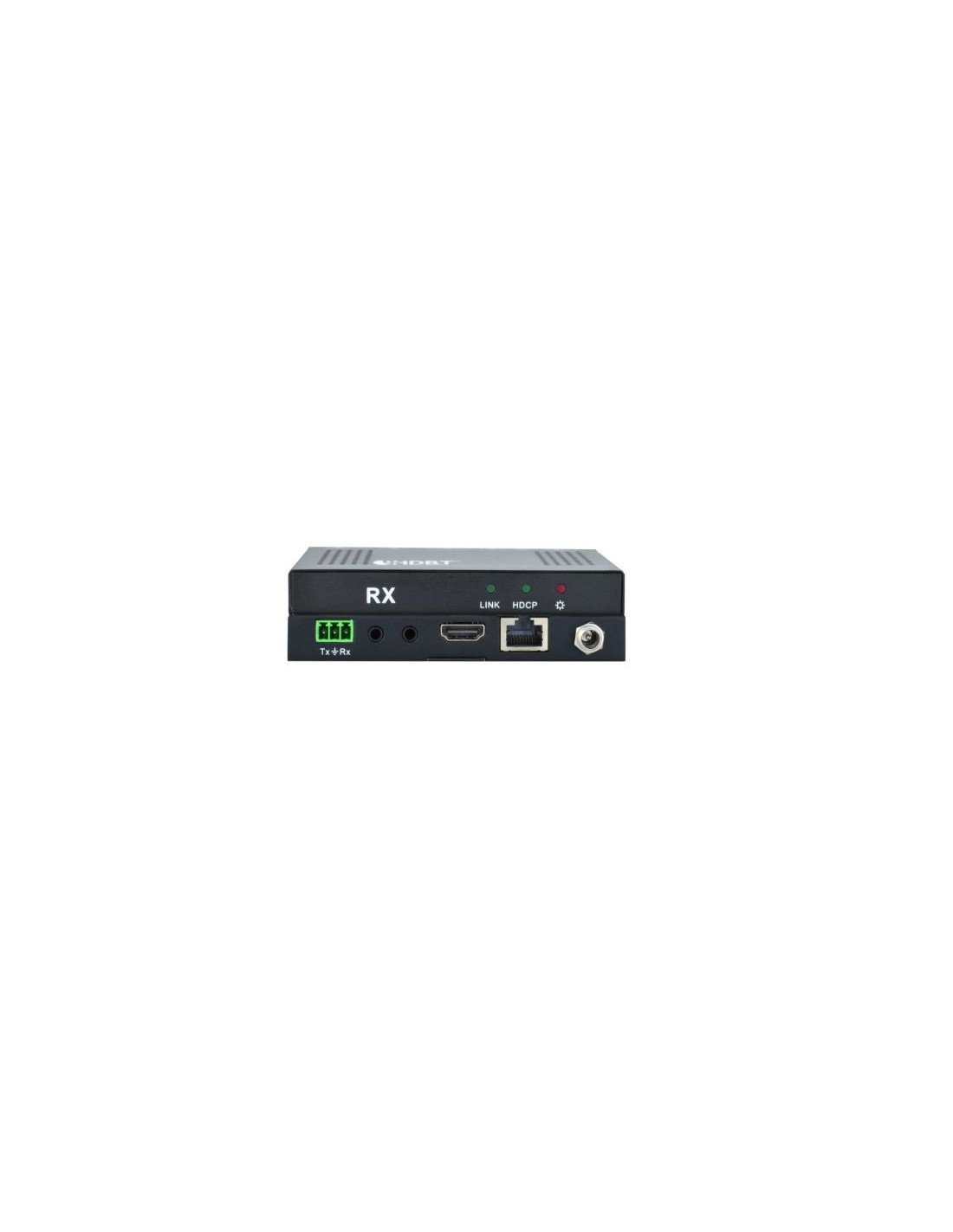

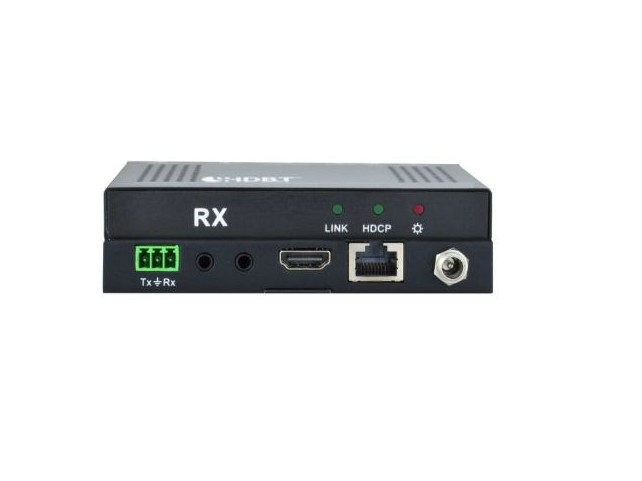

Vivolink HDBaseT Receiver w/ RS232, 70m .
Vivolink
DS1_VL120016R
Immediatamente Disponibile
206,88 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Support up to 4K@60Hz 4:2:0 video signal transmission
- Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
- High Bandwidth: 10.2Gbps
- Compliant with HDMI & HDCP1.4
- Use HDBaseT technology for extended capability and reliability
- Support ARC
- Bi-directional IR pass-through
Specifiche del prodotto
| Features | |
| 3D | Yes |
| Bandwidth | 10,2 Gbit/s |
| Cable types supported | Cat5e, Cat6 |
| CEC pass-through | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 Pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Remote control type | IR + RS232 |
| RS-232 pass-through | Yes |
| Supported video modes | 3840p |
| Type | AV receiver |
| Wall mountable | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 70 °C |
| Package dimensions (verified) | |
| Depth Verified | 15,1 cm |
| Gross Weight Verified | 0,308 kg |
| Height Verified | 8,1 cm |
| Width Verified | 15,2 cm |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | EU, GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
| Power | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operating voltage | 24 V |
| Output current | 1,25 A |
| Power consumption (receiver) (max) | 11 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 0,208 kg |
| Product Depth | 8,4 cm |
| Product Height | 1,62 cm |
| Product Width | 11,5 cm |
| Technical details | |
| Audio support | Yes |
| Vendor information | |
| Brand Name | Vivolink |
| Warranty | 3 Anno(i) |
