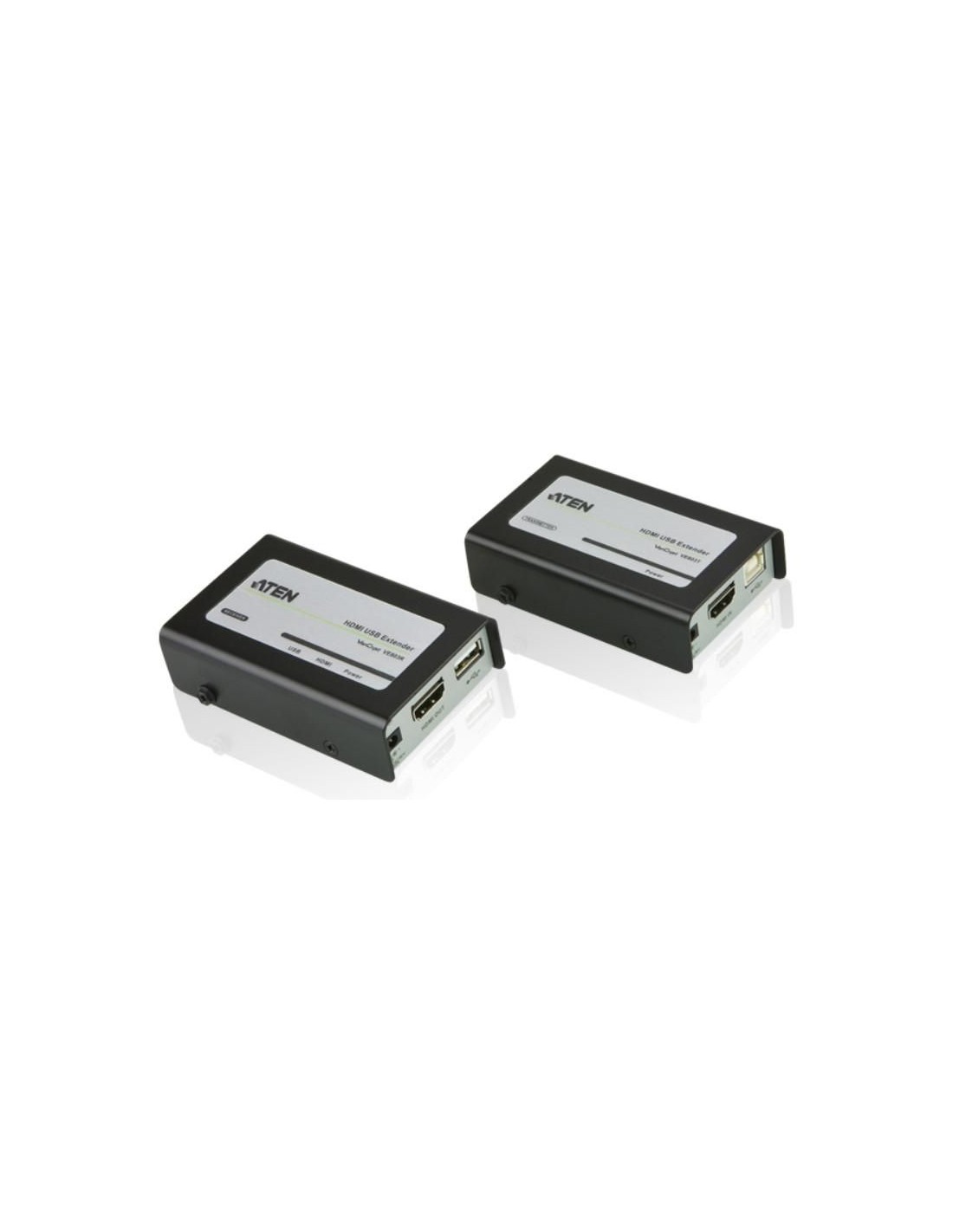

Aten HDMI USB Extender Audio/Video + USB Extender
Aten
DS1_VE803-AT-G
Immediatamente Disponibile
130,34 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Superior video quality ? HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports USB touch panel
- 8 segment equalization adjustment switch optimizes display quality
- Support Dolby True HD and DTS HD Master Audio
- Built-in 8KV/15KV ESD protection
- Transparent USB Support ? supports all USB 2.0 full speed device (up to 12 Mbps)
- Supports wide screen formats
- HDMI (3D, Deep Color); HDCP compatible ? signaling rates up to 2.25Gbits
Specifiche del prodotto
| Features | |
| 3D | Yes |
| Bandwidth | 6,75 Gbit/s |
| Bandwidth | 225 MHz |
| Cable types supported | Cat5e |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Material | Metal |
| Maximum resolution | 1920 x 1200 Pixels |
| Maximum transfer distance | 60 m |
| Product colour | Black |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080i, 1080p |
| Type | AV transmitter & receiver |
| Logistics data | |
| Master (outer) case gross weight | 13,5 kg |
| Master (outer) case height | 33,8 cm |
| Master (outer) case length | 49 cm |
| Master (outer) case net weight | 9,9 kg |
| Master (outer) case width | 31,5 cm |
| Products per master (outer) case | 20 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 16,1 cm |
| Gross Weight Verified | 0,64 kg |
| Height Verified | 6,5 cm |
| Width Verified | 23,8 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Mounting kit | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB connector type | USB Type-A, USB Type-B |
| Power | |
| Operating voltage (receiver) | 5 V |
| Operating voltage (transmitter) | 5 V |
| Power consumption (RX) | 0,75 Watt |
| Power consumption (TX) | 1,04 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,5 kg |
| Product Depth | 23,9 cm |
| Product Height | 16 cm |
| Product Width | 5,9 cm |
| Vendor information | |
| Brand Name | Aten |
| Homepage | http://www.aten.com |
| Warranty | 2 Anno(i) |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Transmitter weight | 160 g |
