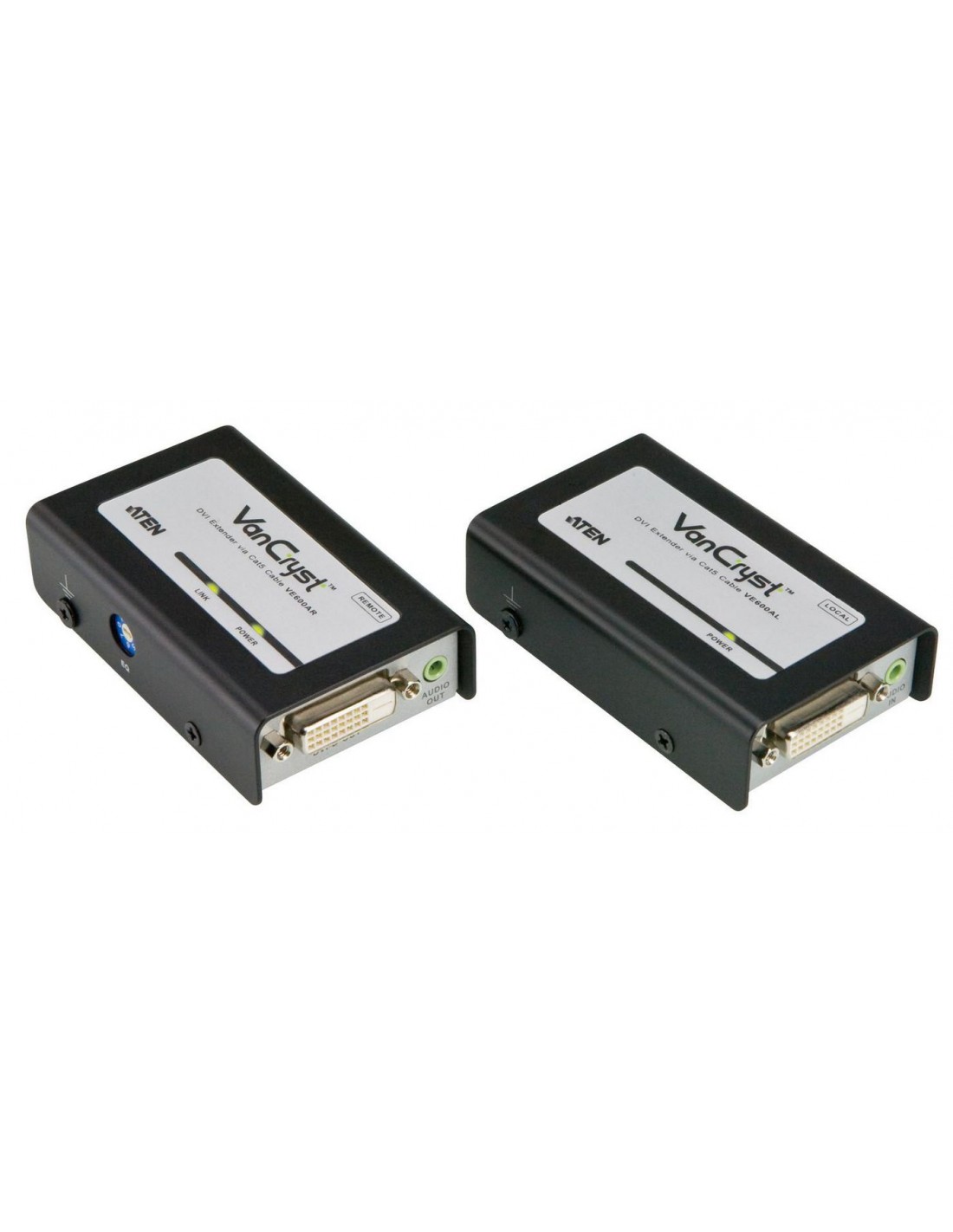

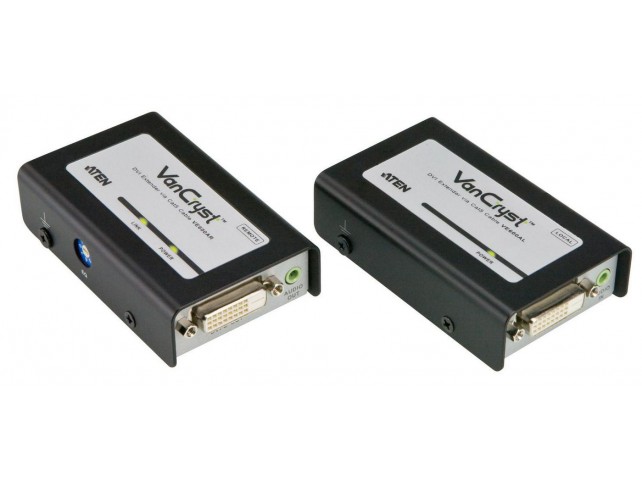

Aten DVI + Audio RJ45 Extender up to 60 meter 1080P
Aten
DS1_VE600A-AT-G
Immediatamente Disponibile
141,92 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Uses Cat 5e cable to extend the distance between DVI source and DVI display device
- Long distance transmission ? up to 60 m
- Audio enabled
- Superior video quality ? up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
Specifiche del prodotto
| Features | |
| Bandwidth | 6,75 Gbit/s |
| Bandwidth | 225 MHz |
| Cable types supported | Cat5e |
| HDCP | Yes |
| Impedance | 100 ? |
| Material | Metal |
| Maximum resolution | 1920 x 1200 Pixels |
| Maximum transfer distance | 60 m |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080i, 1080p |
| Type | AV transmitter & receiver |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | 5A992 |
| Logistics data | |
| Master (outer) case gross weight | 14,02 kg |
| Master (outer) case height | 33,8 cm |
| Master (outer) case length | 49 cm |
| Master (outer) case net weight | 9,8 kg |
| Master (outer) case width | 31,5 cm |
| Products per master (outer) case | 20 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 16,1 cm |
| Gross Weight Verified | 0,654 kg |
| Height Verified | 6,4 cm |
| Width Verified | 23,9 cm |
| Packaging content | |
| AC adapter included | Yes |
| Grounding wire | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging data | |
| Quantity per pack | 2 pz |
| Ports & interfaces | |
| Audio input | 1 |
| Audio output | 1 |
| Connectivity technology | Wired |
| DVI input ports | 2 |
| DVI output ports | 2 |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Video in | 1 x DVI-D |
| Video out | 1 x DVI-D |
| Power | |
| Power consumption (max) | 2,05 Watt |
| Power consumption (receiver) (max) | 0,76 Watt |
| Power consumption (transmitter) (max) | 1,56 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,49 kg |
| Product Depth | 23,9 cm |
| Product Height | 16 cm |
| Product Width | 5,9 cm |
| Technical details | |
| Sustainability certificates | RoHS |
| Vendor information | |
| Brand Name | Aten |
| Homepage | http://www.aten.com |
| Warranty | 2 Anno(i) |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Transmitter weight | 170 g |
