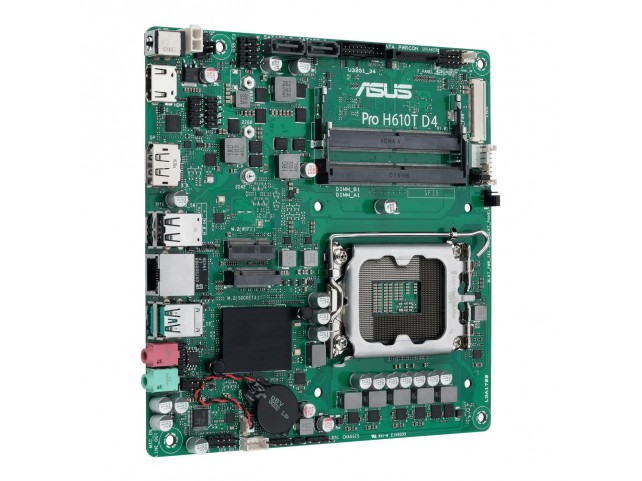

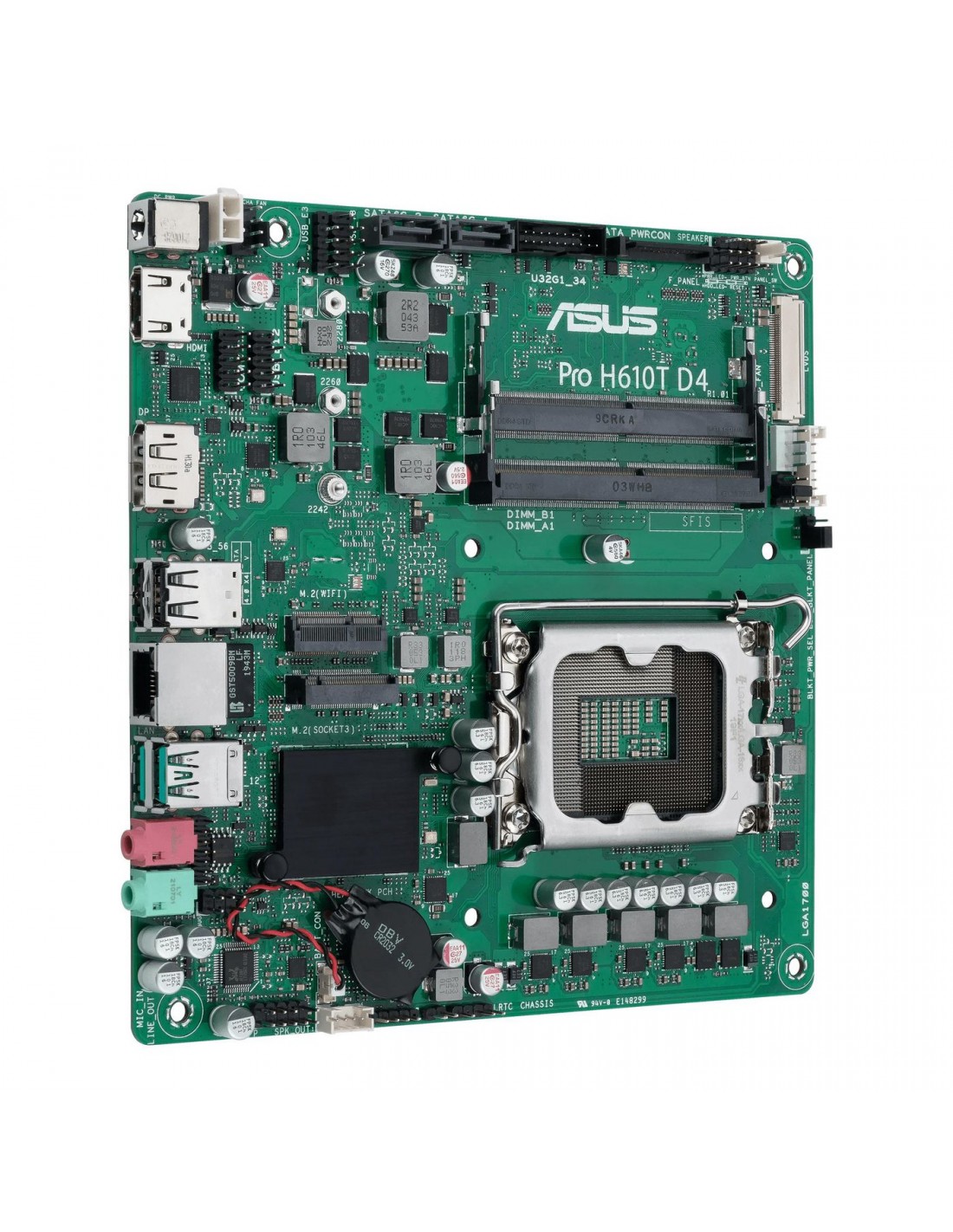

Asus Pro H610T D4-Csm Intel H610 Lga 1700 Mini Itx
ASUS
DS1_90MB1AM0-M0EAYC
Immediatamente Disponibile
244,65 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Mercoledì 30 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Mercoledì 7 Maggio, 2025
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Specifiche del prodotto
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Features | |
| Audio output channels | 7.1 canali |
| Component for | PC |
| Motherboard chipset | Intel H610 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 2 |
| TPM connector | Yes |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Legal Information | |
| UNSPSC Code | 43201513 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Non-ECC | Yes |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3200 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Other features | |
| Weight | 382 g |
| Package dimensions | |
| Gross Weight (Package, kg) | 1,3 kg |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Core? i3, Intel® Core? i5, Intel® Core? i7, Intel® Core? i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product dimensions | |
| Net Weight (Product, kg) | 1 kg |
| Product Depth | 17 cm |
| Product Height | 22,1 cm |
| Product Width | 17 cm |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Vendor information | |
| Brand Name | Asus |
| Warranty | 1 Anno(i) |
