LC/UPC-LC/APC 2m OS2 SINGELMODE DUPLEX OS2 LSZH
LC/UPC-LC/APC 2m OS2 SINGELMODE DUPLEX OS2 LSZH

LC/UPC-LC/APC 2m OS2 SINGELMODE DUPLEX OS2 LSZH

MicroConnect
DS1_FIB447002
Immediatamente Disponibile
22,53 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025

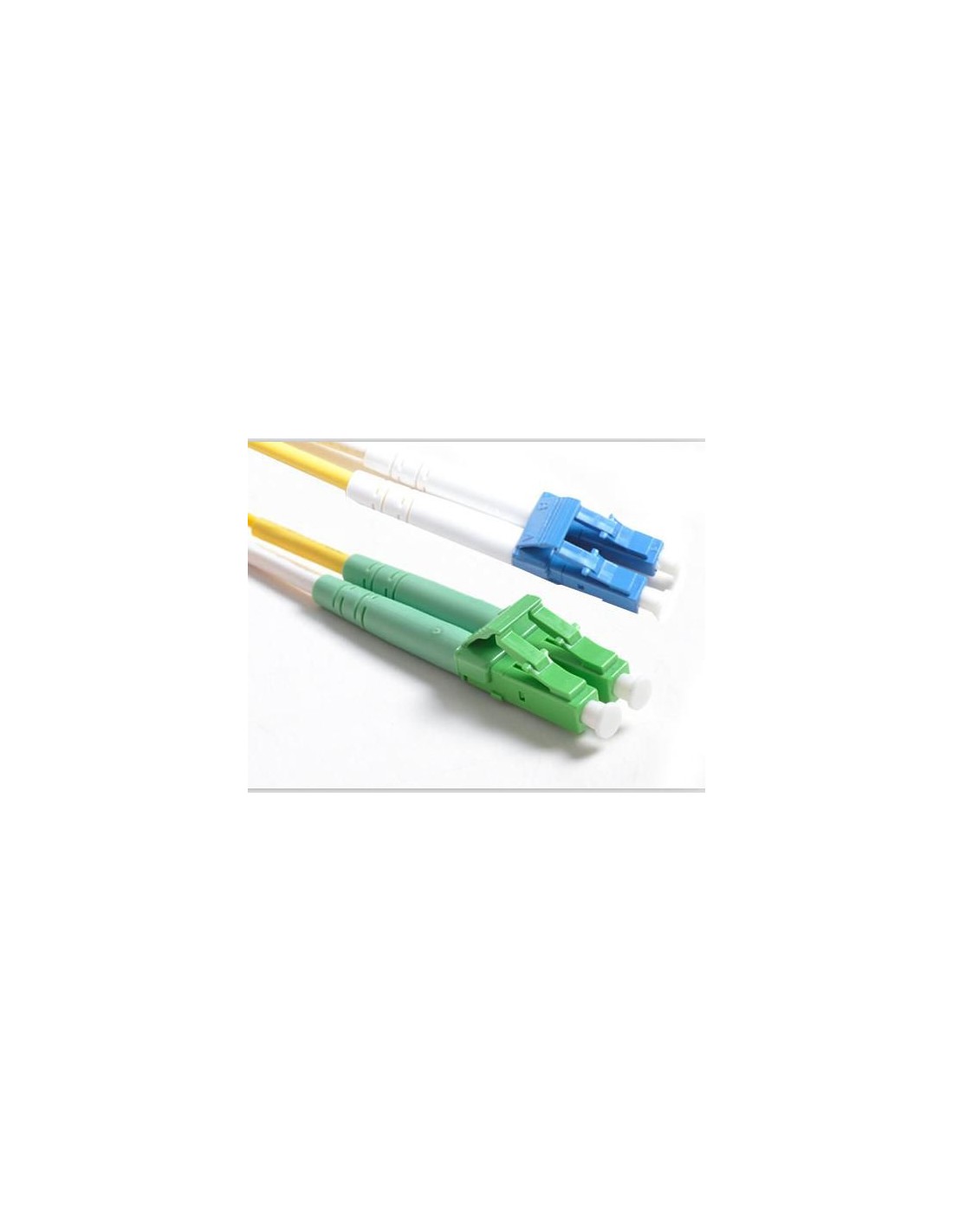

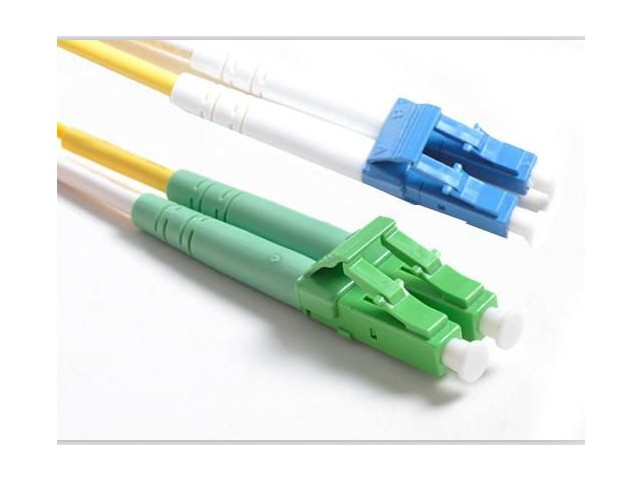

Optical Fibre Cable, LC-LC, Singlemode, Duplex, OS2 (Yellow) 2m

Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.


  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant

Specifiche del prodotto

Features
Cable length2 m
Cladding diameter125 µm
Connector 1LC/UPC
Connector 1 genderMale
Connector 2LC/APC
Connector 2 genderMale
Core diameter9 µm
Fiber mode structureSingle-mode
Fibre optic typeOS2
Halogen-freeYes
Insertion loss0,3 dB
Jacket materialLow smoke zero halogen (LSZH)
Product colourYellow
RoHS complianceYes
Legal Information
EU ECCN CodeN/A
UNSPSC Code26121607
US ECCN CodeEAR99
Operational conditions
Operating temperature (T-T)10 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Other features
Connector(s)LC/UPC-LC/APC
Package dimensions
Gross Weight (Package, kg)0,1 kg
Product dimensions
Net Weight (Product, kg)0,09 kg
Vendor information
Brand NameMicroConnect
Warranty25 Anno(i)
Weight & dimensions
Cable diameter2 mm
