MicroConnect LC/UPC-LC/UPC 150m OM3 MM Duplex...
MicroConnect LC/UPC-LC/UPC 150m OM3 MM Duplex LSZH OD: 2mm, 0.3dB

MicroConnect LC/UPC-LC/UPC 150m OM3 MM Duplex LSZH OD: 2mm, 0.3dB

MicroConnect
DS1_FIB442150
Immediatamente Disponibile
161,68 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025

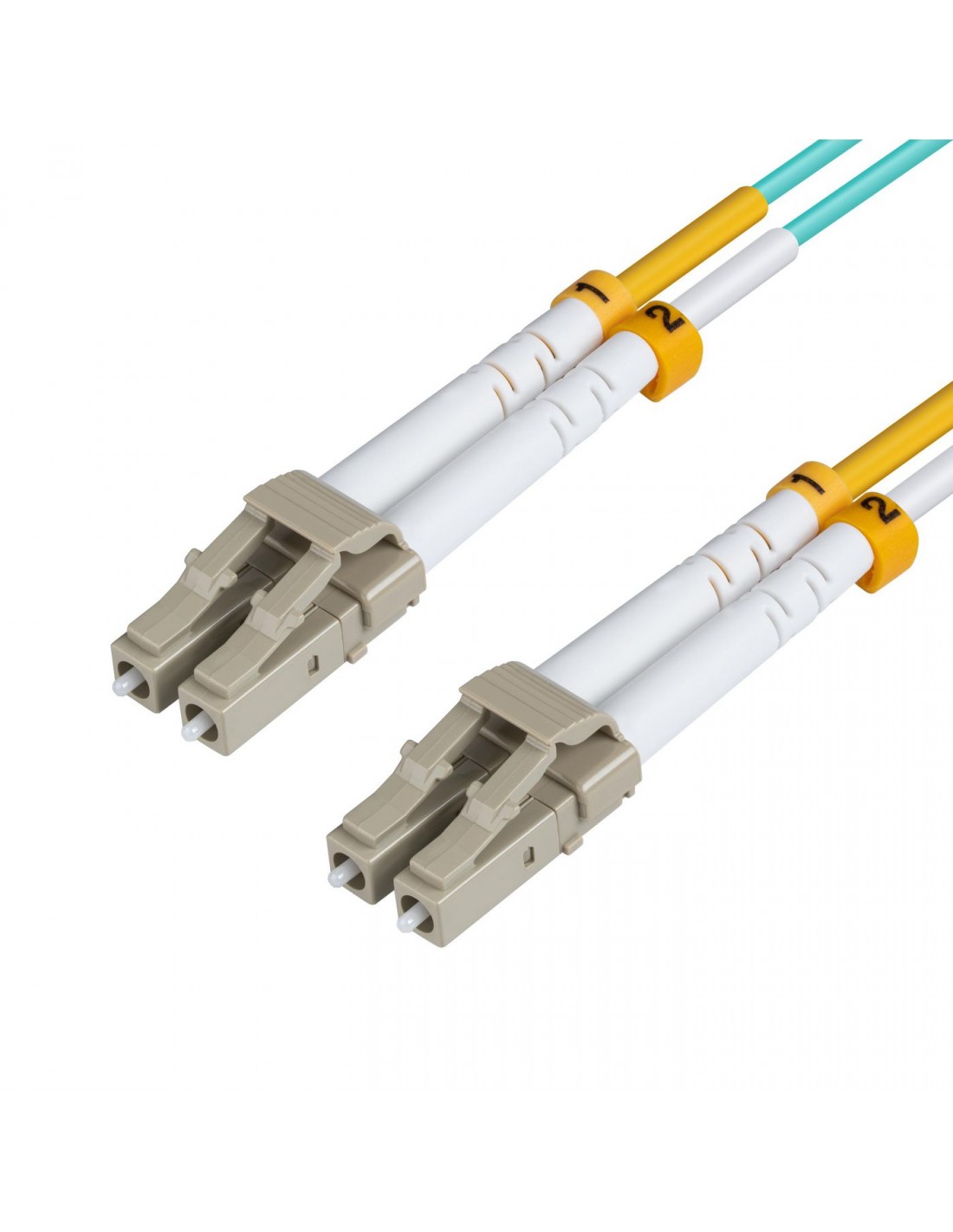

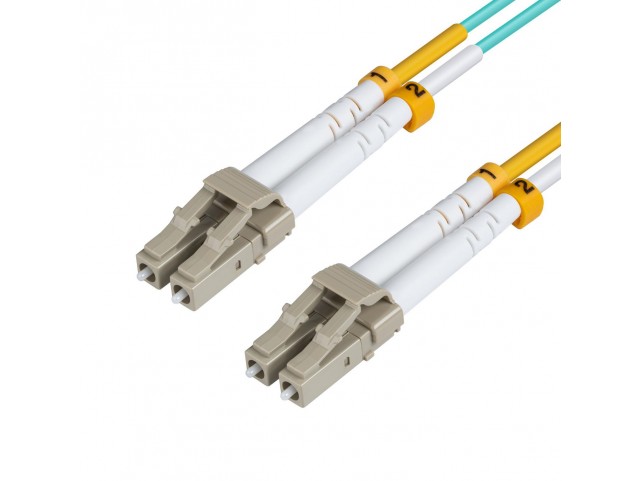

Optical Fibre Cable, LC-LC, Multimode, Duplex, OM3 (Aqua Blue) 150m

The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.


  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant

Specifiche del prodotto

Features
Cable length150 m
Cladding diameter125 µm
Connector 1LC/UPC
Connector 1 genderMale
Connector 2LC/UPC
Connector 2 genderMale
Core diameter50 µm
Fiber mode structureMulti-mode
Fibre optic typeOM3
Full duplexYes
Halogen-freeYes
Insertion loss0,3 dB
Jacket materialLow smoke zero halogen (LSZH)
Product colourBlue
RoHS complianceYes
Legal Information
EU ECCN CodeN/A
UNSPSC Code26121607
US ECCN CodeEAR99
Operational conditions
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Package dimensions
Gross Weight (Package, kg)1,5 kg
Product dimensions
Net Weight (Product, kg)1 kg
Vendor information
Brand NameMicroConnect
Warranty25 Anno(i)
Weight & dimensions
Cable diameter2 mm
