ACS ACR3901-S1 bluetooth Bluetooth 4.0/ USB
ACS
DS1_ACR3901U-S1ACSA
Immediatamente Disponibile
91,26 €
Tasse incluse
- Data di consegna prevista:
-
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025

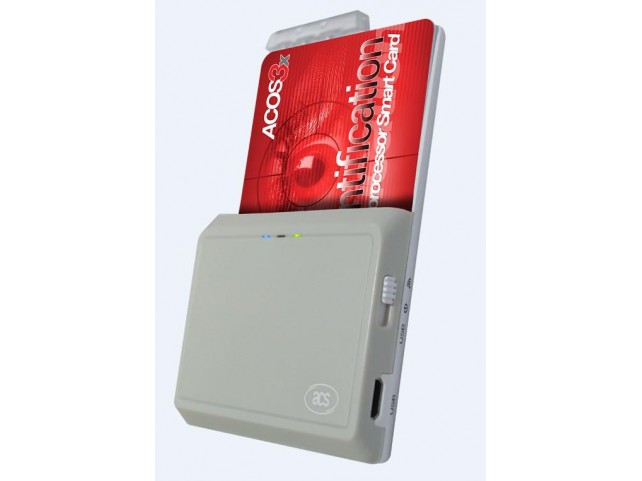

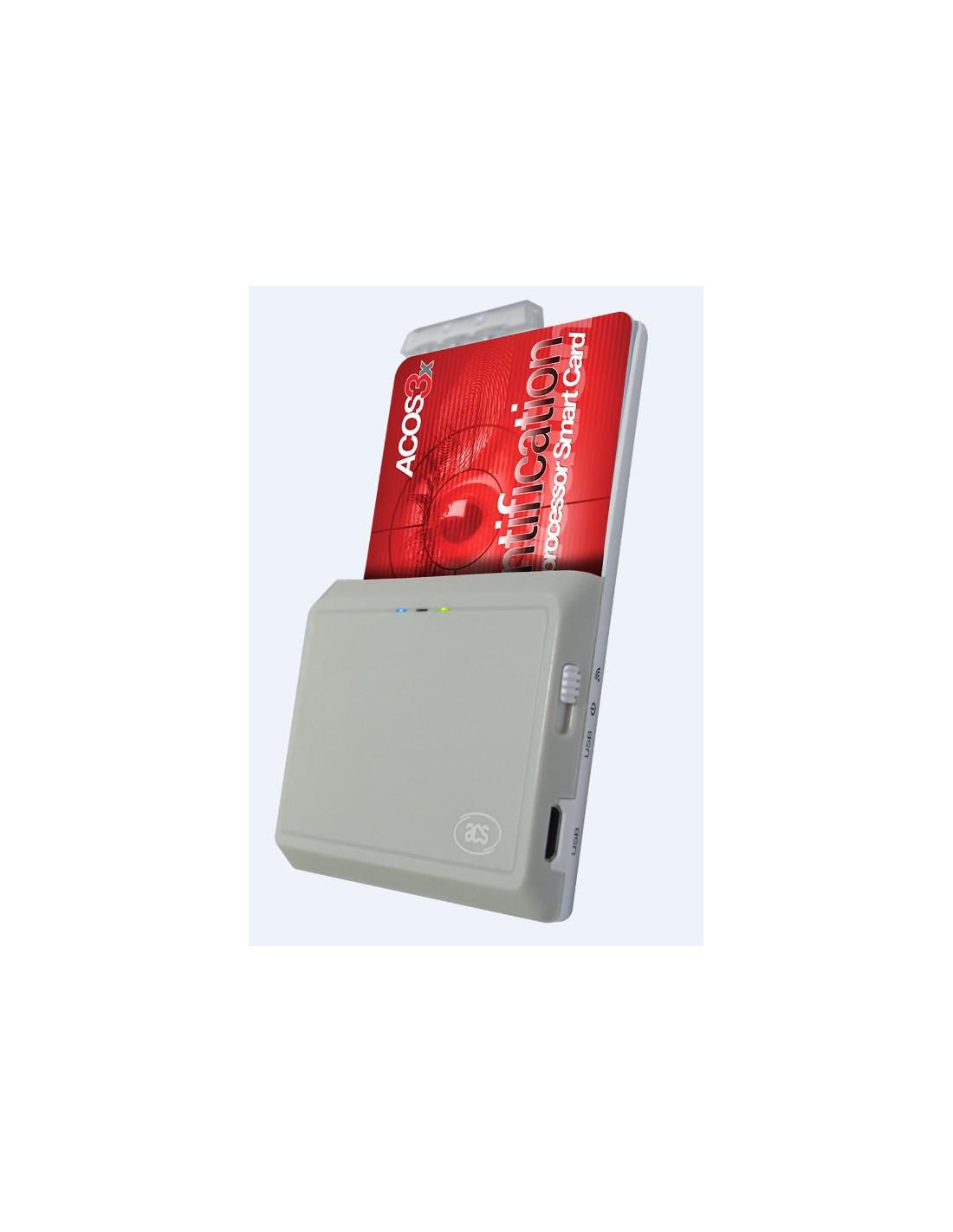

ACR3901U-S1 ACS Secure Bluetooth® Contact Card Reader combines the latest technology in the world of smart card readers with Bluetooth® connectivity. This compact and wireless smart card reader brings together sophisticated technology with fresh design to meet different requirements in various smart card based applications using Bluetooth-enabled devices such as smart phones and tablets.ACR3901U-S1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and most memory cards in the market, including microprocessor cards with T=0 and T=1 protocol. ACR3901U-S1 has both USB Full Speed and Bluetooth 4.0 interface for smart cards. It has a read/write speed of up to 600 Kbps. With its compact design and rechargeable Lithium-ion battery, ACR3901U-S1 is extremely portable and convenient for use anytime, anywhere.ACR3901U-S1 offers in-field firmware upgrade to help the user cope with the fast-changing technology utilized by different applications. With this feature, stakeholders will be able to save valuable cost and time and provide utmost convenience to users.ACR3901U-S1 uses Bluetooth® technology that allows easy integration without employing any physical connection to any terminal. Equipped with AES-128 encryption algorithm, it supports devices running on Android? 4.3 and above, iOS 8.0 and above, Windows®, and Mac OS®.ACR3901U-S1 is PC/SC and CCID-compliant, making it easy to install and use in any computer-based environment. Its drivers are compatible with the Windows® operating system, Linux®, and Mac OS®.With its numerous features, the ACR3901U-S1 is the perfect smart card reader for your smart card solution.
- Bluetooth® Interface
- USB 2.0 Full Speed Interface
- Battery-Powered (incorporates a Litium-ion battery rechargeable through Micro-USB port)
- USB-Powered (through PC-linked mode)
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
- Supports AES-128 encryption algorithm
Specifiche del prodotto
| Design | |
| Cable length | 1 m |
| Product colour | White |
| Features | |
| Compatible products | e-Government Mobile Banking & Payment e-Healthcare Network Security Access Control Public Key Infrastructure e-Purse & Loyalty |
| Frequency | 4,8 MHz |
| Product type | Universal smart card reader |
| Software upgradeable | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85 % |
| Operating temperature (T-T) | 0 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 12,1 cm |
| Gross Weight Verified | 0,062 kg |
| Height Verified | 3,1 cm |
| Width Verified | 12,8 cm |
| Ports & interfaces | |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Compliance industry standards | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V |
| Interface | USB 2.0 |
| Supported protocols | T=0; T=1 |
| Power | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | Built-in |
| Operating voltage | 5 V |
| Power source | Battery |
| Product dimensions | |
| Net Weight (Product, kg) | 0,052 kg |
| Product Depth | 1,2 cm |
| Product Height | 9,4 cm |
| Product Width | 6 cm |
| Sustainability | |
| Certification | EN 60950/IEC 60950 ISO 7816 USB Full Speed Bluetooth® EMV? Level 1 (Contact) PC/SC CCID CE FCC RoHS REACH VCCI (Japan) MIC (Japan) Microsoft® WHQL |
| System requirements | |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Other operating systems supported | Android |
| Windows operating systems supported | Yes |
| Vendor information | |
| Brand Name | ACS |
| Homepage | |
| Warranty | 1 Anno(i) |
