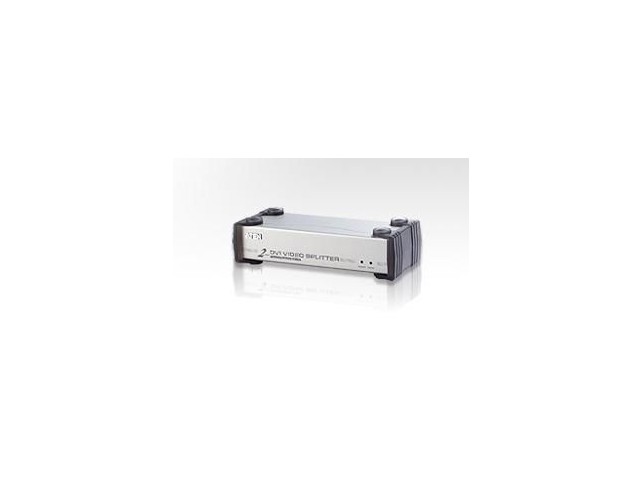

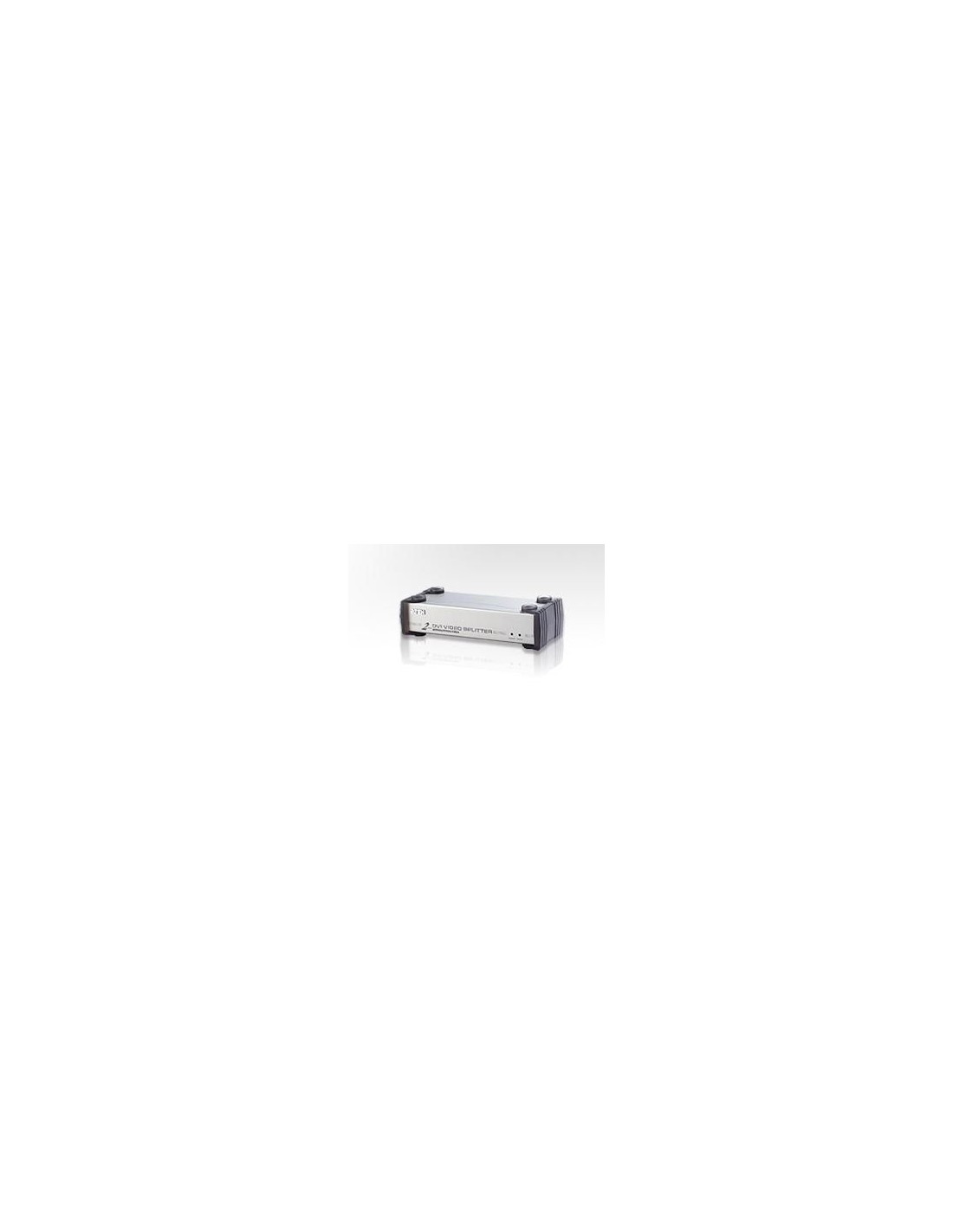

Aten 2 Port DVI Video Splitter 2-Port DVI Audio/Video
Aten
DS1_VS162-AT-G
Immediatamente Disponibile
169,09 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
6.75 Gb/s, 225 MHz, 2x DVI-I, HDCP, 210x88x55.5 mm
VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
- Fully compliant with DVI-Digital and DVI-Analog
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
- Speaker enabled for audio enjoyment
- Cascadable to 3 levels - provides up to 8 video signals
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m
- Installs in minutes
- Maintains highest single link video resolution (up to 1920 x 1200)
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- HDCP Compliant
Specifiche del prodotto
| Features | |
| Bandwidth | 225 MHz |
| HD type | Full HD |
| HDCP | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Mac operating systems supported | Yes |
| Maximum operating distance | 5 m |
| Maximum resolution | 1920 x 1200 Pixels |
| Product colour | Black, Silver |
| Windows operating systems supported | Windows 2000, Windows XP |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 5 kg |
| Master (outer) case height | 19,4 cm |
| Master (outer) case length | 33,6 cm |
| Master (outer) case net weight | 3,625 kg |
| Master (outer) case width | 30 cm |
| Products per master (outer) case | 5 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 17,7 cm |
| Gross Weight Verified | 0,906 kg |
| Height Verified | 7,4 cm |
| Width Verified | 28,9 cm |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging data | |
| Quantity per box | 1 pz |
| Quantity per pack | 1 pz |
| Ports & interfaces | |
| Audio ports quantity | 3 |
| DC-in jack | Yes |
| Video out | 2x DVI-I |
| Video port type | DVI |
| Video ports quantity | 3 |
| Power | |
| AC input voltage | 5.3 V |
| Input voltage | 5.3 V |
| Power consumption (typical) | 2,36 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,73 kg |
| Product Depth | 28,3 cm |
| Product Height | 17,3 cm |
| Product Width | 10 cm |
| Vendor information | |
| Brand Name | Aten |
| Homepage | |
| Warranty | 2 Anno(i) |
