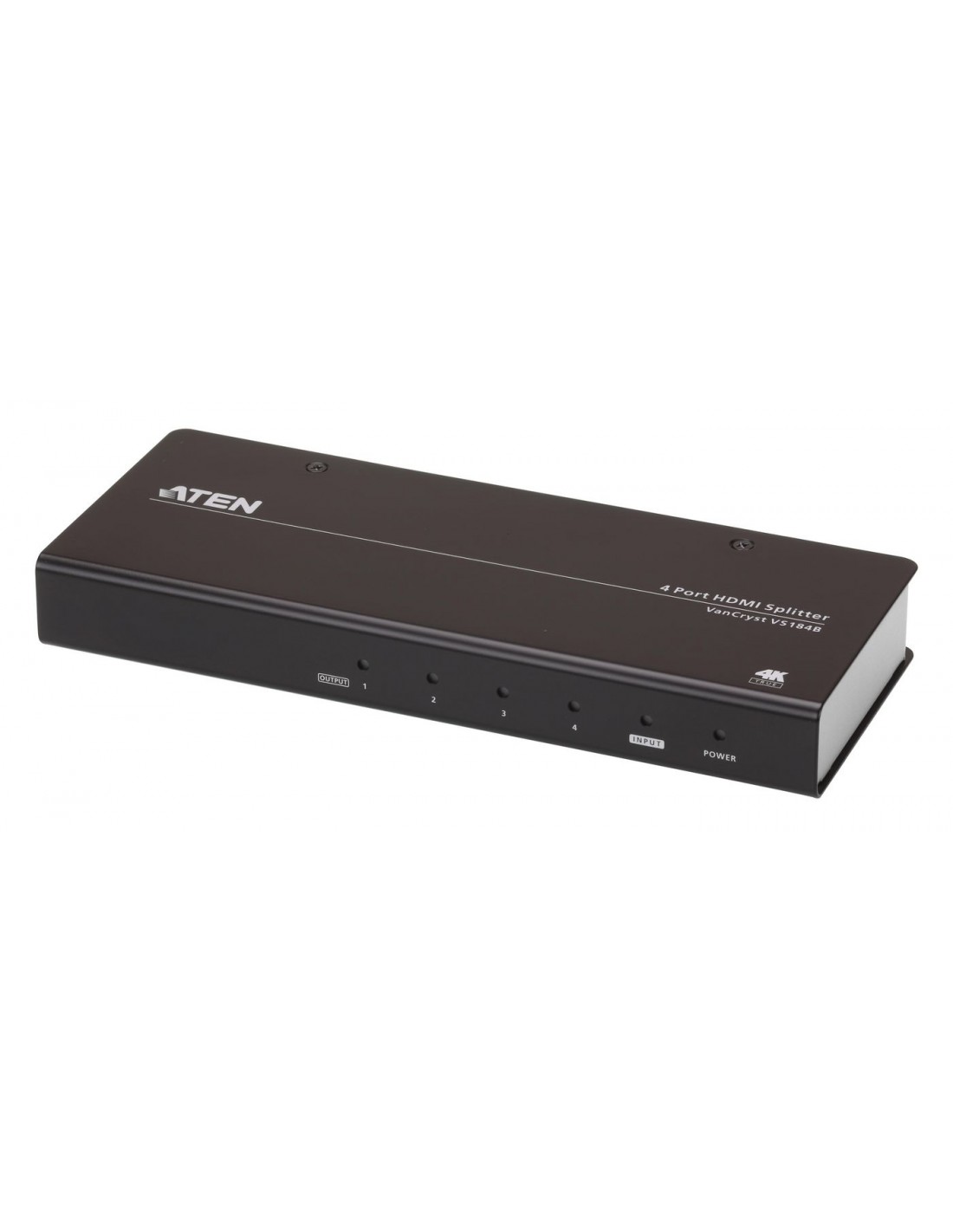

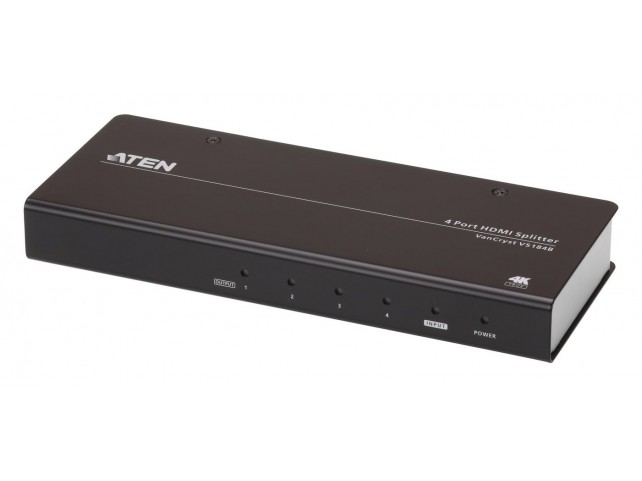

Aten HDMI Splitter 4:4:4), 4-Port True 4K at 60Hz
Aten
DS1_VS184B-AT-G
Immediatamente Disponibile
161,54 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Supports HDR10+
- Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K)
- Max pixel clock rate up to 600 MHz
- Max data rate up to 18 Gbps (6 Gbps per lane)
- LED indication of power status and source devices
- EDID Expert ? Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
- Plug-and-play ? No software installation required
Specifiche del prodotto
| Features | |
| 3D | Yes |
| Bandwidth | 600 MHz |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Housing material | Metal |
| LED indicators | Yes |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 Pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 52161556 |
| US ECCN Code | 5A992 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 17,7 kg |
| Master (outer) case height | 33,8 cm |
| Master (outer) case length | 49 cm |
| Master (outer) case net weight | 13,6 kg |
| Master (outer) case width | 31,5 cm |
| Products per master (outer) case | 20 pz |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Package dimensions (verified) | |
| Depth Verified | 16,2 cm |
| Gross Weight Verified | 0,834 kg |
| Height Verified | 6,4 cm |
| Width Verified | 24 cm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
| Packaging data | |
| Quantity per box | 1 pz |
| Quantity per pack | 1 pz |
| Ports & interfaces | |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| Video out | 4x HDMI |
| Video port type | HDMI |
| Video ports quantity | 5 |
| Power | |
| AC input voltage | 5 V |
| Input voltage | 5 V |
| Power consumption (typical) | 4,84 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0,7 kg |
| Product Depth | 23,9 cm |
| Product Height | 16 cm |
| Product Width | 5,9 cm |
| Vendor information | |
| Brand Name | Aten |
| Warranty | 2 Anno(i) |
