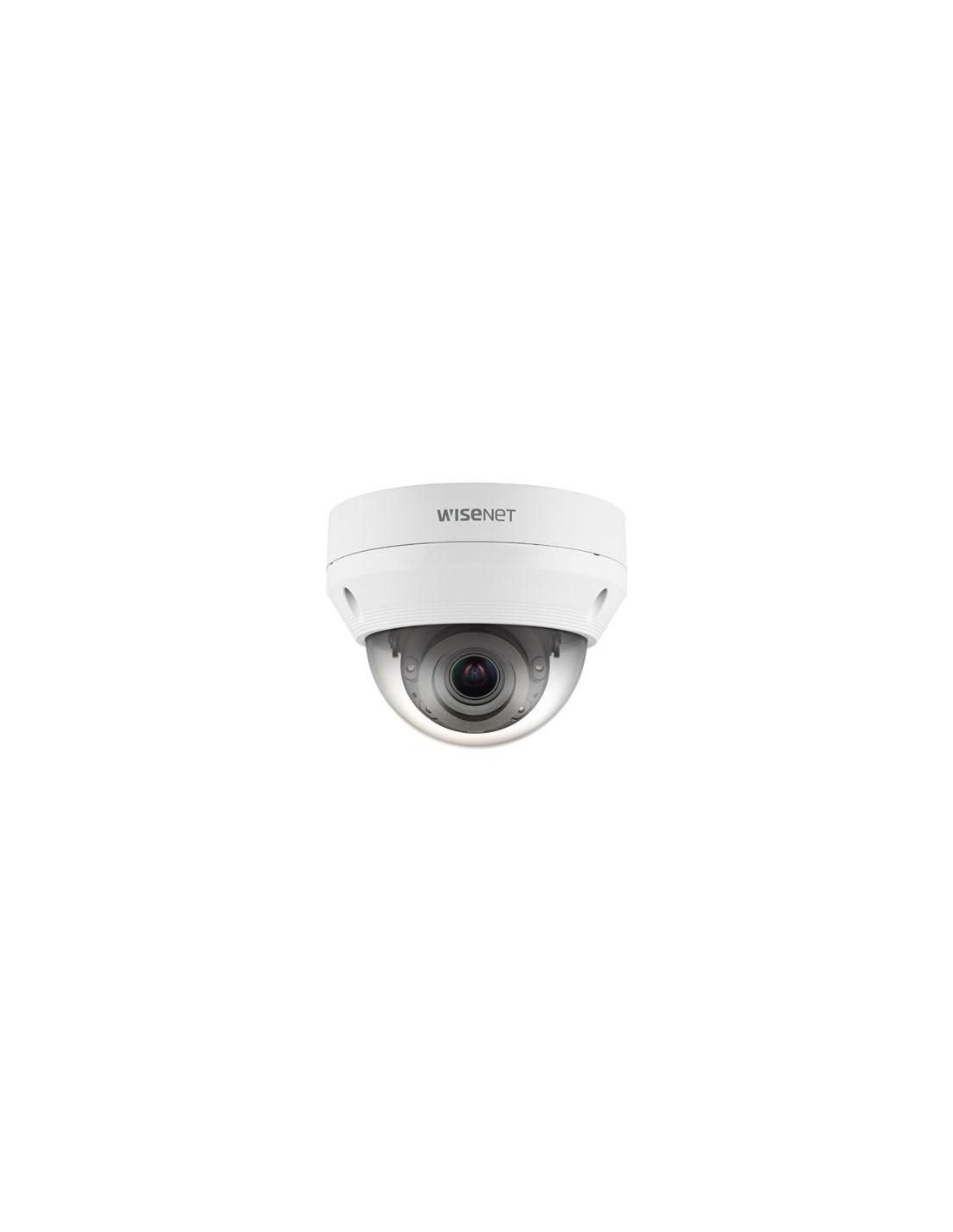

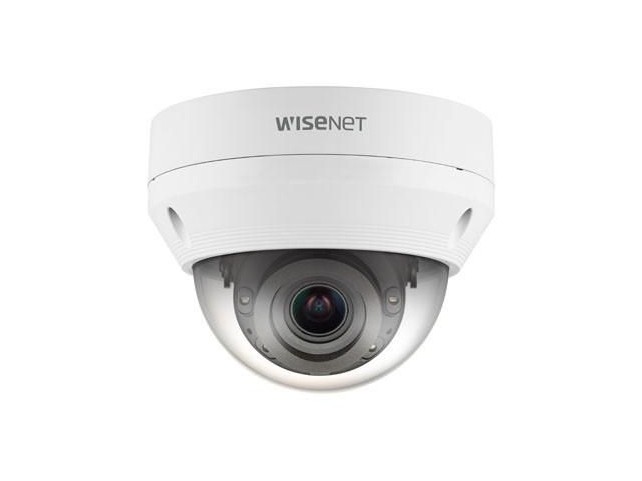

Hanwha Q series 4MP IR Outdoor Vandal Dome
Hanwha
DS1_QNV-7082R
Immediatamente Disponibile
470,11 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Venerdì 2 Maggio, 2025 -
Corriere Standard - Acquista entro e ricevilo Giovedì 8 Maggio, 2025
- Max. 4MP resolution, Up to 30fps
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.2 ~ 10mm (3.1x) motorized varifocal
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Motion detection, Tampering, Defocus detection
- Hallway view (90?/270?), LDC support
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IP66, IK10
Specifiche del prodotto
| Audio | |
| Audio formats supported | ADPCM, G.711, G.726 |
| Sample rate | 8 kHz |
| Voice codecs | G.711ulaw, G.726, G.726-32 |
| Camera | |
| Angle of rotation | 350 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/5 - 1/12000 Second Second Second |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 115.7 ° |
| Lens viewing angle, horizontal | 98.6 ° |
| Lens viewing angle, vertical | 52.3 ° |
| Pan range | 0 - 350 ° |
| Tilt angle range | 0 - 67 ° |
| Viewing angle, diagonal | 115,7 ° |
| Viewing angle, horizontal | 98,6 ° |
| Viewing angle, vertical | 52,3 ° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Design | |
| Form factor | Dome |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Dust resistant, Vandal proof, Water resistant |
| Features | |
| NDAA Compliance | Yes |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Sensor type | CMOS |
| Lens system | |
| Detect distance (tele) | 129 m |
| Detect distance (wide) | 27 m |
| Fixed focal length | 3,2 mm |
| Fixed focus | Yes |
| Focal length range | 3.2 - 10 mm |
| Identify distance (tele) | 13 m |
| Identify distance (wide) | 3 m |
| Maximum aperture number | 1,6 |
| Number of lenses | 1 |
| Observe distance (tele) | 52 m |
| Observe distance (wide) | 11 m |
| Recognize distance (tele) | 26 m |
| Recognize distance (wide) | 6 m |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 6 utente(i) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Wi-Fi | No |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Package dimensions | |
| Depth (package,cm) | 12 cm |
| Gross Weight (Package, kg) | 0,8 kg |
| Height (package,cm) | 16 cm |
| Width (package,cm) | 12 cm |
| Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
| Performance | |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Swedish, Turkish |
| Number of languages | 17 |
| Placement supported | Outdoor |
| PTZ control | No |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Ports & interfaces | |
| Composite video out | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Power | |
| DC output voltage | 12 |
| Power consumption (max) | 11,4 Watt |
| Power consumption (Power over Ethernet (PoE)) | 8,5 Watt |
| Power consumption (typical) | 7,2 Watt |
| Power source type | DC, PoE |
| Product dimensions | |
| Net Weight (Product, kg) | 0,71 kg |
| Product Depth | 10,6 cm |
| Product Height | 13,7 cm |
| Product Width | 10,6 cm |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Anti-flicker | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Defocus |
| IP address filtering | Yes |
| Password protection | Yes |
| Password protection type | User |
| Security algorithms | EAP-LEAP, EAP-TLS, HTTPS, LEAP |
| Video motion detection | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Maximum memory card size | 128 GB |
| Vendor information | |
| Brand Name | Hanwha |
| Warranty | 1 Anno(i) |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 2560 x 1440 Pixels |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Video formats supported | H.264, H.265, M-JPEG |
| Video streaming | Yes |
| Weight & dimensions | |
| Diameter | 13,7 cm |
