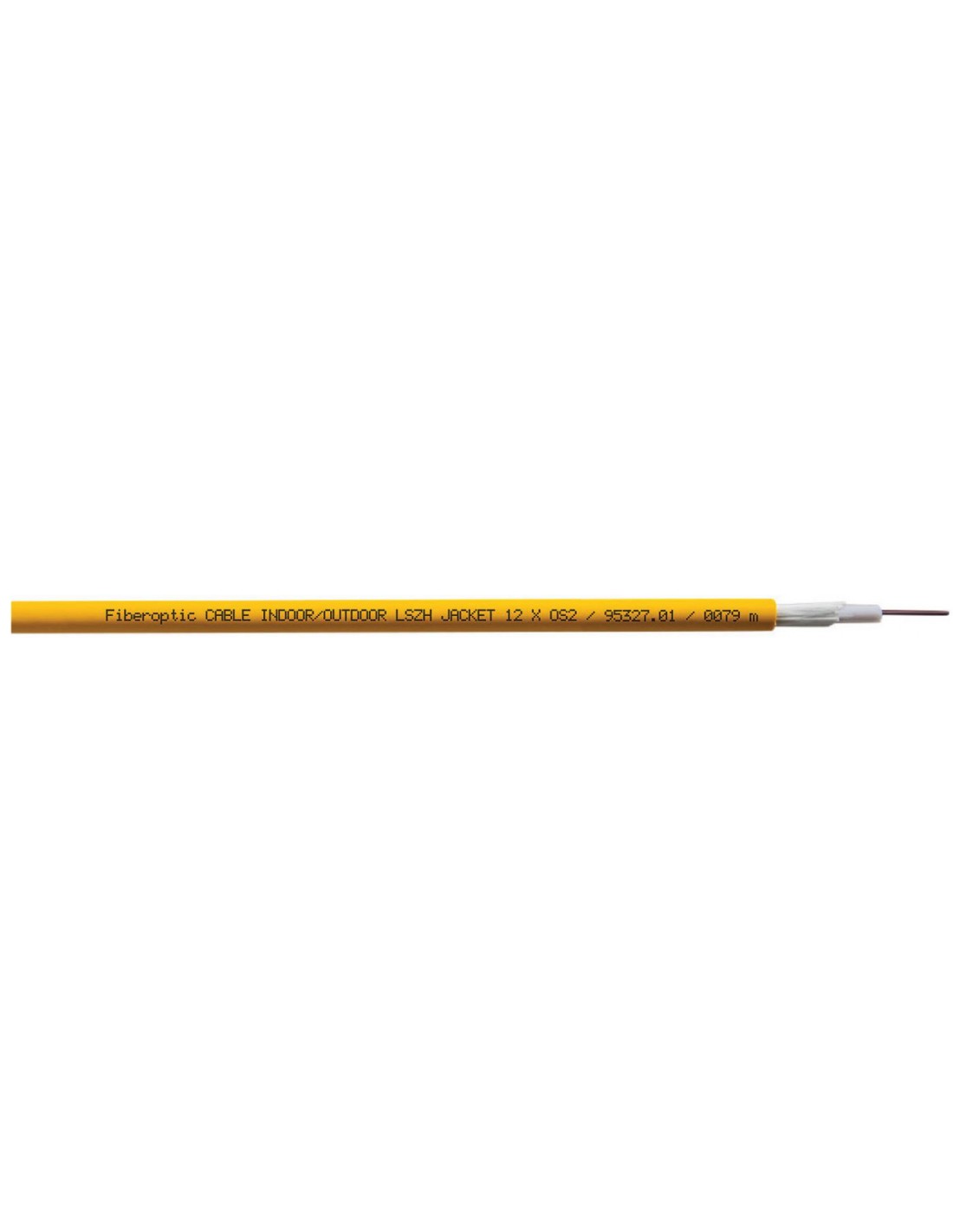

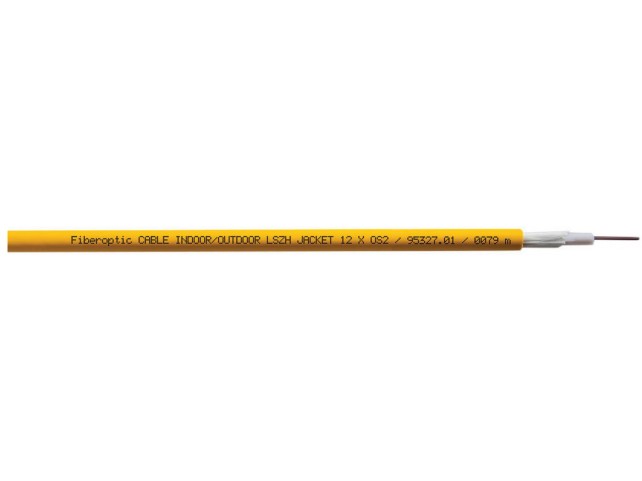

Lanview Fibre cable 12 x 9/125 OS2 LSZH indoor/outdoor 100m
Lanview
DS1_LVO232550-100
Immediatamente Disponibile
171,31 €
Tasse incluse
- Data di consegna prevista:
-
UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025 -
Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025
- Number of fibers: 12
- Fibre size: 9μm
- Color: Yellow
- Usage: Indoor/Outdoor
Specifiche del prodotto
| Features | |
| Cable length | 100 m |
| Cable type | Single mode |
| Certification | ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27 |
| Cladding diameter | 125 µm |
| Compressive strength | 1500 |
| Connector 1 | N |
| Connector 1 gender | No |
| Connector 2 | N |
| Connector 2 gender | No |
| Connector gender | No |
| Connector polish type | PC |
| Core diameter | 9 µm |
| Fibre optic type | OS2 |
| Halogen-free | Yes |
| Harmonized System (HS) code | 85447000 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Product colour | Yellow |
| REACH compliance | Yes |
| RoHS compliance | Yes |
| Wavelengths supported | 1310, 1550, 1625 |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code | 26121607 |
| US ECCN Code | N/A |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Number of optical fibres | 12 |
| Tube diameter | 2,8 mm |
| Package dimensions | |
| Gross Weight (Package, kg) | 4 kg |
| Packaging data | |
| Quantity per pack | 1 pz |
| Product dimensions | |
| Net Weight (Product, kg) | 3,9 kg |
| Technical details | |
| Doesn't contain | Halogen |
| Vendor information | |
| Brand Name | Lanview |
| Warranty | 5 Anno(i) |
| Weight & dimensions | |
| Bending radius | 6 cm |
| Cable diameter | 6 mm |
| Cable weight | 40 kg/km |
