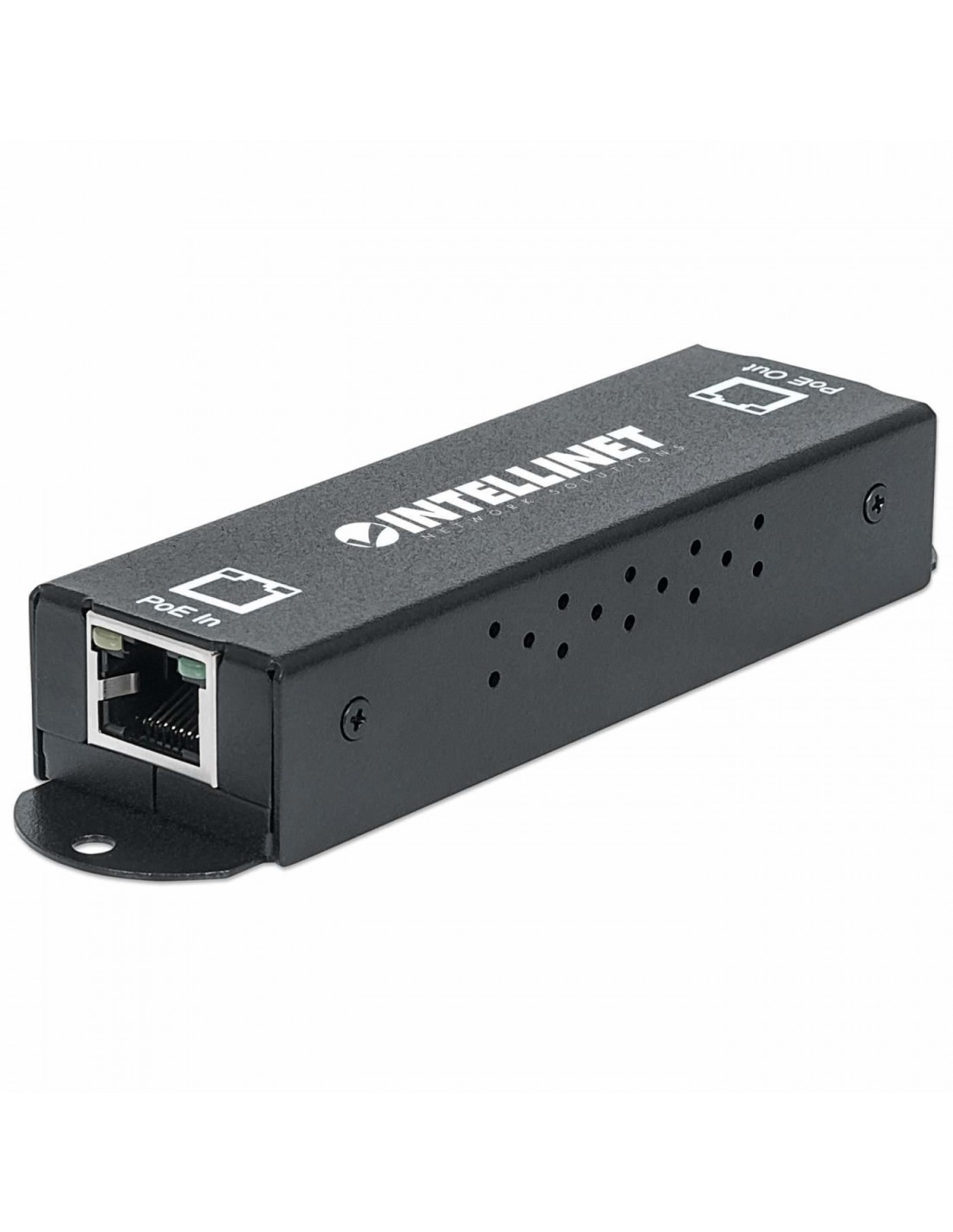

Intellinet 1-Port Gigabit High-Power PoE+ Extender Repeater

Intellinet 1-Port Gigabit High-Power PoE+ Extender Repeater

Intellinet
DS1_560962
Immediatamente Disponibile
164,06 €
Tasse incluse

  • Data di consegna prevista:
  • UPS EXPRESS
    UPS EXPRESS - Acquista entro e ricevilo Giovedì 24 Aprile, 2025
  • Corriere Standard
    Corriere Standard - Acquista entro e ricevilo Venerdì 2 Maggio, 2025


  • Extends an existing PoE connection beyond the 100m (328-ft.) limit
  • Saves time and money by delivering data and power via existing network cables
  • Covers longer distances by cascading multiple PoE extenders (Model 560962) together
  • Daisy-chain up to five PoE extenders for a distance of up to 600 m (1968 ft.)
  • Supports 10/100/1000 Mbps data rates and delivers up to 25 W to a connected PoE device
  • PoE awareness ensures that power is only sent to IEEE 802.3af/at-compliant devices, non-PoE devices only receive data
  • Requires no additional power supply; draws the power directly from the PoE input
  • Compatible to IEEE 802.3at/af-compliant PoE injectors and PoE switches (PSE)
  • Compatible to IEEE 802.3at/af-compliant powered devices (PD)
  • LEDs for PoE and data

Specifiche del prodotto

Features
CertificationFCC Class A, CE, UKCA, NDAA
Housing materialMetal
LED indicatorsYes
Maximum operating distance500 m
Product colourBlack
Logistics data
Harmonized System (HS) code85044095
Network
Cable standardCat5e
Cable types supportedCat5, Cat5e
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10, 100, 1000
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)-10 - 50 °C
Package dimensions (verified)
Depth Verified12 cm
Gross Weight Verified0,178 kg
Height Verified3,6 cm
Width Verified16,3 cm
Packaging content
ManualYes
Number of products included1 pz
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Power
Output power24,6 Watt
Power over Ethernet (PoE) voltage48 V
Product dimensions
Net Weight (Product, kg)0,07799999999999999 kg
Product Depth10,28 cm
Product Height2 cm
Product Width3,1 cm
Technical details
Harmonized System (HS) code85044090
Vendor information
Brand NameIntellinet
Warranty1 Anno(i)
